Working principle:

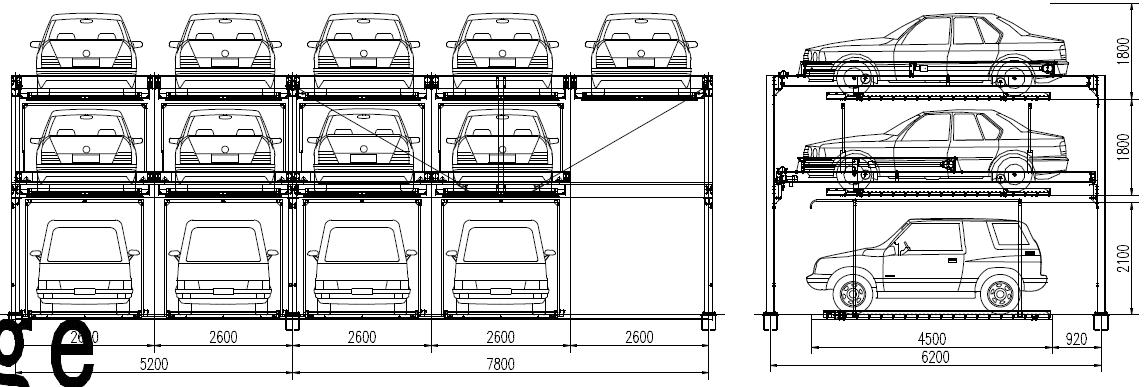

the equipment is designed with 3-levels and multi-rows and each level except the top level is designed with a space as an exchanging space. All spaces can be lifted automatically except the spaces in the first level and all the spaces can slide automatically except the spaces in the top level. When a car needs to park or release, all spaces under this car space will slide to the empty space and forms a lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in easily.



1. Low area coverage and high usage rate of space. the levels and rows may be designed according to the customers' requirements.

2. Outer packing types may be designed as full packing, half packing, simple packing or nude packing according to the customers' requirements.

3. this type of parking system has low cost and low maintenance cost.

4. It operates steadily without noise and with fast operating speed and short parking and releasing time.

5. Multi-channels safety protection and series of safety protection devices for anti-fall, anti-crashing and anti-overloading.



Parameters
