CNC Engraving Machine for Granite

Model	JX-1325S
X, Y Axis working area	1300mmx2500mm
Z Axis working area	200mm
Max. Processing Speed	25m/min
Interface	By cable
Power (not include the spindle)	1840W
Spindle power	4.5KW
Control system	NC studio
Spindle rotating speed	0-24000rpm
command	G code*. u00*. Mmg*plt
Work Mode	step motor (servo is option)
Work voltage	AC380V/50Hz

Suitable Industry

1. Granite, Marble, Bluestone, Sandstone and other stone engraving

2. Hard stone like Granite can be layered engraved to reach 3mm

3. Marble, Bluestone and so on can be engraved to 5mm each time

4. Non-ferrous metal sheet, Such as aluminum veneer, aluminum composite panel, copper, PVC board, acrylic,
insulation materials, wood and composite panels such as sheet processing, cutting, slotting, engraving, milling, etc.

Performance Characteristics

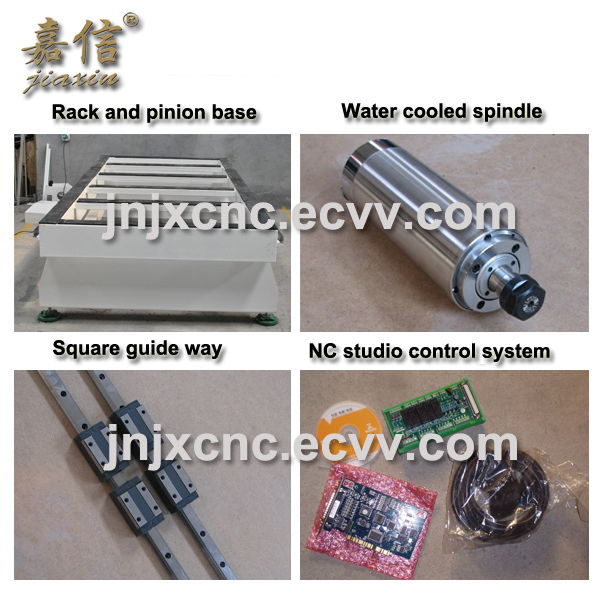

1. Imported Linear Guideway, Double-line Four-row Slider, Undertake Heav-duty, Stable operation,

High precision, Long lifetime.

2. The whole machine is made of welding steel, high stiffness, the back table is Steel sheet, heavy-duty up to 1 ton;
Constant Output Spindle, Heavy cutting capacity, high efficiency.

3. Excellent Compatibility

compatible of TYPE3, ARTCAM, CASTCAM, UCANCAM and other CAD/CAM Design Software.

4. The two-way tool cooling system increase the lifetime of tools.
