| Warranty: | 1Years |
|---|---|
| Model Number: | WZS200 |
| Brand Name: | WUZHOU |
| Place of Origin: | China (Mainland) |
| Applicable Models: | Test high pressure common rail injectors from BOSCH, DENSO, DELPHI and SIEMENS |
| Certification: | ISO CE |
| Power: | 1.5KW |
| Voltage: | 220V Single phase |
| Type: | Engine Analyzer |
| Product Name: | Common Rail Injector Test Bench |
| Function: | Test high pressure common rail injectors from BOSCH, DENSO, DELPHI and SIEMENS |
| Output Power: | 1.5KW |
| Voltage: | 220V Single phase |
| Motor speed: | 0-3000RPM |
| Oil Pressure: | 0-2000 bar |
Quick Details
Specifications

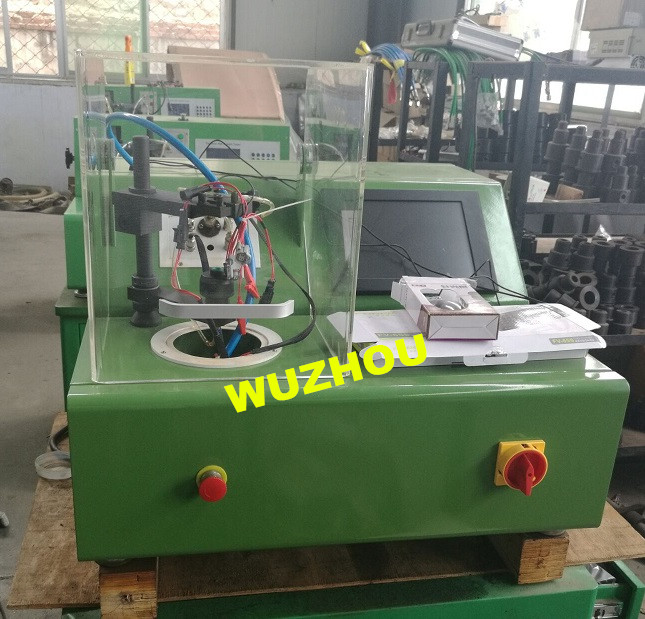

WZS200/EPS200 Common Rail Injector Test Bench is our latest independent researched special device to test the performance of high pressure common rail injectors, controlled by industrial computer.
the oil quantity is measured by Sensor and displayed on computer screen(Electronic fuel delivery system).
All data can be searched and saved. It adopts BOSCH original common rail pump to
Provide 0~2000 bar rail pressure.
the rail pressure can be adjusted automatically, and it also provide pressure overload protect.
It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO.
Advanced technology, steady performance, precise measurement.
CHARACTERISTIC
1. Controlled by industrial computer in real time
2. Oil quantity is measured by sensor and displayed on 10.4" LCD touch screen
3. More than 1000 kinds of injecotors data can be searched and used
4. It is installed BOSCH common rail pump to provide 0~2000 bar
5. Rail pressure can be tested in real time
6. Provide pressure overload protect
7. Pulse width and frequency of the injector can be adjusted
8. Injection time can be set.
9. Protection function of short-circuit.
10. Precise measurement, easy operation, low noise.
11. Frequency converter inside to keep the RPM.
FUNCTION
1. Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO and Piezo injector
2. Test 1 piece of injector.
3. Test the leakage performance of common rail injector.
4. Injection oil quantity and back oil quantity(pre-injection, Idling, emissions, full load)
5. Electronic fuel delivery measuring, automatic testing and detection.
6. Data can be searched and saved.
TECHNICAL PARAMETER
1. Output power: 1.5KW
2. Input voltage: 220V 1phase
3. Motor speed: 0-3000RPM
4. Oil pressure: 0-2000bar
5. Flow measure range: 0-600ml/1000times
6. Flow measurement accuracy: 0.1ml
7. Temperature control range: 40+-2
