The BY-10 portable welding positioner is the lightest  welding postioner. which is suitable for the littel pipe or other workpieces to be well welded.  What important is that you can only buy this kind welding positioner from us, we have the patent right of it.

Main characteristics and advantage of our welding positioner:

    1.The rotation structure is driven by Dc motor, while stepless speed regulation can be achieved.;

   2.The turning structureof worm and gear has the function of self-lock,and the worktablecan be turned steplessly between 0-90 ;

   3.Special design of anti-electromagnetic, which reduce the hign frequency interference of TIG's welding, and can improve the welding quality effectively;

    4.A self-controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder;

    5.The adjustable- welding gun support can be furnished to fix the position of the welding torch; .

    6.The track and air-powered tip can be furnished to achieve the function of self –holding to the workpiece

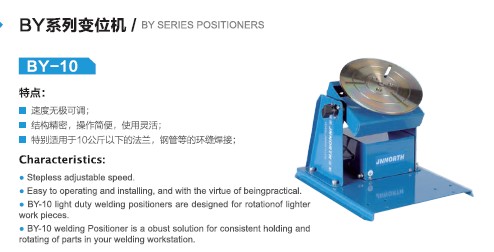

 BY-10 Portable Welding Positioner
1.Capacity:5/10kgs
2.Table dimension:180mm
3.Rotation speed:2-10rpm
Cert:CE,CCC,  OEM
