Ship/Marine Fire Fighting Systems
CCS/ABS/BV etc
Fire Monitor Capacity:160-3600m3/h
Fire Pump:4 Cycle, 8 Cylinder, 24VDC
Cummins Diesel engine
Introductions:
1.Firefighting equipment Approval:ABS,CCS,BV,DNV etc
2.Fire fighting equipment material:stainless steel
3.Capacity of fire monitor/fire pump: 160m3/h,180m3/h,360m3/h,600m3/h, 900m3/h, 1200m3/h, 3600m3/h,etc
4.Firefighting equipment Type:Supply external Fire Fighting Systems, FiFi1/4,FiFi1/2, FiFi 1, FiFi 2, etc
5.Fire Fighting System Engine:Cummins Engine or the demands you need
6.Fire fighting equipment Include:fire pump,fire monitor,with Cummins Engine
7.Firefighting equipment color:red
Technical Parameters for Firefighting Class System
Class Notation |
FiFi1 |
FiFi2 |
FiFi3 | |||
No. of Monitors |
2 |
2 |
3 |
4 |
3 |
4 |
Monitor Capacity (m3/h) |
1200 |
3600 |
2400 |
1800 |
3200 |
2400/ 2500 |
No. of Pumps |
1-2 |
2 |
2-4 |
2 |
2-4 | |
Total
Pump Capacity (m3/h) |
2400 |
7200 |
7200 |
9600 |
9600/ 10000 | |
Throw
Length (m) |
120 |
180 (from bow) |
150 |
180 (from bow) |
150 | |
Throw height (m) |
45 |
110 at 70m |
70 |
110 at 70m |
||

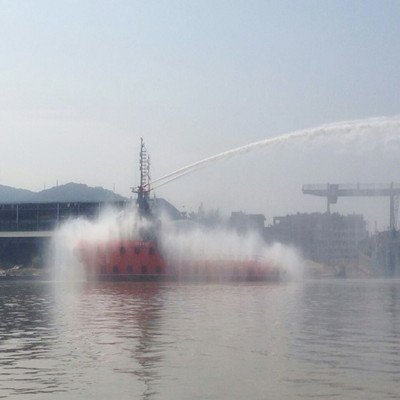

1.FiFi Class 2 System7200m3/h
Diesel Engine Driven
Fire Pumps: 2X3600m3/h
Fire Monitors:4X1800m3/h@150m,
Remote Control System
2.FiFi Class 1 System2400m3/h
Diesel Engine Drivenor Electric Motor Driven
Fire Pumps: 2X1200m3/h or one 2400m3/h
Fire Monitors:2X1200m3/h@120m
Remote Control System
3..FiFi 1/2 System
Diesel Engine Driven or Electric Motor Driven
Fire pumps: 1200m3/h
Fire Monitors:2X600m3/h@120m or1X1200m3/h@120m
Remote Control System
4.None Classed Fi-Fi System
Diesel Engine Drivenor Electric Motor Driven
Fire pumps:2X300m3/h@145m
Fire Monitors:2X300m3/h@85m
5. None Classed Fi-Fi System
6.Fire Pump Unit, fire pump Capacity: 4200m3/h,3600 m3/h, 2400 m 3/h, 1800 m3/h, 1200 m3/h, 600 m3/h, 300 m3/h,250 m3/h,ect
Certificate: CCS BV ABS DNV and other Class
Certificate: CCS BV ABS DNV and other Class
7. Fire monitor
Including fire water monitor, foam monitor, powder monitor with Electric/hydraulic romote control and hand whell
Remark:Designated the best solution for you,according to your requirements. above just for yr guidence.
If you need this products for ship,pls provide the below information for external Fire Fighting Systems
1. Capacity of the Fire monitor for this Fire Fighting Systems (m3/h)
2. Fire pump Capacity for Fire Fighting Systems(m3/h)
3.Need the diesel Engine for fire pump
4.Any special brand demands for diesel fire pump engine
