| Item Type: | Downlights |
|---|---|
| Light Source: | LED |
| Brand Name: | EWIN |
| Place of Origin: | China (Mainland) |
| Model Number: | EW-OCL-COB-26W |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(℃): | |
| CRI (Ra>): | 82 |
| Lamp Luminous Efficiency(lm/w): | 100 |
| Lamp Luminous Flux(lm): | 2400-2600 |
| Lamp Power(W): | 26 |
| Input Voltage(V): | 100-240vAC |
| LED Light Source: | COB |
Quick Details
Specifications
Specifications of LED downlight
1.Output: 2400-2600lm
2.CRI: >82
3.Rotatable: 360 degree
4.Dimmable:Triac or Dali
5.Certificates: CE/RoHS/SAA/SASO
2.CRI: >82
3.Rotatable: 360 degree
4.Dimmable:Triac or Dali
5.Certificates: CE/RoHS/SAA/SASO
Gimbal downlight:10w,15w,20w,26w
180° rotatable and 360° rotatable is optional

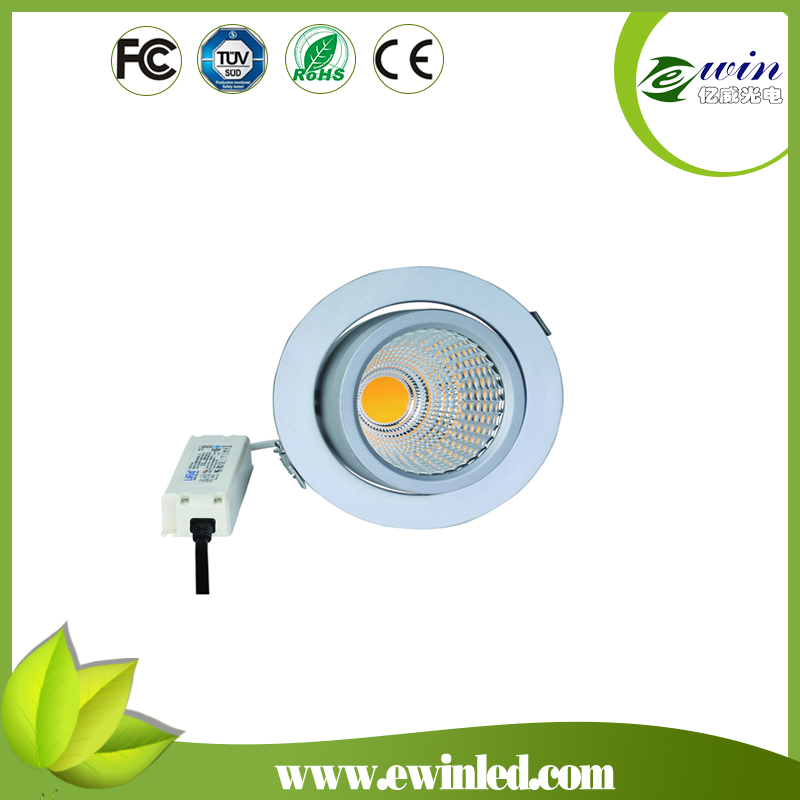

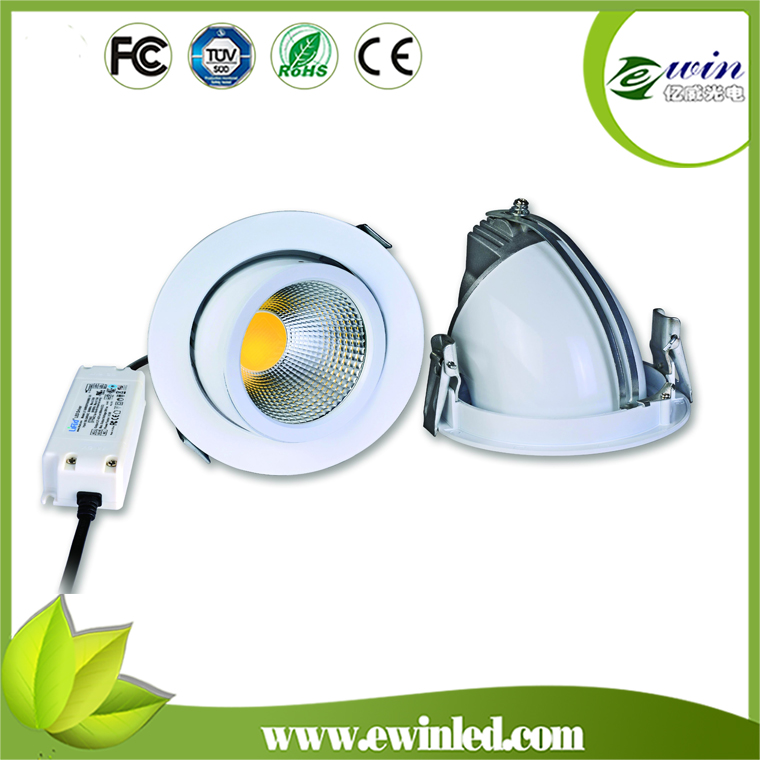

26W 360 degree rotatable COB LED Downlight
Detail descriptions:
1.Product features:
(1)LED Power: 26W.
(2)Lamp Consumption:30W.
(3)Output: 2400-2600lm.
(4)Input voltage:100-277v AC, 50-60Hz
(5)Beam Angle:30°/60°
(6)CRI:> 80.

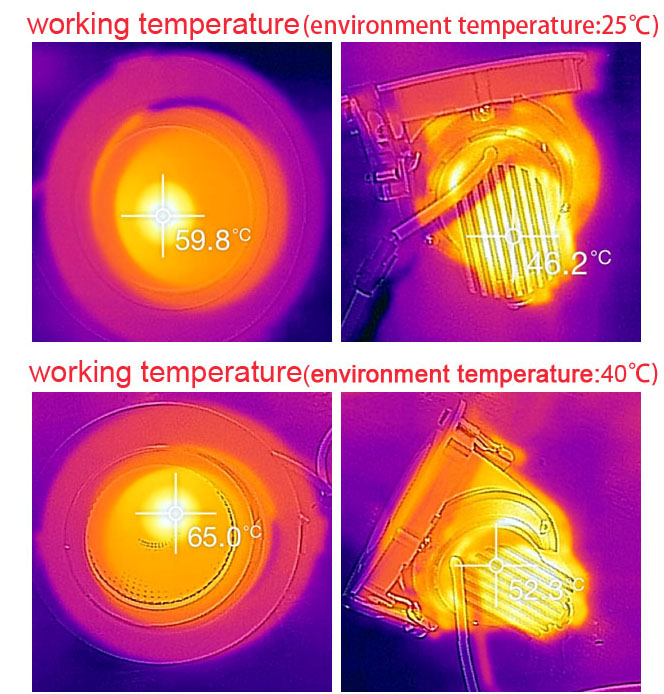

(7)Working Temperature:-40°C-45°C.
(8)Storage Temperature: -25°C-65°C.
(9)Color of housing: white, black.
(10)Life span: 50,000+hrs.
(11)Certificate: CE/RoHS/SASO/SAA
(12)Warranty: 3 years.
2.COB Parameter:
(1)PCB: Ceramic.
(2)Chip Brand: Epistar 10*23.
(3)Output: 2400-2600lm.
(4)Chip Qty: 420 pcs.
(5)CRI> 82.
(6)Voltage:30-40vDC
(7)Current: 700-750mA.
3.Driver Parameter:
(1)Brand: Lifud (LED Friend).
(2)Input:100-277v AC.
(3)Output: 30-40vDC, 700mA.
(4)Power effect: 0.9-0.98.
(5)Power Efficiency: 86%
(6)Certificate:EMC/TUV/UL/SAA
Dimmable: Triac or Dali is available.
Meanwell LPF-40 is optional.
Data Sheet:
| Part No. | Color | CCT | Output | Size |

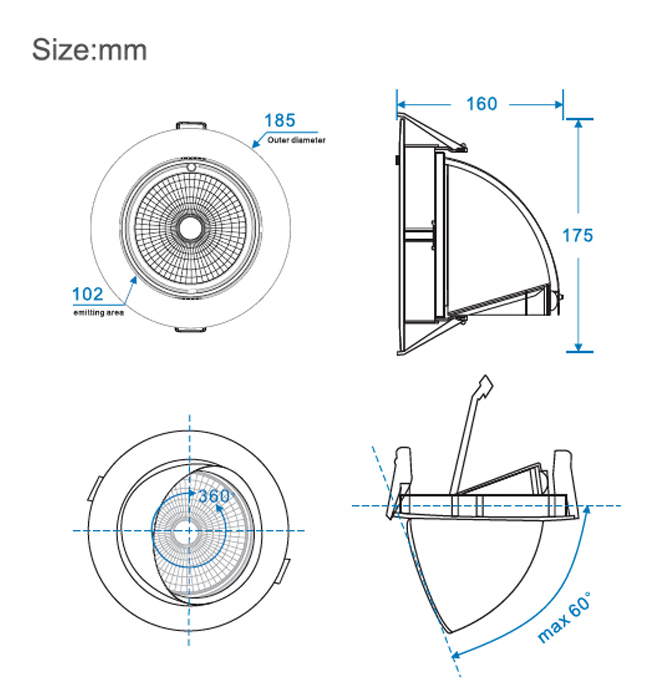

| EW-OCL-COB-26W-WW | Warm white | 2900-3300K | 2400-2500lm | Φ186*H160 Φ175(hole) |
| EW-OCL-COB-26W-NW | Natural white | 4000-4500K | 2450-2550lm | |
| EW-OCL-COB-26W-CW | Cool white | 5900-6300K | 2500-2600lm |
