| Output: | 4-20mA |
|---|---|
| Theory: | Piezo Vibration Sensor |
| Usage: | Vibration Sensor |
| Brand Name: | Ce Zhen |
| material: | Stainless Steel |
| Model Number: | CZ9300 |
| Place of Origin: | China (Mainland) |
| Frequency Range: | 5-1000Hz (vibration);2-2000Hz(acceleration);10-500Hz(displacement) |
| Working Temperature: | -40~+85 |
| Power Supply: | +24VDC |
| Piezoelectric Material: | PZT-5 |
| IP Grade: | IP65 |
| Mounting Thread: | M10*1.5 or customized |
| Cable Length: | 2m or you want |
| Application: | Gernerator,Fan,Pump,Turbine shell vibration sensor |
| Output: | Two-wire |
| Certification: | Explosion Proof |
Quick Details
Specifications
A. Overview

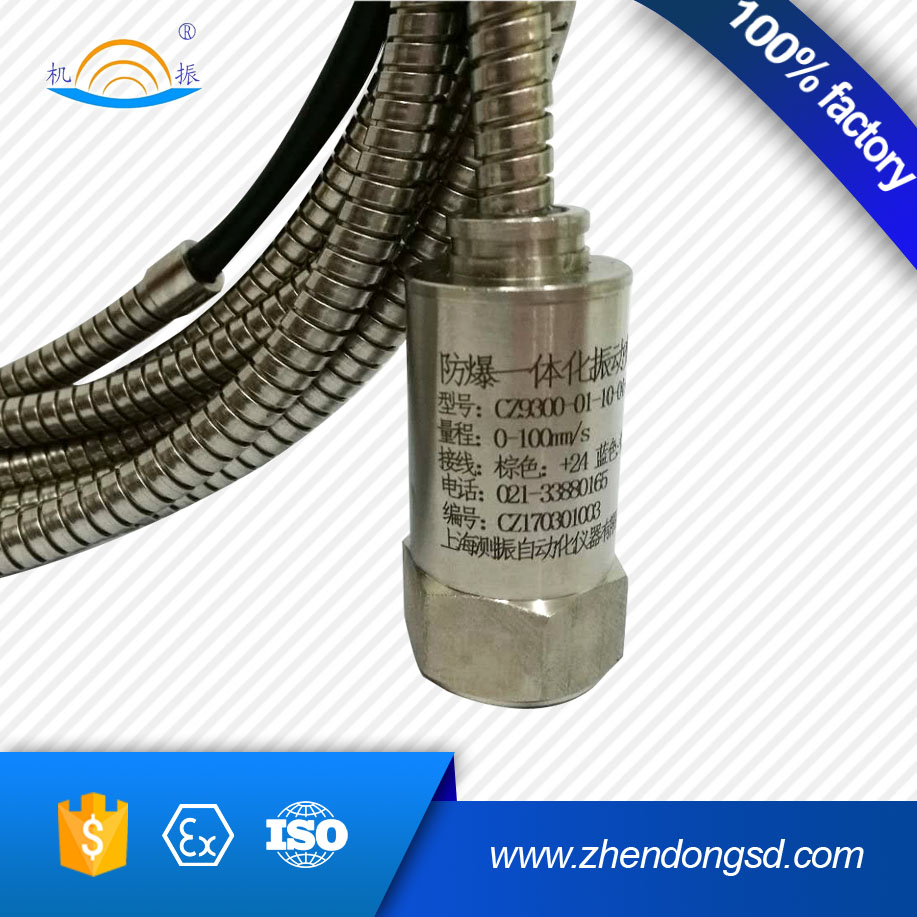

CZ9300 is our latest developed micro-transmitter with a small and exquisite appearance. the integrated chassis vibration transmitter consists of piezoelectric sensing element with measurement, conversion, integral, amplification, transmission and other major circuits, all the indicators accord with standards of " ISO2954-1975" and " GB13824-1992".
CZ9300 installed built-in precision integral circuit to provide speed output, based on Piezoelectric Acceleration Transducer. Compared with magneto-electric velocity transducer, it has lots of advantages, for example, it has wider response frequency range (2HZ-4000HZ), mechanical moving parts are not easy to damage (working life up to 7 years), lightweight, excellent dynamic performance and so forth.
CZ9300 provide 4-20mA current output, wiring fault-tolerant protection, with excellent stability reliability and strong anti-interference ability.
B. Main Technical specifications
1.Measuring range: 0--100mm/s
0-50g
0-500um
2.Output current: 4--20mA
3.Response frequency: 2HZ-4000HZ
4.Speed direction:from the bottom up the sensor ( forward direction)
5.Ambient temperature:-10°C--+70°C
6. Service voltage:12V--36V
7.Shell material:stainless steel
8.Weight: 110g
9.Mounting thread: M5, M10*1.5 thread or customized
10.Piezoelectric material:PZT-5
11.Output way: two wire
12.Accessories:
A. Calibration certificate parameters
B. A mounting screw
C. An aviation plug cable (standard: 3 m)
