| Application: | Laser Cutting |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE,fda |
| Model Number: | RF-1290-CO2-80W |
| Brand Name: | rayfine |
| Place of Origin: | China (Mainland) |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Control Software: | laserwork |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Speed: | 100mm/s |
| Cutting Area: | 1200*900mm |
| Cutting Thickness: | 20mm |
| Applicable Material: | Leather,Paper,plastic |
| Laser Type: | CO2 |
| Condition: | New |
| guide rails: | outslider guide rails |
| delivery time: | 10 days |
| packing: | plywood package |
Quick Details
Specifications
Laser Cutting Machine
Applicable Industry:
advertisement signs and marks making, handicraft industry, crystal accessories, paper cutting,
wood industry, printing industry, clothing and leather industry, etc.
Applicable Material:
Maple Leaf, Double-color sheet, glass, acrylic, wood, paper, leather, marble, ceramics, etc .
|
Name:
|

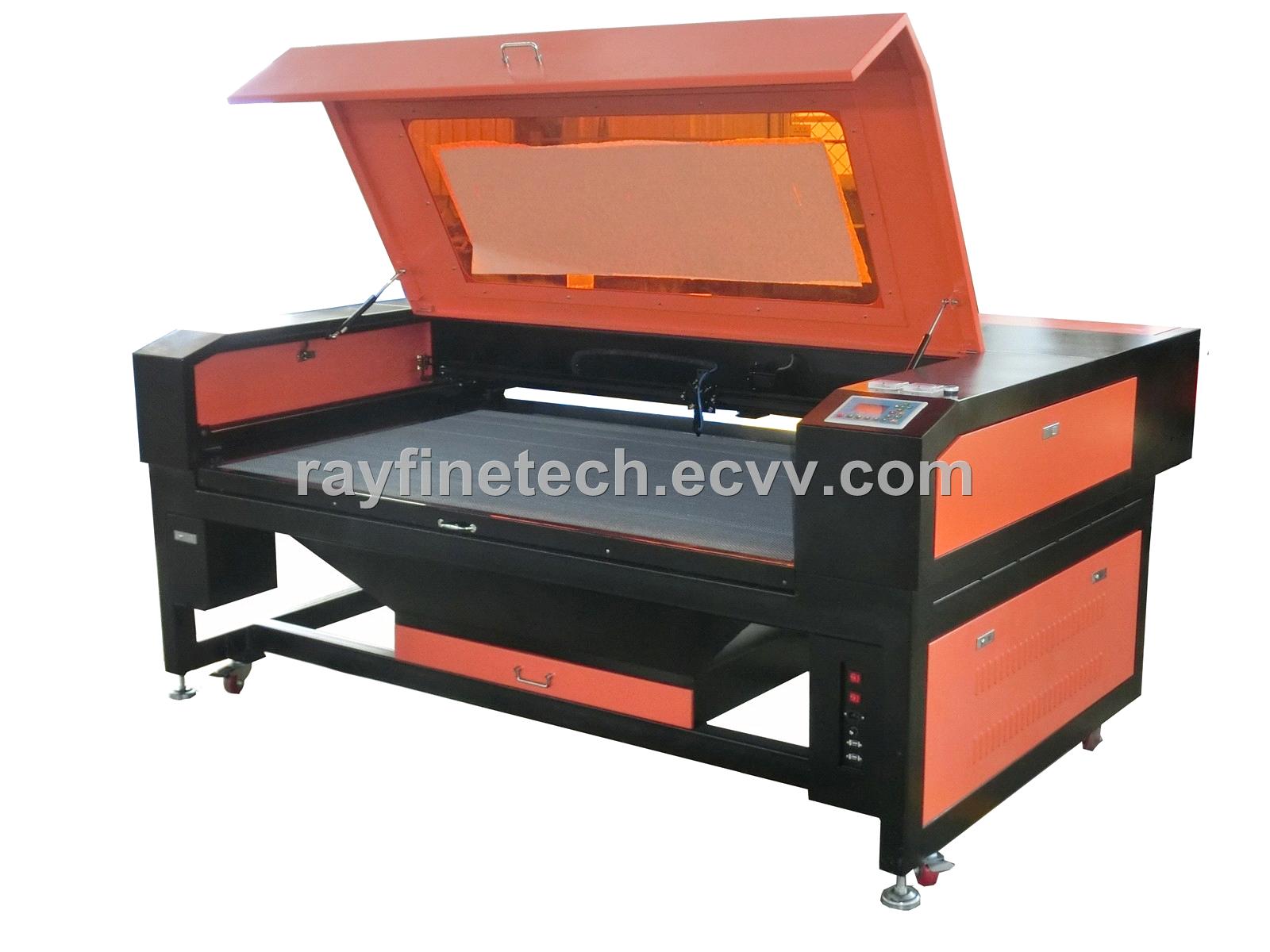

Laser Cutting Machine (RF-1290)
|
|
Processing area
|
1200mm*900mm (4feet*3feet)
|
|
Laser power
|
60W,80W,100W,130W,150W
|
|
Laser type:
|
Sealed Co2 glass laser tube
|
|
Cooling mode:
|
Water cooling and protection system
|
|
Resetting positioning accuracy:
|
±0.01mm
|
|
Compatible Software:
|
Laser cut 5.3, CorelDraw AutoCAD Photoshop
|
|
Whole machine size:
|
1450mm*1200mm*1000mm
|
|
Engraving speed
|
1-6000mm/min
|
|
Cutting speed
|
1-1000mm/min
|
|
Cutting thickness
|
0-25mm acrylic (others determined by materials)
|
|
Resolution ratio
|
≤0.0125mm
|
|
Position system:
|
Red dot
|
|
Interface:
|
USB
|
|
Minimum shaping character
|
letter 0.5mm, Chinese 0.5mm
|
|
Support graphic format
|
DST, PLT, BMP, DXF
|
|
Gross power
|
1000W
|
|
Driving mode:
|
DC0.8A 24V stepper motor
|
|
Cooling mode:
|
Circulation water cooling
|
|
Working voltage:
|
AC 110 - 220V±10%, 50 - 60Hz or depend on customer
|
|
Operating temperature
|
0-45C
|
|
Operating humidity:
|
5-95%
|
|
Driving system
|
stepper
|
|
Option:
|
Up and down table, rotary attachment
|
|
Packing:
|
wooden box
|
|
Guarantee time:
|
1 year, laser tube 3 months
|
1. heavy duty machine body with good rigidity
2.outslider guide rails better cutting effect on fabric about circle and arc cutting work.
3.quality laser tube with long service time
4.high speed DSP(laserwork)
5.Imported belt more durable.
cutting and engraving samples:
