After-sales Service Provided: | Overseas service center available |
---|---|
Certification: | CE |
Overall Dimensions: | 3790*1228*2110mm |
Fork Width: | 125mm |
Fork Length: | 1200mm |
Min. Lifting Height: | 14cm |
Max. Lifting Height: | 3meter |
Rated Loading Capacity: | 3000kg |
Power Souce: | Diesel Engine |
Type: | Powered Pallet Truck |
Model Number: | CPCD30FR |
Brand Name: | Saten |
Place of Origin: | China (Mainland) |
Condition: | New |
ENGINE MODEL: | 490BPG |
POWER: | 37kw |
Quick Details
Specifications
CPCD30FR Diesel Powered Forklift Truck
Standard specifications:
Load capacity : 3000kg
Lifting height: 3000mm
Total weight: 4320kg
Overall dimensions: 3790*1228*2110mm
FORK LENGTH: 1200mm
FORK WIDTH: 125mm
FORK THICKNESS: 45mm
Min under-clearance:135mm
ENGINE MODEL: 490BPG (Made in China)
POWER: 37KW
POWER SHIFT: Tor-Con
Packing details:
2 pcs/20Container;
5 pcs/40Container.
.....................
Standard configuration:

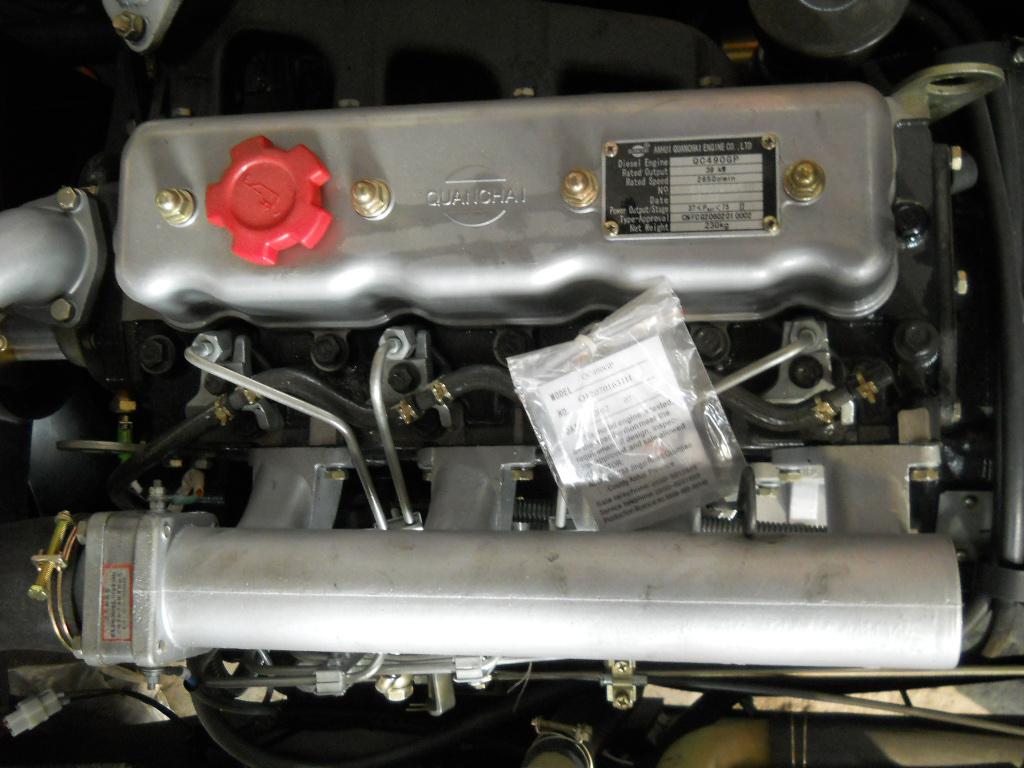

1) China Engine QC490BPG:
.....
2)Hydraulic transmission:
.............
3) 2-stage 3000mm mast:
.....

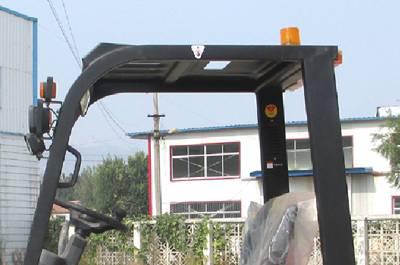

4)Safe over-guard:
.........
5) Warning light:
........

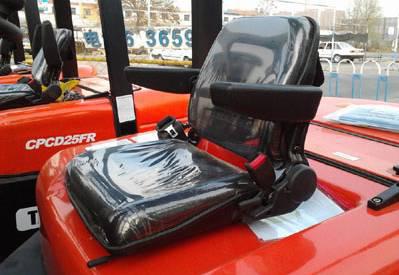

6) Seat with safety belt and steady bar:
.....................................................
OPTIONAL ITEMS
1,EUR ISUZU 4JG2PE-01 45KW;
2, ISUZU 4JB1 engine made in China;
3,ISUZU C240, 34.5KW;
4,YANMAR 4TNE98, 42KW:
5,Different lifting heights options:
2-STAGE MAST 3.3M
2-STAGE MAST 3.5M
2-STAGE MAST 4M
2-STAGE MAST 4.5M
2-STAGE MAST 5.0M
3-STAGE MAST 4.5M
3- STAGE MAST 5.0M
3-STAGE MAST 5.5M
3-STAGE MAST 6M
3-STAGE MAST 7.3M
6,Side shifter;
7,Sideshifter & fork positioner;
8,Solid tire;
9,Up exhaust;
10, Electric gearshift;
11,Good-damping seat;
