| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | ISO,CE |
| Weight: | 6500kg |
| Overall Dimensions: | 5.56*2.1*2.18m |
| Table Size: | 1.83*0.76*1.1m |
| Max. Lifting Height: | 14.2m |
| Min. Lifting Height: | 2.18m |
| Rated Loading Capacity: | 250kg |
| Lift Drive / Actuation: | Hydraulic |
| Lift Mechanism: | Articulated Lift |
| Model Number: | GTZZ15 |
| Brand Name: | Sinoboom |
| Place of Origin: | China (Mainland) |
| Horizontal reach max.: | 7.62M(25ft) |
| Turntable rotation: | 355degree |
| Platform rotation: | 160degree |
| Grade ability: | 40% |
| Turning radius(outside): | 4.5M(15ft) |
| Turning radius(inside): | 1.8 M(6ft) |
| Max. Driving Speed: | 7km/h |
| Max allowable wind force: | 12.5m/s |
| Hydraulic tank vol.: | 70L |
| Fuel tank vol.: | 135L |
Quick Details
Specifications

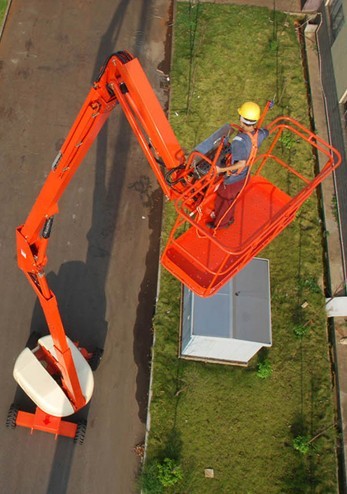

Specifications of Self-propelled articulating boom lift GTZZ15
|
Item |
Measurement |
Item |
Measurement |
|
Dimensions |
Productivity |
||
|
Overall length(stowed) |
5.56M(18ft) |
Platform height max. |
14.2M(49ft) |
|
Overall width(stowed) |
2.1M(6ft) |
Working height max. |
16.3M(55ft) |
|
Overall height(stowed) |
2.18M(7ft) |
Horizontal reach max. |
7.62M(25ft) |
|
Ground clearance |
0.23M(0.8ft) |
Turntable rotation |
355degree |
|
Wheelbase |
2.2M(7.2ft) |
Platform rotation |
160degree |
|
Overall weight |
6500kg(2WD) |
Platform Load capacity |
250kg |
|
|
7700kg(4WD) |
|
|
|
Platform Size (L*W*H) |
1.83*0.76*1.1M |
Grade ability |
40%(2WD) |
|
|
|
|
40% (4WD) |
|
Platform levelling |
Automatic |
Turning radius(outside) |
4.5M(15ft) |
|
Tire specification |
300-15 |
Turning radius(inside) |
1.8 M(6ft) |
|
Tire type |
Solid |
Turntable tailswing |
0M(0ft) |
|
Power |
Max. Driving Speed |
7km/h |
|
|
Hydraulic tank vol. |
70L |
Driving Speed (stowed) |
0~7km/h |
|
Hydraulic system vol. (inc. the tank) |
110L |
Driving Speed (extended) |
0~1.1km/h |
|
Fuel tank vol. |
135L |
Max allowable wind force |
12.5m/s |
|
Control voltage |
12V |
Max allowable slope |
3degree |
|
Engine |
Perkins 404D-22T |
Max noise |
82dB(A) |
|
Drive & steer model |
2WD*2WS |
Max allowable side force |
400N |
