| Special Features: | Waterproof / Weatherproof |
|---|---|
| Technology: | 4-9mm Waterproof Varifocal mini Bullet Camera |
| Sensor: | CCD |
| Style: | Bullet Camera |
| Type: | Analog Camera |
| Model Number: | MYY-B126CJEWV |
| Brand Name: | MiyeaEYE |
| Place of Origin: | China (Mainland) |
| Resolution: | 650TVL |
| Image sensor: | 1/3" Sony CCD |
| Lens: | High quality 4-9mm Waterproof Varifocal lens |
| Camera diameter: | 26mm |
Quick Details
Specifications

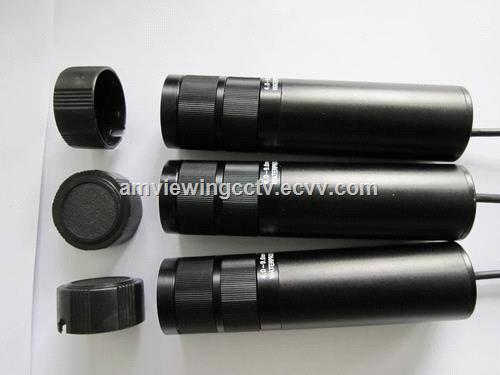

Super High quality 4-9mm waterproof varifocal mini bullet camera
1/3"SONY CCD;
650 TV Lines,0.01Lux;
Metal Casing;
650TVL,700TVL available.650TVL,700TVL OSD function available.
Metal Casing;
650TVL,700TVL available.650TVL,700TVL OSD function available.
Detailed Specifications Of mini bullet camera
|
Model
|
MYY-B126CJEWV
|
|
Image Device
|
1/3" Sony CCD
|
|
Horizontal Resolution
|
650TVL
|
|
Minimum Illumination
|
0.01Lux
|
|
Effective Pixels
|
PAL:960(H)*582(V);NTSC:960(H)*494(V) |
|
Scanning System
|
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
|
|
S/N Ratio
|
More Than 48dB(AGC off)
|
|
Electronic Shutter
|
PAL : 1/50~1/100,000 Sec; NTSC : 1/60~1/100,000 Sec, auto
|
|
Gamma Characteristic
|
0.45
|
|
White Balance
|
Auto
|
|
Lens Option
|
4-9mm high quality varifocal waterproof lens
|
|
BLC
|
Auto
|
|
AGC
|
Auto
|
|
Sync System
|
Internal Synchronization
|
|
Video output
|
1Vp-p 75 Oms , Negative
|
|
Power Consumption
|
12V±10%DC, 50mA
|
|
Operation Temperature
|
-10℃ ~ + 50℃, RH 95% Max
|
|
Storage Temperature
|
-20℃ ~ + 60℃, RH 95% Max
|
|
Housing
|
Black
|
|
Dimension
|
?26*105mm
|
|
Weight
|
60g
|
|

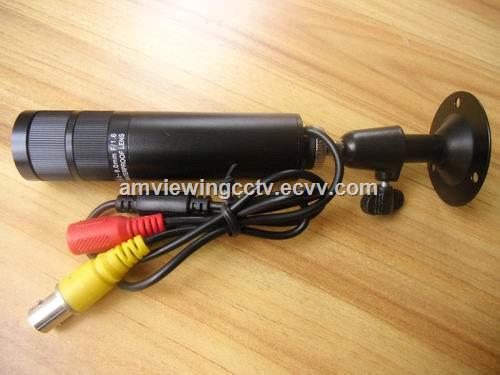

Supplied Accessories
|
User manual,cable,bracket
|
