| Special Features: | Waterproof / Weatherproof |
|---|---|
| Technology: | Infrared |
| Sensor: | CCD |
| Style: | Box Camera |
| Type: | Analog Camera |
| Model Number: | MYY-L1601CJW |
| Brand Name: | MiyeaEYE |
| Place of Origin: | China (Mainland) |
| Resolution: | 650TVL |
| Image sensor: | 1/3" Sony CCD |
| Lens: | 8mm/12mm/16mm |
| IR Distance: | 60m night vision |
Quick Details
Specifications

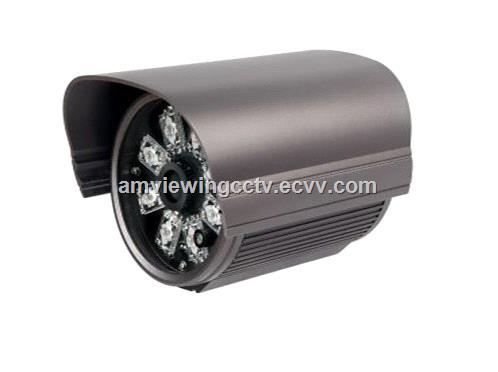

60 Meters Long Range Day Night IR Waterproof Camera
IR Waterproof CCD Camera Details:
1/3" SONY CCD;
IR Waterproof CCD Camera Details:
1/3" SONY CCD;
650 TV Lines;
Metal Casing;
420TVL, 480TVL, 540TVL, 650TVL, 700TVL available. 650TVL, 700TVL OSD function available.
Metal Casing;
420TVL, 480TVL, 540TVL, 650TVL, 700TVL available. 650TVL, 700TVL OSD function available.
Detailed Specifications Of The Parameters
|
Model
|
MYY-L1601CJW
|
|
Image Device
|
1/3" Sony CCD
|
|
Horizontal Resolution
|
650TVL
|
|
Minimum Illumination
|
8pcs powerful IR LEDS, 0 Lux(Led On)
|
|
Effective Pixels
|
PAL: 960(H)*582(V); NTSC: 960(H)*494(V) |
|
Scanning System
|
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
|
|
S/N Ratio
|
More Than 48dB(AGC off)
|
|
Electronic Shutter
|
PAL : 1/50~1/100,000 Sec; NTSC : 1/60~1/100,000 Sec, auto
|
|
Gamma Characteristic
|
0.45
|
|
White Balance
|
Auto
|
|
Lens Option
|
16mm lens
|
|
BLC
|
Auto
|
|
AGC
|
Auto
|
|
Sync System
|
Internal Synchronization
|
|
Video output
|
1Vp-p 75 Oms , Negative
|
|
Power Consumption
|
12V± 10%DC, 50mA
|
|
Operation Temperature
|
-10℃ ~ + 50℃, RH 95% Max
|
|
Storage Temperature
|
-20℃ ~ + 60℃, RH 95% Max
|
|
Housing
|
metal
|
|
Dimension
|
? 90*130mm
|
|
Weight
|
550g
|
|
Supplied Accessories
|
User manual, cable
|
