EPSON TECHNOLOGY, HIGH RESOLUTION, HIGH SPEED, LOW COST PERFECT&ECONOMIC SOLUTION for CAR WRAPS,OUTDOOR VINYLS,BANNERS,STICKERS,SUBLIMATION,LEATHER,WALL PAPER,REFETIVE FILM Etc

Features:

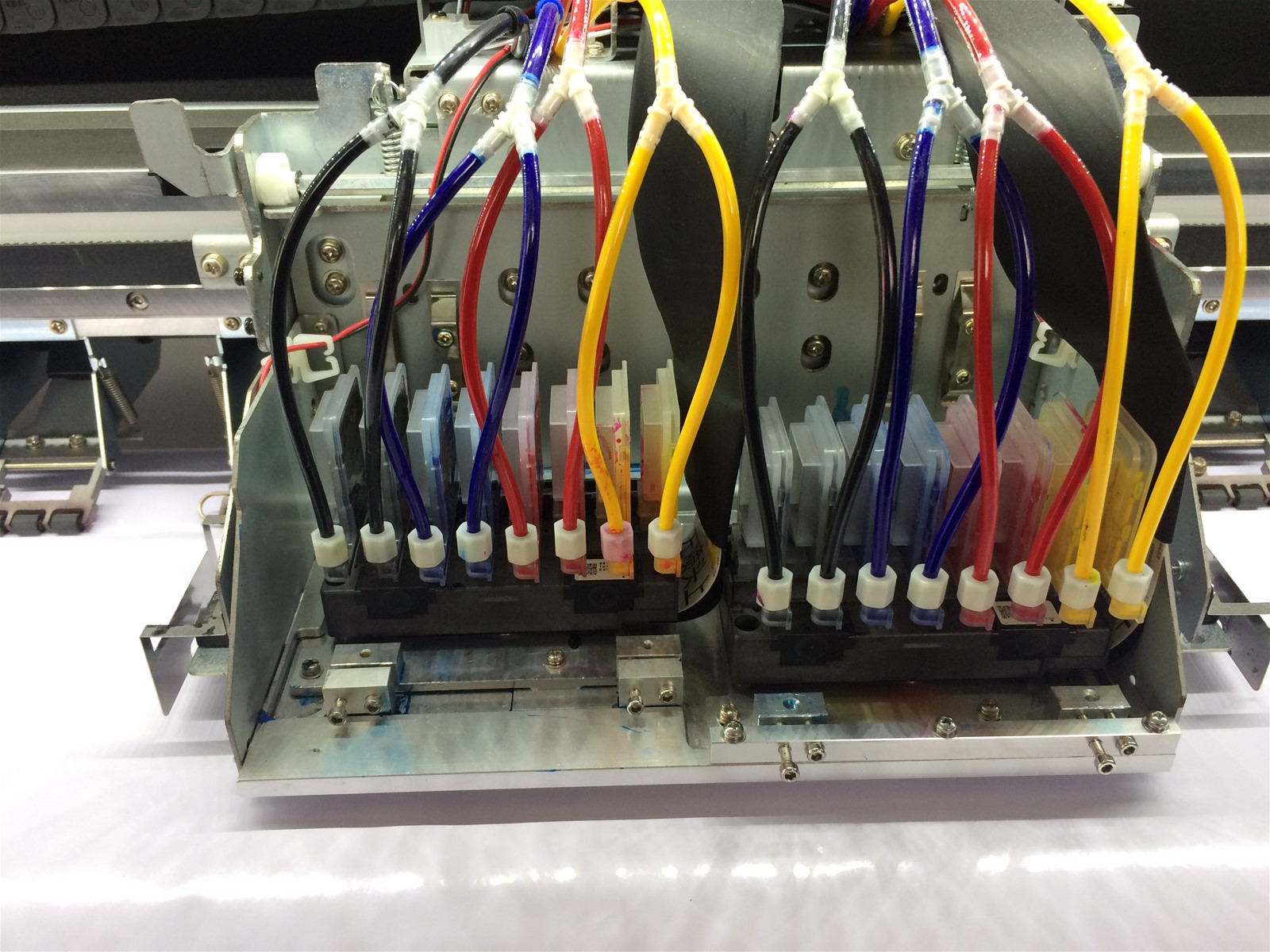

* Epson DX5 solvent print head(s),Max 1440dpi with double 4-color ink supply system,Better result than DX7. * New updated appearance, High manufacture craft for all components * High accuracy media feeding system and heavy duty media auto take up system. * Bulk ink supply system with 4x 440ml ink tank and 4 exterior big volume tanks * Imported HIWIN linear rail with double-slider ensures smooth ink carriage movement. * X and Y axis both take servo motors, more stable and lower noise during printing. * with intelligent heat and fan 2in1 system. * Automatic flash-jet function to against print head jam, keep it wet while printing and standby. * Metal carriage maintenance station with electromagnetic wiping and auto cleaning system. * Printing start point can be set freely able to do boarderless printing.  *Print head height is adjustable by a knob on carriage easily from 1.8mm to 2.2mm for different thickness medias Details:   Install 2 or 1 Dx5 printhead, new refined carriage           Bulk ink system with 4 exterior big volume tanks auto feeding   Carriage anti-collision device              Upgraded carriage board supports one head and 2 heads   New rubber Friction roller media feeding and absorption platform                               Big power servo motor for movement  Media detector, auto-stop when no media                          off-Set Printhead Maintenance Station   Intelligent fan & heat system                                Auto take up system with 2 motors

Parameter:

Model	Vinyl Express 18S2 (18S1)
Printhead	Solvent EPSON DX5 Piezo-Electric Printhead
Number of Printhead	2 (or 1)
Print Resolution	720dpi,1080dpi,1440dpi
Maximum Print Width	1820mm
Print Speed	Production Model 4pss:34m2/h
	Quality Model 6pss:24m2/h
	High-resolution Model 8pass:182/h
Ink	Type	Eco-Solvent Ink, Dye Ink, Pigment ink, Sublimation Ink
	Color	Double 4 colors(K\C\M\Y)
	Capacity	450ml of each ink cartridge
	Ink Supply System	Negative Pressure Continuous Ink Supply System
Media	Maximum Width	1850mm
	Feeding System	Maximum Weigh 55kg
	Take up System	with
	Type	Vinyl, Flex Banner, Wallpaper, One way vision, Reflective film, PP,PP sticker, Photo paper,PVC,Backlit film,Canvas,etc.
Printhead Height	Adjustable
Printhead Clean	Automatically Cleaning,Anti-blocking, Auto flash & Moisturizing function
Driver System	Leadshine810 High Accuracy motors
Heating System	Tri-stage Heating System Control by PID Temperature Control System
Drying System	with
Language	Chinese\English
Operation System	Windows XP\Win7 32 bit\Win7 64 bit
Print Interface	100M/Network Interface
Compatibility	Support LAN Print
RIP Software	MainTop 5.3\ optional PhotoPRINT
Working Environment	Temperature:18℃- 35℃  Humidity:35RH - 65RH
Power Supply	AC_110V/220V, 50/60HZ
Power(W)	Stand-by Power 32W,Maximum Power 1500W
Noise	Stand-by<32dB,Working<65dB
Machine Dimension	2920mmx870mmx1278mm(LxWxH)
Package Dimension	3050mmx770mmx770mm(LxWxH)
Package Weight	330kg
