| Shape: | Other |
|---|---|
| Brand Name: | REDSUN |
| Processing: | Precision Casting |
| Material: | Iron |
| Tooth Profile: | Helical Gear |
| Standard or Nonstandard: | Standard |

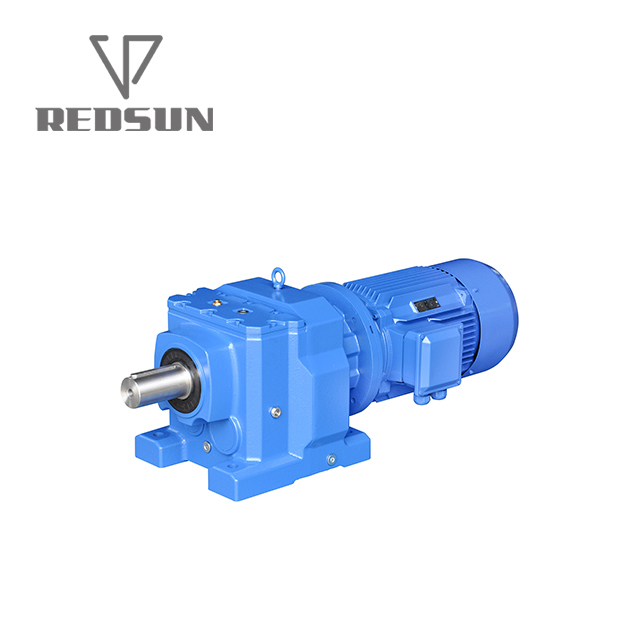

| Model Number: | R series |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Our Advantages:
High modular design.
Integrated casting housing, compact dimension, high loading support, stable transmitting and low noise level.
Perfect oil leakage preventing makes the good sealings and can be used in wide range of industry.
this series is special for pug mill.
High efficiency and save power.
Save cost and low maintenance.
Integrated casting housing, compact dimension, high loading support, stable transmitting and low noise level.
Perfect oil leakage preventing makes the good sealings and can be used in wide range of industry.
this series is special for pug mill.
High efficiency and save power.
Save cost and low maintenance.
Main Application:
Chemical agitator
Hoist and transport
Steel and metallurgy
Electric power
Coal mining
Cement and construction
Paper and light industry
Hoist and transport
Steel and metallurgy
Electric power
Coal mining
Cement and construction
Paper and light industry
Technical Data:
| Housing material | Cast iron/Ductile iron |
| Housing hardness | HBS190-240 |
| Gear material | 20CrMnTi alloy steel |
| Surface hardness of gears | HRC58~62 |
| Gear core hardness | HRC33~40 |
| Input / Output shaft material | 42CrMo alloy steel |
| Input / Output shaft hardness | HRC25~30 |
| Machining precision of gears | Accurate grinding, 6~5 Grade |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
| Heat treatment | Tempering, cementiting, quenching, etc. |
| Efficiency | 94%~96% (depends on the transmission stage) |
| Noise (MAX) | 60~68dB |
| Temp. Rise (MAX) | 40C |
| Temp. Rise (Oil)(MAX) | 50C |
| Vibration | 20m |
| Backlash | 20Arcmin |
| Brand of bearings | China top brand bearing, HRB/LYC/ZWZ/C&U. or other brands requested, SKF, FAG, INA, NSK. |
| Brand of oil seal | NAK --- Taiwan or other brands requested |
SIZE |
Shaft Dia. Solid(mm) |
Center Height |
Output Flange Dia. (mm) |
Power(kw) |
Ratio |
Permissible Torque(N. M) |
Weight(KGS) |
17 |
20K6 |
75 |
120/140 |
0.18-0.75 |
3.83-74.84 |
85 |
4 |
27 |
25K6 |
90 |
120/140 |
0.18-3.00 |
3.37-135.09 |
130 |
5.5 |
37 |
25K6 |
90 |
160/200 |
0.18-3.00 |
3.33-134.82 |
200 |
8.5 |
47 |
30K6 |
115 |
160/200 |
0.18-5.50 |
3.83-176.88 |
300 |
10 |
57 |
35K6 |
115 |
200/250 |
0.18-7.50 |
4.39-186.89 |
450 |
18 |
67 |
35K6 |
130 |
200/250 |
0.18-7.50 |
4.29-199.81 |
600 |
25 |
77 |
40K6 |
140 |
250/300 |
0.18-11.00 |
5.21-195.24 |
820 |
36 |
87 |
50K6 |
180 |
300/350 |
0.55-22.00 |
5.36-246.54 |
1550 |
63 |
97 |
60m6 |
225 |
350/450 |
0.55-30.00 |
4.49-289.74 |
3000 |
101 |
107 |
70m6 |
250 |
350/450 |
2.20-45.00 |
5.06-249.16 |
4300 |
153 |
137 |
90m6 |
315 |
450/550 |
5.50-55.00 |
5.15-222.60 |
8000 |
220 |
147 |
110m6 |
335 |
450/550 |
11.00-90.00 |
5.0-16.31 |
13000 |
400 |
167 |
120m6 |
425 |
550/660 |
11.00-160.00 |
10.24-229.71 |
18000 |
700 |
Our products:
Our Company:
1.It is a professional company specialized in researching,developing and selling gearboxes which was founded in 2001.
2.Redsun factory occupies 35000 Sqm and 370 staffs.
3.the annual production capacity of speed reducer is around 70000 sets.
2.Redsun factory occupies 35000 Sqm and 370 staffs.
3.the annual production capacity of speed reducer is around 70000 sets.
FAQ:
Q: Are you trading company or manufacturer?
A: We are factory.
Q: how long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.
Q: Can we buy 1 PC of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have another question, pls feel free to contact us.
If you have another question, pls feel free to contact us.
