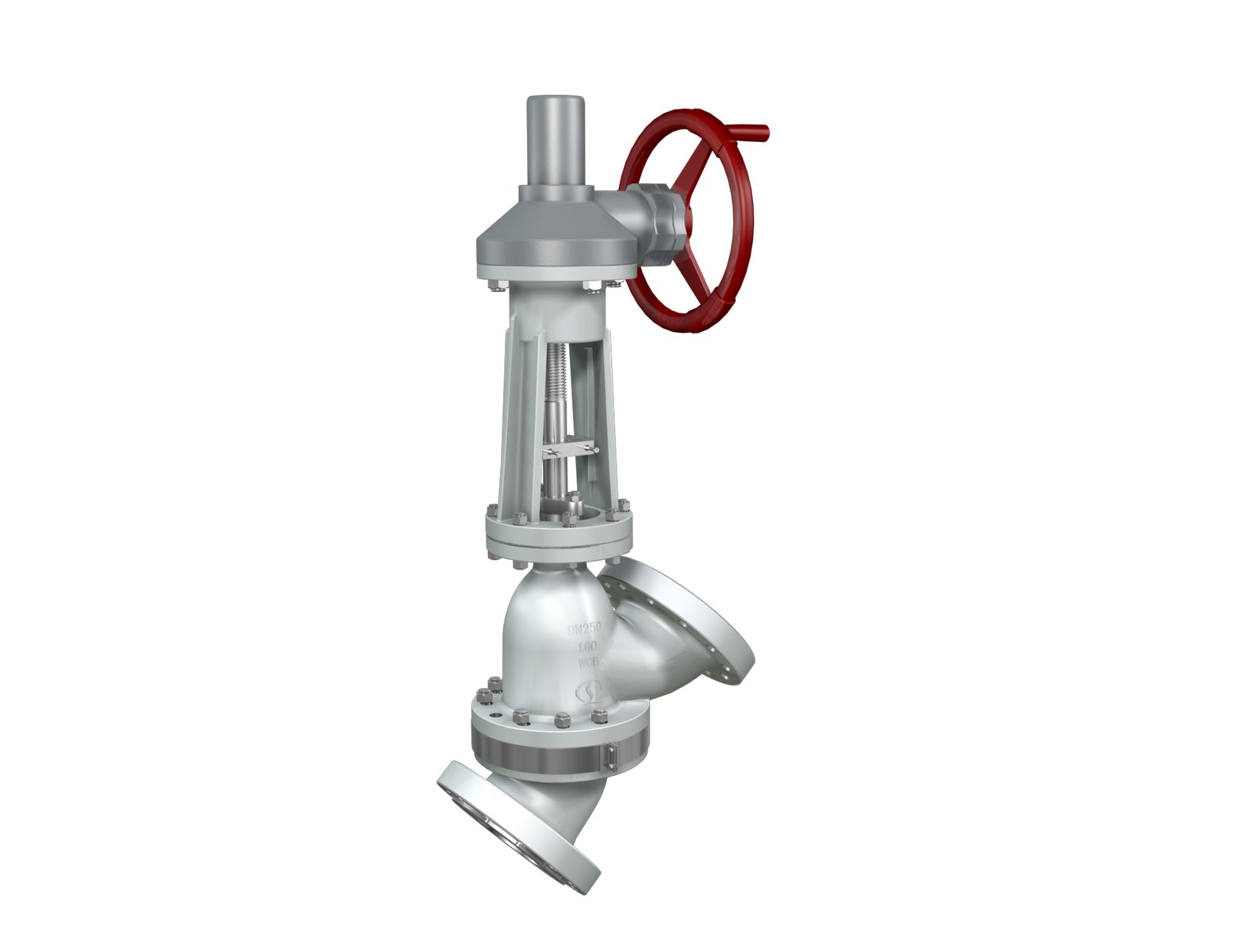

Y type Globe Valve is a high performance industry valve which made by Henan Quanshun Flow Control Science & Technology Co, ltd, which has characteristics of anti-abrasive, anti-high pressure and anti-scab. Y type Globe Valve is widely used in alumina, metallurgy and mining plant for controlling slurry.
 Featuring abrasion resistance,high pressure resistance,erosion resistance and anti-scale performance,the Y pattern globe valve for slurry control is specially offered for controling or stopping the slurry.the applicable industry includes alumina,matallugy and mining .


1 , the valve body of globe valve for alumina slurry control is consisted of two pieces. the left and right valve bodies are provided in geometric design. Besides the solidworks software for three -dimensional contouring,the ANSYS software is also applied for flow field analysis.
2, the valve seat of y type slurry valve is separated from the valve body.Installed between the two valve body,so the valve seat can be replaced easily.
3, to ensure the rectilinear motion of the valve stem,there is an anti-rotation device provider for the valve  stem of the y type slurry valve.
4, No pocket inside valve.

5, Low pressure drop .
6, the range of product is anti-scaling,which are widely use in alumina process.

Technical parameter
Size: 2" ~14" DN50~DN350
Pressure: Class 150~Class 600   PN1.0~PN16
Body material: WCB,   CF8, CF8M, CF3, CF3M etc
Connection type:Flange,weld,and some others
Driving method:Manual,Electric,pneumatic
Application
Alumina industry

Polymer Industry
Chemical industry
Steel industry
Nonferrous metal industry
