| Model Number: | RS-TM05 |
|---|
Quick Details
Specifications
Overview

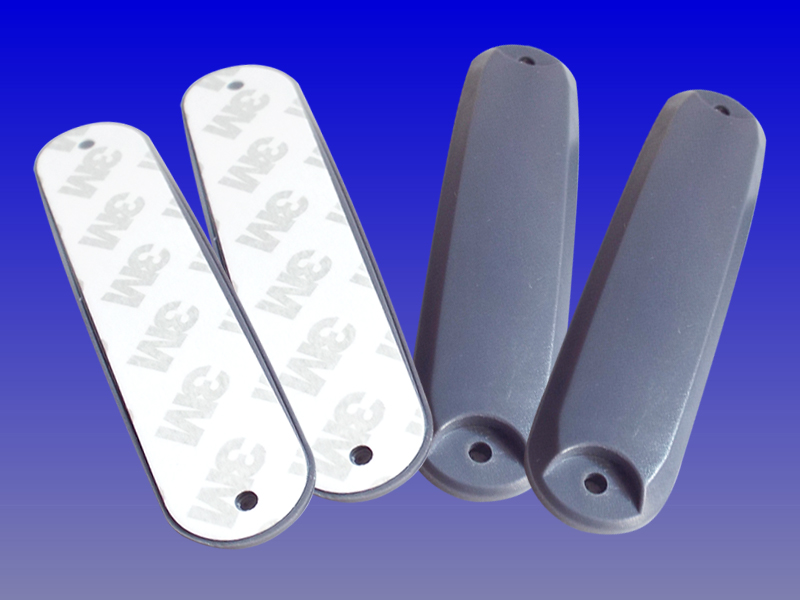

UHF RFID Anti-metal Tag Sticker (RS-TM05) is designed for metal solution. It solves the problem that tags can not be attached to metal surface (Reading distance even more faster when it is attached to metal surface). It is waterproof and can work outdoor in the tough environment. Now it is widely used for goods shelves management, IT management, etc.
Main Features
-Compatibility: SO18000-6C(EPC Gen 2) protocol;
-Frequency Band: 860-960Mhz;
-Chipset: Alien Higgs 3;
-Read Range: 1-8m depends on reader and environment;
-Material: ABS+PC;
-Size: 103*25*7mm;
Applications
-Vehicle and Logistic Management.
-Assets statistics management, IT management;
-Goods shelves management, small equipment management;
Specifications
Model No. |
RS-TM05 |
Type |
UHF RFID Anti-metal Tag Sticker |
Working frequency |
Global 860-960Mhz |
Support protocol |
ISO18000-6C/EPC Gen2 |
Read &Write distance |
1-8m depends on reader and environment; |
Memory |
EPC 96 bits/ 512bits |
Data retention |
10years |
Programming cycles |
Anti-collision algorithm,10,0000 times for repeated delete/write |
Unit size |
103*25*7mm |
Net weight |
15g |
Operating temperature |
-40 ~ +80°C |
Humidity |
5%~95%(non-condensing) |
Material |
ABS+PC |
