Output: | Analog Sensor |
---|---|
Theory: | Resistance Sensor |
Usage: | Pressure Sensor |
Brand Name: | liheng |
material: | alloy steel or stainless steel |
Quick Details
Specifications
Specification
the general data as below, but we can design and manufacture various kinds of load cells to meet different customers' demands. | ||
Characteristic |

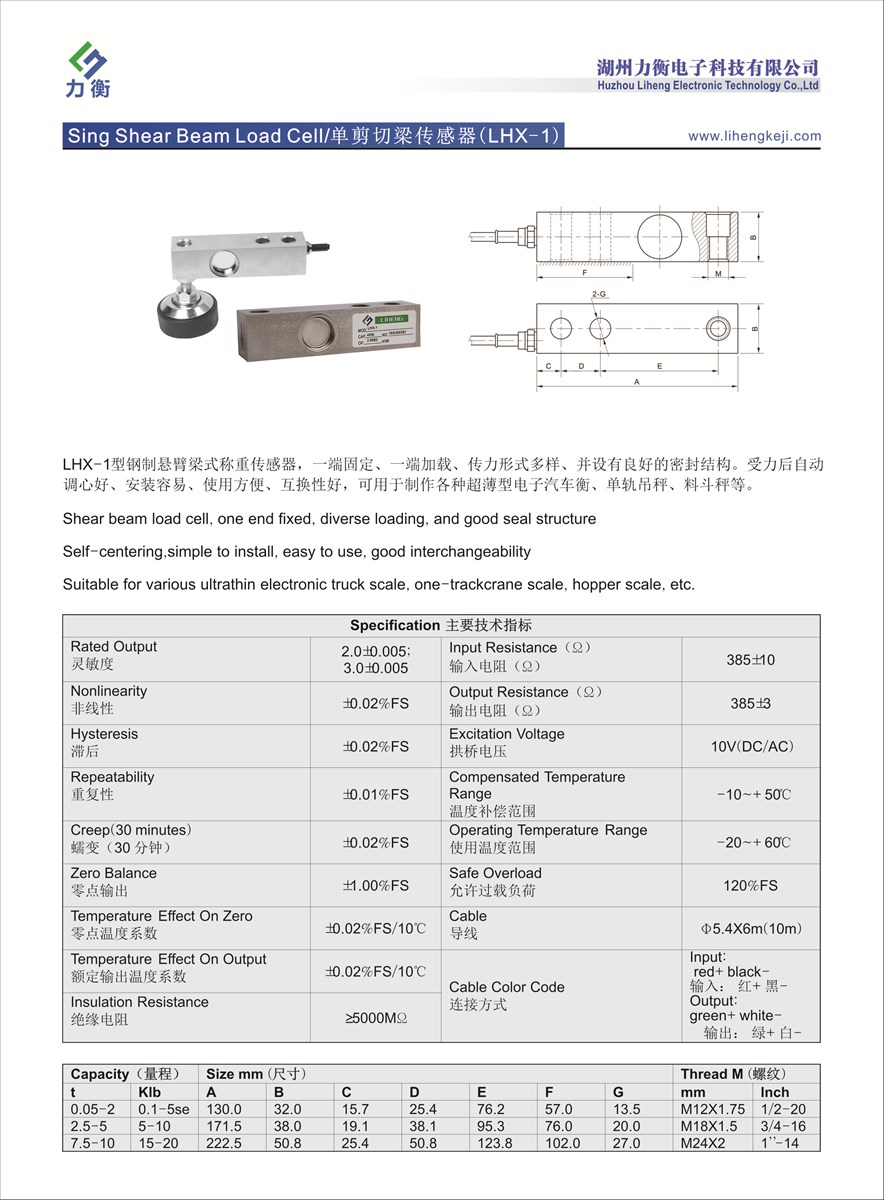

Shear beam load cell, one end fixed, diverse loading, and good seal structure. Self-centering, simple to install, easy to use, good interchangeable. | |
Materials |
Alloy steel, stainless steel | |
Suitable for |
Various ultrathin electronic truck scales, one-track crane scales, hopper scales,etc. | |
Capacity |
0.05T~10T | |
Sensitivity |
2.00±0.010,3.00±0.010 |
MV/V |
Nonlinearity |
±0.02 |
%FS |
Hysteresis |
±0.02 |
%FS |
Repeatability |
±0.01 |
%FS |
Creep(30 minutes) |
±0.02 |
%FS |
Zero balance |
±1.00 |
%FS |
Temperature effect on zero |
±0.02 |
%FS/10℃ |
Temperature effect on output |
±0.02 |
%FS/10℃ |
Input resistance |
385±10 |
Ω |
Output resistance |
350±3 |
Ω |
Insulation resistance |
≥5000 |
MΩ |
Excitation voltage |
10 |
V(DC/AC) |
Compensated temperature range |
-10~+50 |
℃ |
Operating temperature range |
-20~+60 |
℃ |
Safe overload |
120 |
%FS |
Cable |
Φ5.4X6(10) |
M |
Cable color code |
Input: red+ black- Output: green+ white- |
