| Brand Name: | Tribrer |
|---|---|
| Wavelength: | None |
| Data Rate: | None |
| warranty: | First year free, begins from shipping date, not including human damage |
| Connector: | None |
| Model Number: | OFS700 |
| Place of Origin: | China (Mainland) |
| Aligning Method: | Core alignment |
| Splicing Time: | 9s |
| Heating Time: | 25s |
| Data Storage: | 10000 traces |
Quick Details
Specifications

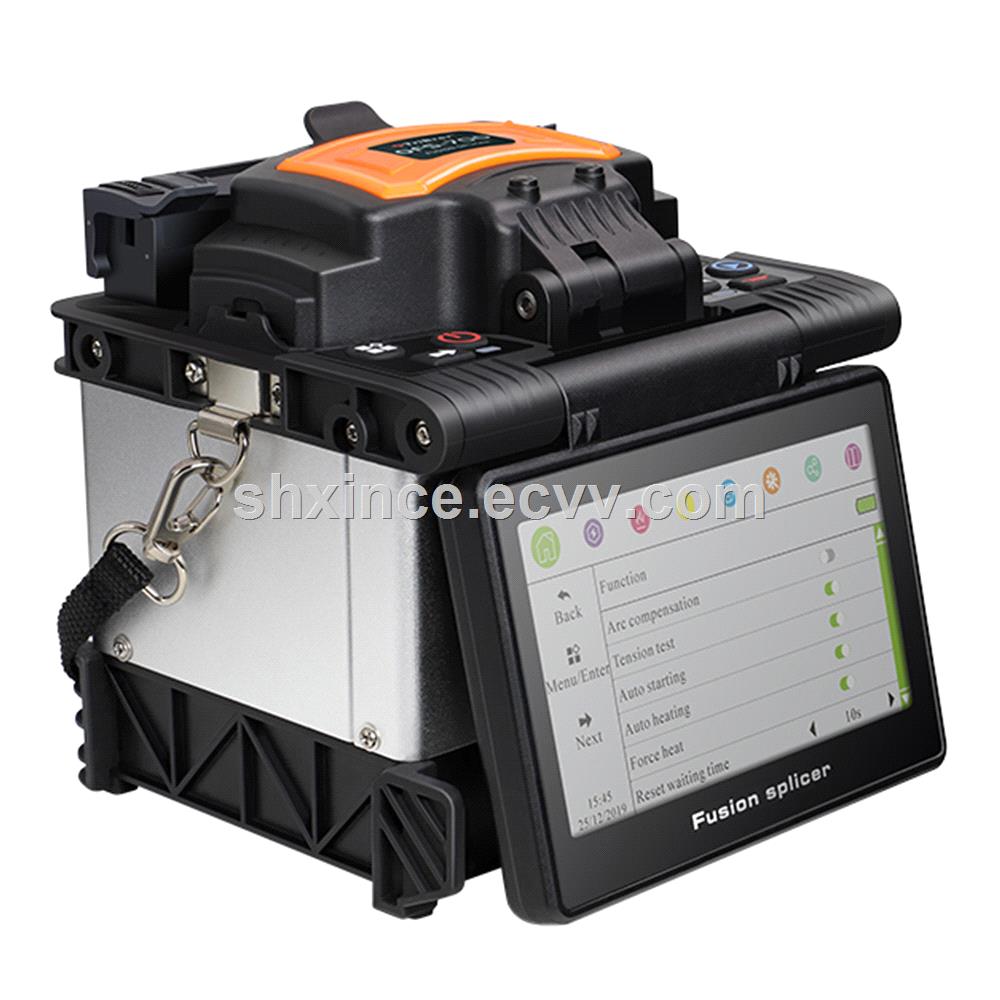

Product Feature
- Large,high visibility 5 inches high resolution colorful LCD display
- FAST! 9 second splice time / 25 seconds heat time
- Long life Li-ion battery provides 200 splice / heat cycles
- Extended electrode performance with 2500 splices per set
- Simultaneous X and Y views with 200 times magnification
- Fully ruggedized for shock,dust and moisture
- New developed technology providing wind and dust resistance
- USB Port supported
- Splicing mode: Auto & Man & Half Auto
- Storing 10,000 groups of splice results
| SPECIFICATIONS | |
| Applicable Fibers | SM, MM, NZ-DS, EDF |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
| Fiber aligning method | Core aligning |
| Splicing time | Typical 9 sec,with standard SM fiber |
| Heating time | Typical 325 |
| Electrode life | 2500 |
| Battery capacity | Typical 200 cycles (splice and heat) |
| Monitor | 5 inch color LCD |
| Storage of splice result | 10000 results |
| Tension Test | 2.0N (Standard) |
| Environmental Conditions | -10~+50.C(operation temperature), 0~95% RH(humidity), 0~5000m(altitude); |
| Power Supply | Lithium Battery or AC/DC Adapter |
| Dimensions | 146 * 131 * 52 |
| Weight | 1.551kg |
| STANDARD PACKAGE | |
| Fiber Cleaver *1 | |
| Fiber Stripper*1 | |
| AC/DC Adapter*1 | |
| Charger*1 | |
| Spare Electrodes*2 | |
| Cooling Tray*1 | |
| Instruction CD*1 | |
| Carrying Case*1 | |
| NOTE: PLEASE CONTACT TRIBRER for AVAILABILITY and LEAD TIME. | |
