Product Main

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Voltage: 380v
Brand Name: EME
Application: Cattle
Condition: New

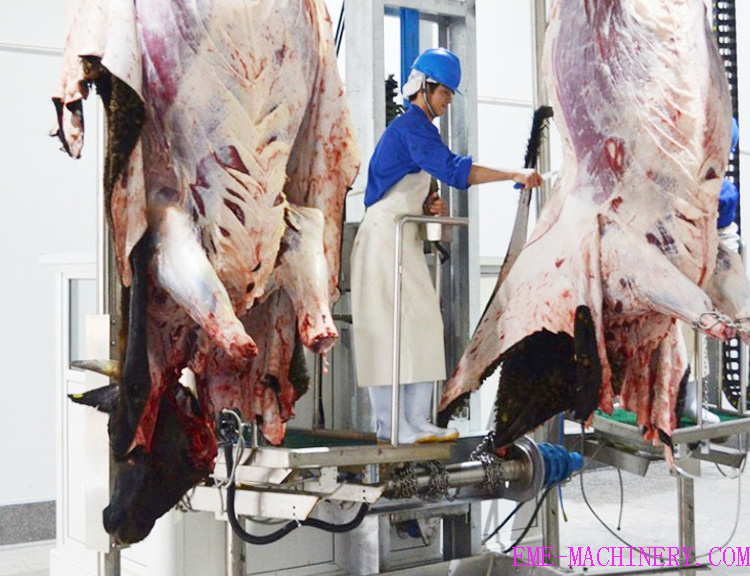

Which mainly used to removing skin from cattle carcass and the skin will complete be removing without
Broken, and the machine must be used with over head convey rail, the detail data as introduction as following:
Working principle:
the machine driving by hydraulic system, and include main structure, cylinder, motor and skin removing roller,
When the cattle have finished fixed on skin removing position then pressing button " up" and the skin removing
Roller will up to appoint position for skin removal through hydraulic driving, then the cattle skin have finished
Faxed on machine then press button " down", the complete cattle skin will be removal from hind legs to head
(the cattle carcass hind legs will be hanged on over head convey rail) through skin removing roller descend,
Meanwhile two worker will used knives to separate skin from beef when roller descend.
the machine detail data as following:
Rated voltage: 380VAC
Motor rotate speed: 100~2000R/Min, Cylinder journey: 2200mm
Controlling voltage: 24VDC
Hydraulic pressure station power: 5.5Kw
Capacity: 30-50cattle/h
Hydraulic pressure station working pressure: 6.3-8Mpa
Out size: 1500X635X4936mm(LXWXH)
? Hot galvanized steel pole
? Stainless steel skin removed roller
? Stainless steel chain
