| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | CE |
| Weight: | 260kg |
| Brand Name: | Xingtai |
| Condition: | New |
| Dimension(L*W*H): | 1200x800x1100mm |
| Model Number: | RD-1011 |
| Place of Origin: | China (Mainland) |
| CNC or Not: | Normal |
| Rated Power: | 12KW |
| Wire rope: | 6-32mm |
Quick Details
Specifications

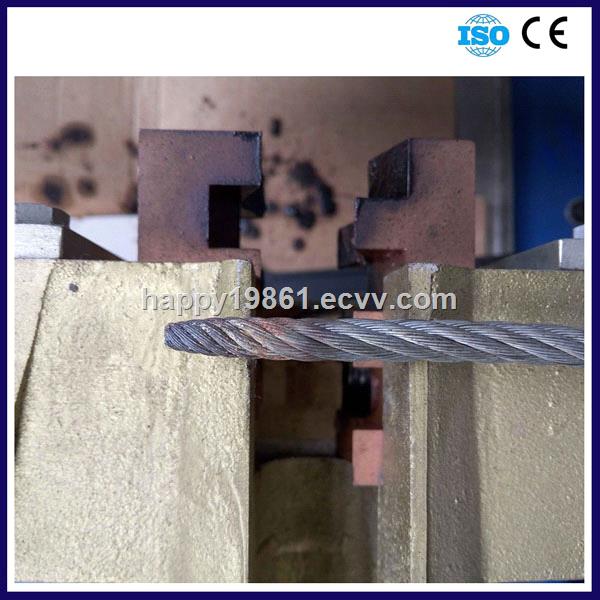

RD series wire rope annealing machine, with high melting speed and easy to operate, are applicable for melting steel rope of various dimensions, especially elevator ropes, mine ropes, crane cables and other high quality steel ropes. The steel ropes melted ar neat and smooth with conical and spiral ends. these machines are mainly applied by steel rope manufactures and customers.
Product features:
1. Cleverish in shape and convenient to move
2. with a wide range in melting diameter, the steel ropes can be melted without replacing any parts within the range of prescribed diameter.
3. Easy to operate, no spanner is needed for tightening device, and the welding head is nice in apperance
4. Low working power, energy saving and safe in use.
Mode No. |
RD-1010 |
RD-1011 |
RD-1012 |
RD-1013 |
Rated Power (KW) |
5KW |
12KW |
50KW |
100KW |
Burn out Range |
3-16mm |
6-32mm |
20-40mm |
28-60mm |
Dimensions(mm) |
700x400x1200 |
1200x800x1100 |
1600x1200x1800 |
1600x1200x1800 |
Weight |
75kg |
260kg |
550kg |
600kg |
