Classification: | Laboratory Heating Equipments |
---|---|
Brand Name: | Vacuum Atmosphere Furnace |
Classification: | Laboratory Heating Equipments |
name: | vacuum furnace |
Working temperature: | 1000C |
heating rate: | 0~30C/MIN |
Place of Origin: | China (Mainland) |
Model Number: | SGM.V6/10 |
Quick Details
Specifications

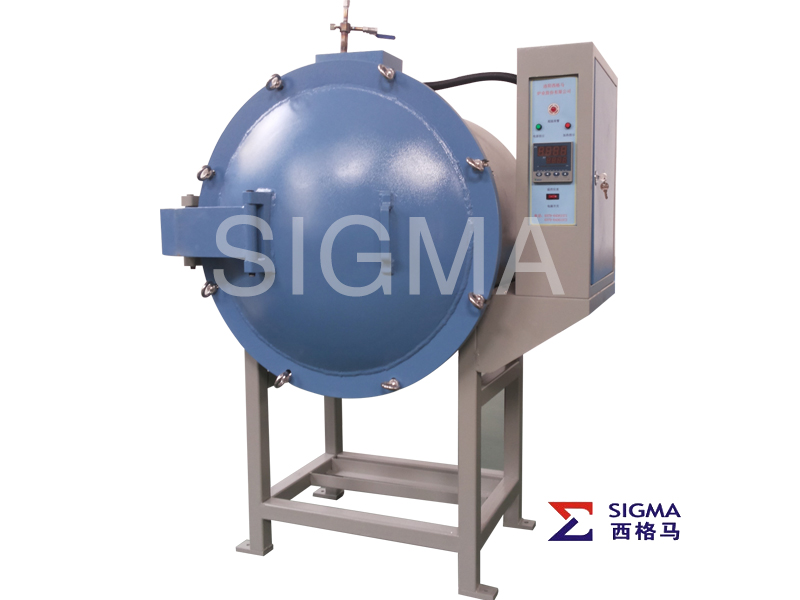

Vacuum atmosphere box resistance furnace 1600-1700C
SGM series of high-temperature laboratory furnaces have the perfect design, possess many patents, the safety, reliability and practicability of which all show the best performance.
Max. Temp |
1600C |
Vacuum Value |
-0.098MPa |
Heating Rate |
5-15/min |
Power |
380V |
Accuracy |
±1C |
over-temperature Value |
<3C |
Programmable period |
50 |
◆the furnace body is made of superior double-layer carbon steel which has the advantages of heat insulation and low temperature.
◆the surface uses the pressure welding technology and double-door structure.
◆Quick opening and package design makes it easy to load and unload materials.
◆Adopt the patent structure of double furnace chambers and special furnace-top building technology which have the advantages of fast heating, not collapsing in over-high temperature or dropping ashes in high temperature.
◆Use the vacuum forming technology to produce the inorganic fiber as heat preservation materials and special insulation design.
◆MoSi2 rods are set in both sides of the chamber which is easy to change.
SCR control; transformer regulating; PID parameter self-setting; manual or automatic switch without interference; over-temperature alarm; the temperature compensation and correction; automatically power off when the furnace door is opened; the built-in parameter password to control the furnace.
◆Multiple protection design allows good safety and long working life.
◆Users could select paperless recorder or RS232 communication interface to realize the field control through the computer and record the historical data and heat-rising curves without paper.
◆Field debugging, training and fire-prevention door are offered for free.
◆Users can select the rotary-vane vacuum pump.
◆Users can select glass rotor flowmeter or mass flowmeter and import and export pipeline.
Model |
Volume |
Max.Temp |
Chamber size(mm) (WXLXH) |
Vacuum degree(MPa) |
Power
(KW) |
Voltage (V) |
SGM.V6/16 |
6L |
1600℃ |
150*300*120 |
-0.098 |
8 |
380 |
SGM.V11/16 |
11L |
1600℃ |
200*300*180 |
-0.098 |
12 |
380 |
SGM.V15/16 |
15L |
1600℃ |
200*400*180 |
-0.098 |
16 |
380 |
SGM.V25/16 |
25L |
1600℃ |
250*400*250 |
-0.098 |
20 |
380 |
SGM.V38/16 |
38L |
1600℃ |
300*500*250 |
-0.098 |
25 |
380 |
SGM.V6/17 |
6L |
1700℃ |
150*300*120 |
-0.098 |
6 |
380 |
SGM.V11/17 |
11L |
1700℃ |
200*300*180 |
-0.098 |
8 |
380 |
SGM.V15/17 |
15L |
1700℃ |
200*400*180 |
-0.098 |
11 |
380 |
SGM.V25/17 |
25L |
1700℃ |
250*400*250 |
-0.098 |
14 |
380 |
SGM.V38/17 |
38L |
1700℃ |
300*500*250 |
-0.098 |
20 |
380 |
