| Brand Name: | Optech |
|---|---|
| Wavelength: | - |
| Data Rate: | - |
| warranty: | 1 year |
| Connector: | - |
| Model Number: | OPSFPP-T |
| Place of Origin: | Taiwan |
Quick Details
Specifications

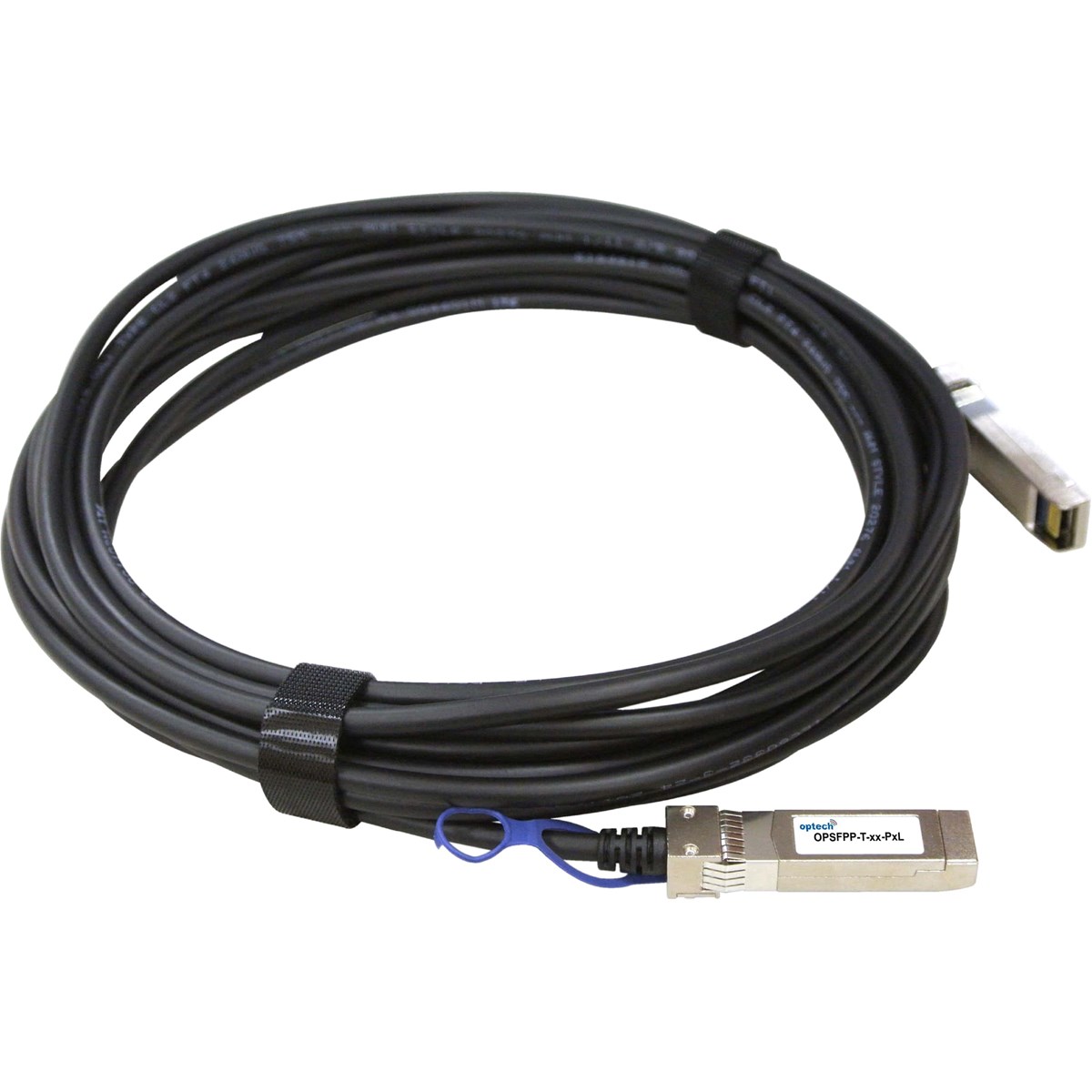

Optech SFP+ (Small Form-factor Pluggable Plus) 10 Gbps Interconnect are designed to meet the requirements of Small Form Factor industry standard SFF- 8431. And these SFP+ interconnects are designed to support the bandwidth transmission requirements and applications as defined by 10 Gbps Gigabit Ethernet and 8G, 10G Fibre Channel over Ethernet ( FCoE) specifications.
Currently SFP+ cable assemblies are available for 30 AWG, 28 AWG, 26 AWG and 24 AWG cables. Standard lengths are from 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, 5m, and 7m. the Custom lengths are available upon request.
Features
* Compliant to SFF 8431 SFP+ MSA
* Compliant with SFP MSA (INF-8074i)
* Support for multi-gigabit data rates up to 10.5Gbps
* Support for 1x, 2x, 4x and 8x Fiber Channel data rates
* Hot Pluggable SFP 20PIN footprint
* Serial ID module on MOD(0-2)
* AC coupling of PECL signals
* EMI/EMC performance
* Low Power consumption<0.5W
* Power Supply: +3.3V
* Temperature Range: 0~ 70 °C
* RoHS Compliant
Applications
* Storage Area Networks( SAN), Network Attached Storage and Storage Servers
* 1G/2G/4G/8G Fiber Channel
* Switched fabric I/O such as ultra high bandwidth switches and routers
* Data center cabling infrastructure
* High density connections among network equipments
