| Brand Name: | Optech |
|---|---|
| Wavelength: | 1310nm |
| Data Rate: | 1.25Gb/s |
| warranty: | 1 year |
| Connector: | MTP/MPO connector |
| Model Number: | OPCS-MX1-85-CB |
| Place of Origin: | Taiwan |
Quick Details
Specifications

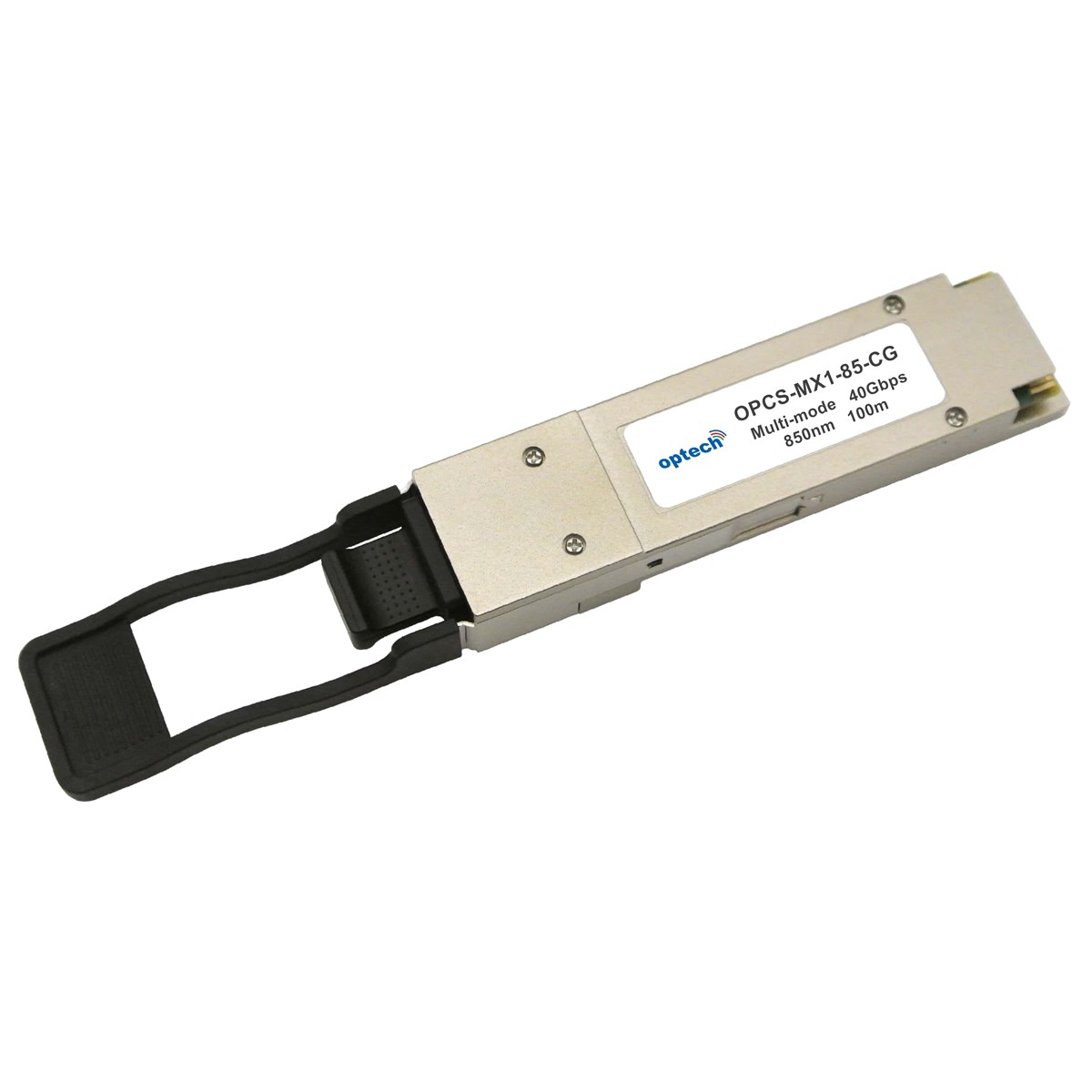

Optech 40Gbps QSFP+ transceivers Are compliant with QSFP+ MSA SFF-8436. It supports 4 channels at 11.2Gpbs per Channels. Our QSFP+ transceivers have high reliability and performance for data Centers deployment, which can increase density and optimize your networking's Capability.
Features
- 4 independent full-duplex channels
- up to 11.2Gb/s data rate per channel
- MTP/MPO optical connector
- QSFP+ MSA compliant
- Digital diagnostic capabilities
- up to 100m transmission on OM3 multimode ribbon fiber
- CML compatible electrical I/O
- Single +3.3V power supply
- Operating case temperature: 0 to 70oC
- XLPPI electric interface
- Maximum power consumption 1.5W
- RoHS-6 compliant
Applications
- Rack to Rack
- Data Center
- Infiniband QDR, DDR and SDR
- 40G Ethernet Absolute Maximum Ratings Parameter Symbol Min.
- 4 independent full-duplex channels
- up to 11.2Gb/s data rate per channel
- MTP/MPO optical connector
- QSFP+ MSA compliant
- Digital diagnostic capabilities
- up to 100m transmission on OM3 multimode ribbon fiber
- CML compatible electrical I/O
- Single +3.3V power supply
- Operating case temperature: 0 to 70oC
- XLPPI electric interface
- Maximum power consumption 1.5W
- RoHS-6 compliant
Applications
- Rack to Rack
- Data Center
- Infiniband QDR, DDR and SDR
- 40G Ethernet Absolute Maximum Ratings Parameter Symbol Min.
