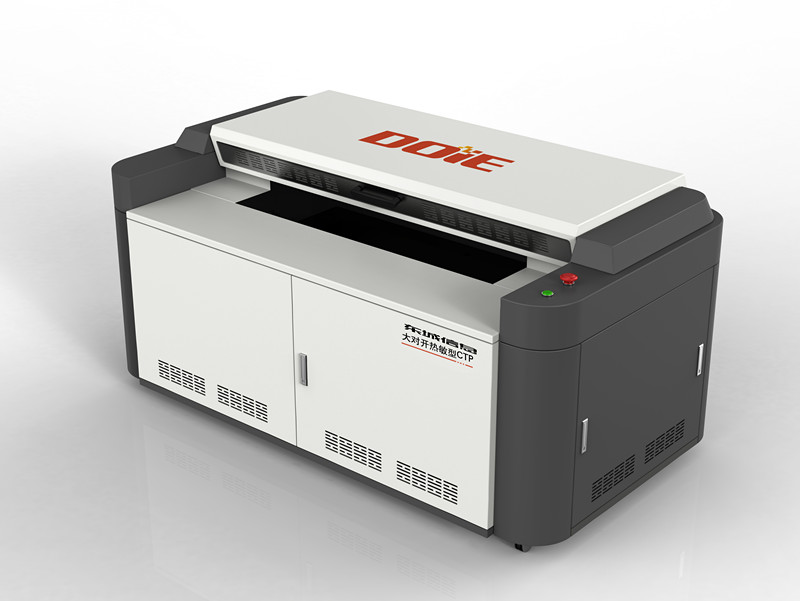

DOIE Thermal-CTP uses the most advanced and stable V model guide rail fixed position technology, using automatic loading way and 830nm laser diode, made the high energy field value of thermal material development, high development quality, after baking, the thermal plate could prints about million times.



DOIE Thermal-CTP is full digital controlled technology, not only is a mature commercial products and the source of profits, but also to the prepress printing integration technology development which have the immeasurable influence and realistic significance.



Specifications:



Model: X-0322T

Light Channels: 32

Output Speed(P/h): 17

Plate size:1030mm; 800mm

Light Source: 830 nm Laser Diode

Output Resolution (dpi): 2400

Dot Reproduction: 1%~99%

Register Accuracy (mm): less than 0.01

Plate Size (mm):  Max. 1160;940;Min. 450;320

Suitable Plates: Various thermal ctp plates

Plate Thickness (mm): 0.15~0.30

Plate Loading: Automation(Standard Set) (Vacuum Fixation)

Plate  Unloading:Automation (Vacuum Fixation)

Plate Position Accuracy (mm): 0.2

Plate Balance: Automatic Balance

Data Interface: USB,1000Mbit/s

Ambient: Temperature 25 centigrade (3 centigrade more or less)

                   Humidity: 20~80%(Non-condensing)

Machine Dimension (mm): L220; W1100; H1050

Net Weight (kg): 1500

Power Supply: less than 6KW/220V (5% more or less), 50/60Hz
