| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | DOIE |
| Automatic Grade: | Automatic |
| Type: | Image Setter |
| Condition: | New |
| Warranty: | 2 years |
| Certification: | ISO9001 |
| Weight: | 1500 kg |
| Voltage: | less than 6KW/220V (5% more or less), 50/60Hz |
| Model Number: | X-0322U |
| Place of Origin: | China (Mainland) |
| Plate Type: | Other |
| Usage: | Paper Printer,Label Printer,Card Printer |
| Color & Page: | Multicolor |
| Dimensions(L*W*H): | L220; W1100; H1050 |
| name: | DOIE UV CTP |
Quick Details
Specifications

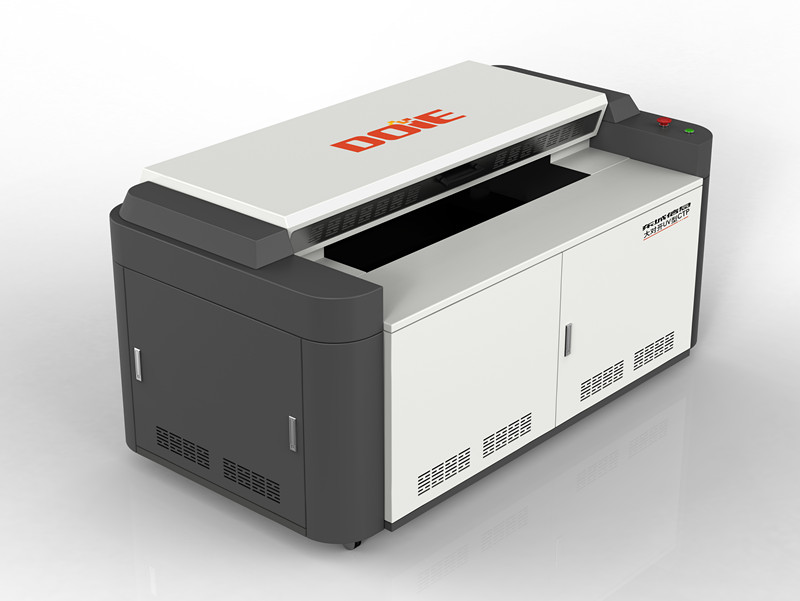

DOIE UV CTP
DOIE UV-CTP uses the most advanced and stable guide rail technology, using automatic loading way and 405nm laser diode, digital process workflow, high precision dot, low cost UV plates, reducing the cost.
DOIE UV-CTP uses special laser diode and internal drum design, to ensure the biggest energy transfer efficiency and exposure precision.
Specifications:
Model: X-0322U
Light Channels: 32
Output Speed(P/h): 17
Plate size: 1030mm; 800mm
Light Source: 405 nm Laser Diode
Output Resolution (dpi): 2400
Dot Reproduction: 1%~99%
Register Accuracy (mm): less than 0.01
Plate Size (mm): Max. 1160 plus 940;Min. 450 plus 320
Suitable Plates: Various UV-ctp,ctcp Plates
Plate Thickness (mm): 0.15~0.30
Plate Loading: Automation(Standard Set) (Vacuum Fixation)
Plate Unloading:Automation (Vacuum Fixation)
Plate Position Accuracy (mm): 0.2
Plate Balance: Automatic Balance
Data Interface: USB,1000Mbit/s
Ambient: Temperature 25 centigrade (3 centigrade more or less)
Humidity: 20~80%(Non-condensing)
Machine Dimension (mm): L2200; W1100; H1050
Net Weight (kg): 1500
Power Supply: less than 6KW/220V (5% more or less), 50/60Hz
DOIE UV CTP
