| Application: | Laser Engraving |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CCC,CE,GS,ISO,SGS,UL |
| Dimension(L*W*H): | 600*900mm |
| Model Number: | NC-6090 |
| Brand Name: | NICE-CUT |
| Place of Origin: | China (Mainland) |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Wood |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Engraving Speed: | 300mm/s |
| Engraving Area: | 600*9900mm |
| Laser Type: | CO2 |
| Condition: | New |
| type: | small laser cutting |
| guide rail: | square guide rail |
| transmission: | ball screw transmisison |
| table: | honeycomb/T-blade table |
| up/down: | optional |
| lens and mirrors: | imported high quality |
| cooling method: | water cooling |
| dust collector: | exhaust fan |
| supplier: | factory direct sale |
Quick Details
Specifications

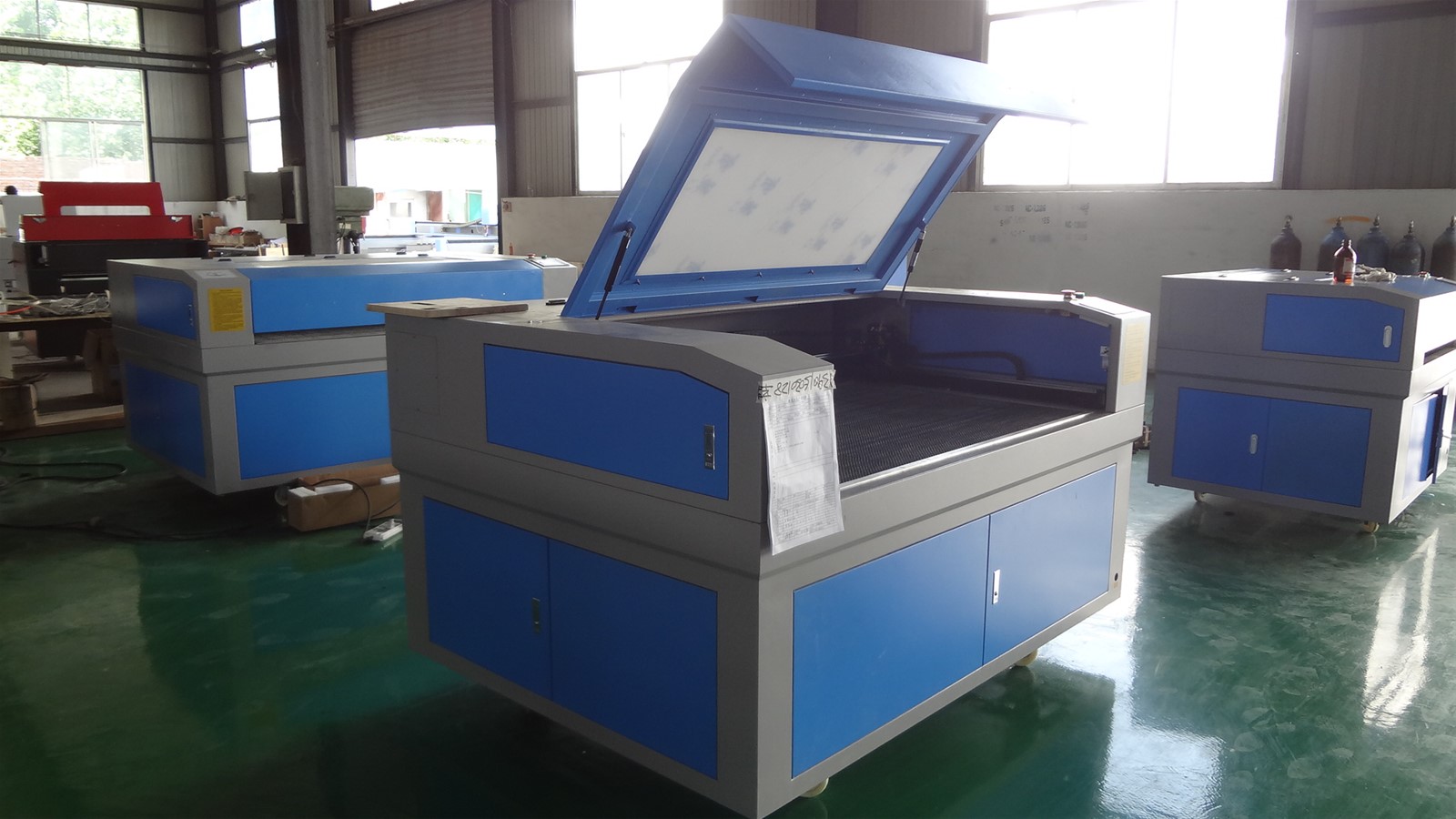

NC-6090 3D Laser Surface Engraving Machine small laser cutting
Applicable Industry:
Billboard, artistic gifts, crystal ornaments, paper-cut engraving, bamboo embossment,printing,garments and leather industries, embroidery,inrerior decoration and frame fabrication,etc.
Appliable materials:
Non-metal such as double-color sheets,acrylic,glass,wood plank,paper,leather,rubber,marble,granite and tiles,etc.
Parameters :
Important parts show:
Samples show:
Thanks for your reading and Welcome to visit our factory !!!
Applicable Industry:
Billboard, artistic gifts, crystal ornaments, paper-cut engraving, bamboo embossment,printing,garments and leather industries, embroidery,inrerior decoration and frame fabrication,etc.
Appliable materials:
Non-metal such as double-color sheets,acrylic,glass,wood plank,paper,leather,rubber,marble,granite and tiles,etc.
Parameters :
|
Parameter
|
|
|
Type
|
NC-E6090 |
|
Engraving Area
|
600×900mm
|
|
Laser Power
|
60W CO2 laser tube
|
|
Working table
|
Slated Aluminum Anodized
(Motorized up and down working table)
|
|
Motor and drivers
|
stepper motor and drivers
|
|
Control system
|
DSP control system with USB interface
|
|
Resetting positioning accuracy
|
≤0.01mm
|
|
Linear Guide
|
TAIWAN HWIN linear guide
|
|
Minimum Shaping Character
|
1.5×1.5mm
|
|
Power supply
|
220V±10% 50HZ or 110V±10% 60HZ
|
|
Reflect lens and focus lens
|
3 reflect lens+1 focus lens
|
|
Software supported
|
ArtCut, CorelDraw, PhotoShop, AutoCAD(output directly)
|
|
Graphic format supported
|
PLT, DXF, BMP, JPG, GIF, PGN, TIF
|
|
Laser tube Cooling
|
Water chiller
|
|
Dust and smoke clean
|
Large air pump+ exhaust fans
|
|
Typeset Software
|
Laser cut5.3 with English version
|
|
laser point positioning
|
Red dot laser point positioning
|
|
Recommended Spare Parts / Consumables
|
Laser Tube and Lens(Suggest additional sets)
|
|
CERTIFICATE
|
CE CERTIFICATE
|
|
Other parts for option
|
Larger power laser tube,Water pump, honey comb working table, Rotary attachment, PCI card control system, AUTO Focus
|
Important parts show:
Samples show:
Thanks for your reading and Welcome to visit our factory !!!
