| Type: | TFT |
|---|---|
| Brand Name: | TOPWAY |
| Interface Type: | LVDS,VGS,HDMI |
| Resolution: | 320x240 |
| application: | TFT |
| Model Number: | LMT032DNAFWD-NBN |
| Place of Origin: | China (Mainland) |
| Screen Dimension: | 3.2 |
Quick Details
Specifications
LCD Module
3.2 inch 320xRGBx240 TFT
-QVGA 65K colors
-8-bit MCU Interface
-Single Power Supply
-Low Power Consumption
-Built-in TFT Controller
--LED Backlight Driver and touch panel optional.
3.2 inch 320xRGBx240 TFT
-QVGA 65K colors
-8-bit MCU Interface
-Single Power Supply
-Low Power Consumption
-Built-in TFT Controller
--LED Backlight Driver and touch panel optional.
| Description | |
| Product Name | TFT LCD Module with touch screen 320 X 240 |
| Model No. | LMT032NDAFWD |
| Number of dots | 320 x 3(RGB) x 240 |

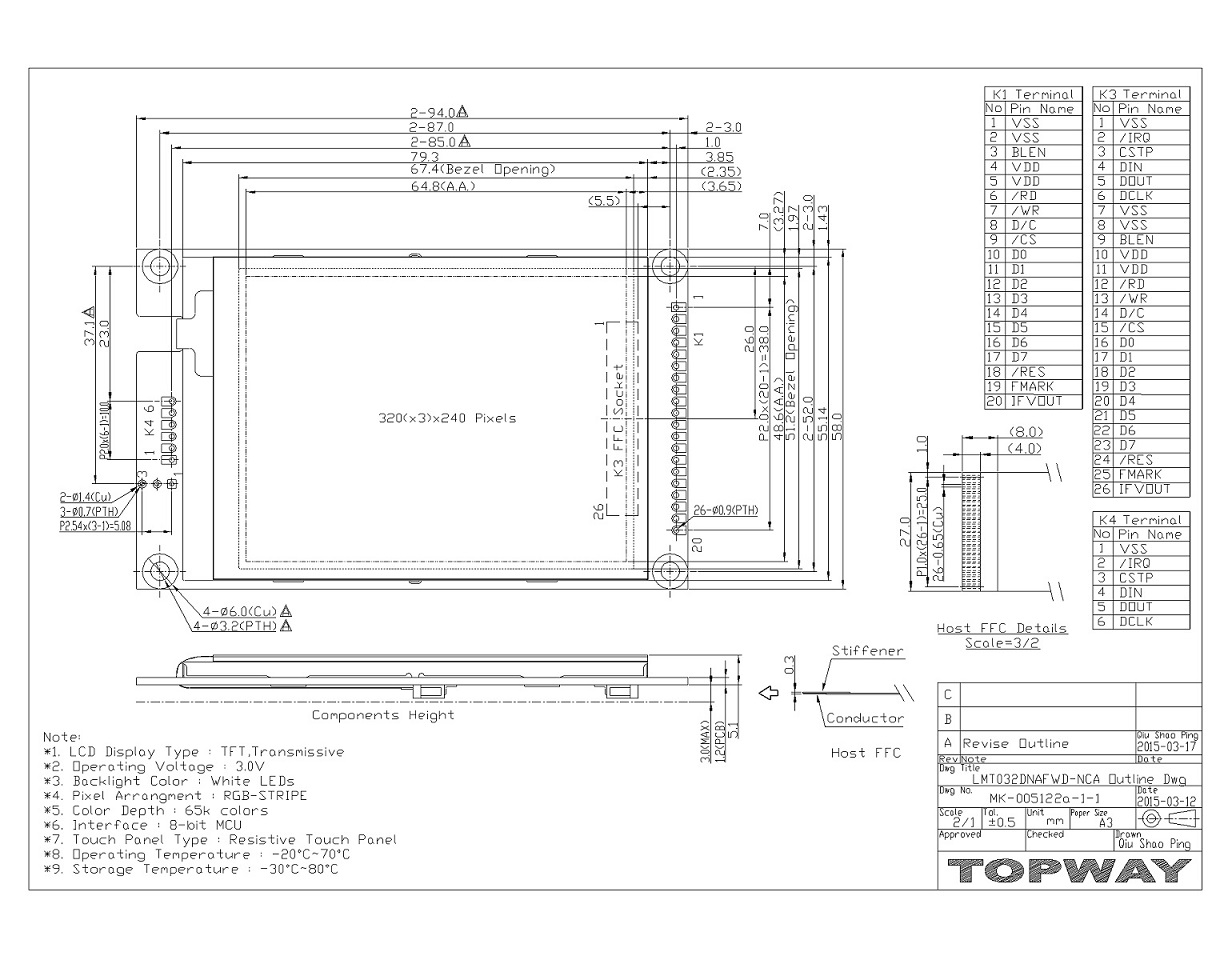

| Outline Dimension(mm) | 90.0 x 58.0 x 5.9 |
| Active Area(mm) | 64.8 x 48.6 |
| Backlight | LED |
| Power supply | 3.3V |
| Interface | 8-bit data MCU |
| Color Depth | 65K |
| Pixel Pitch(mm) | 0.2025 x 0.2025 |
| Display Mode | Transmissive / normal white |
| Viewing Direction | 9 o'clock |
| Touch panel | Optioanl |
| Operating Temp | -20o C~70o C |
| Storage Temp | -30o C~80o C |
