| Item Type: | Garden Lights |
|---|---|
| Light Source: | LED |
| Model Number: | TH-608 |
| Brand Name: | THE-ONE |
| Place of Origin: | China (Mainland) |
| Certification: | CCC,CE,Energy Star,GOST,REACH,RoHS,SASO,VDE |
| IP Rating: | IP65 |
| Lamp Body Material: | Aluminum Alloy |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(℃): | |
| Beam Angle(°): | 15,25,30,38,45(Optional) |
| Color Temperature(CCT): | Cool White |
| CRI (Ra>): | 90 |
| Lamp Luminous Efficiency(lm/w): | 8000 |
| Lamp Luminous Flux(lm): | 8000 |
| Lamp Power(W): | 15 |
| Input Voltage(V): | 90-260 |
| LED Light Source: | 12pcs-15w 5-in-1 LEDs RGBWA |
| Production name: | TH-608 12X15W 5in1 New Housing Waterproof LED Wall Washer |
| Producion series: | LED wall washer |
| IC Chip: | Epistar |
| Feature: | with individual control effect or without individual control |
Quick Details
Specifications
TH-608 12X15W 5in1 New Housing Waterproof LED Wall Washer
Technical Parameter :
|
Product Name |
TH-608 12*15w LED Bar Light |
|
Product Model |
TH-608 |
|
Voltage |
AC90-260V |
|
Frequency |
50-60Hz |
|
Power Consumption |
230w |
|
LED POWER |
15W |
|
LED QTY' |
12pcs |
|
LED Color |
RGBWA |
|
LED Life Time: |
over 50,000 hours |
|
LED BRAND |
Epistar |
|
Feature |
with individual control effect or without individual control |
|
Control System |
DMX512/ Master-slave/Sound activated/ auto mode |
|
Control Channels |
5/ 8 CH (without individual control), 5,8,60 CH (with individual control effect) |
|
Dimmer |
0~100% linearly adjustable |
|
Strobe |
1-25times/sec |
|
LED angle |
15,25,30,38,45(Optional) |
|
Guarantee |
1 years warranty |
|
Environment Temperature |
-18°~ 40° |
|
Light body |
aluminum case |
|
IP Grade |
IP65 |
|
Net Weight |
11.5kg |
|
Gross Weight |
13kg |
|
Packing Size |
110*305*390 mm (1pc/carton) |
|
Certification |
CE,RoHS |
Feature:
Always Seven colors: Nine levels brightness
adjustment with Red, Yellow, Green, Blue, Cyan, Purple, White seven colors.
Master/Slave: Several equipment connecting together, Slave work per Master.
DMX dimming: Several light equipment get the distribution DMX address signal,
the output data in accordance with DMX controller change.
Smooth RGBWA Color Mixing System
Electronic Linear Dimmer: 0--100%
High Speed Electronic Strobe: 0--20/S
Full Color Mixing in Standalone, Master/Slave and DMX modes ,Sound mode.
No Fan and No Noise
Indoor or Outdoor Use Both
IP65 Waterproof Protection
Irradiation distance:20M
Our update technology on this light:
1.Update the program, which will more stable.
2.Waterproof performance will be stronger and better than before .
3.The cooling function will be 30% higher than before, especially depending on the special design lighting house .
4.The light will look more fashion
5.Install new driver , more stable than before.
Description:
This bar light is selling very well ,customers like their slim body and good performance on waterproof, of course, perfect dimmer system is their favorite too.What's more , our new update programme is with individual control which good for using in entertainment applications, night club, fashion show, band performance, also with sound control function, it can work with music.

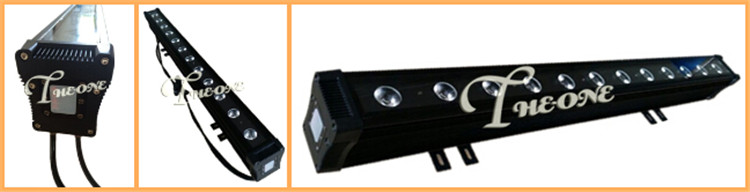

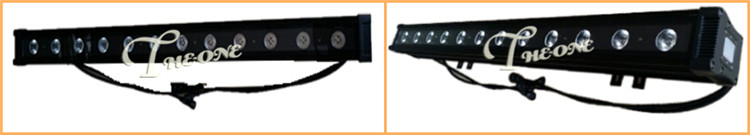

More detailed pictures:

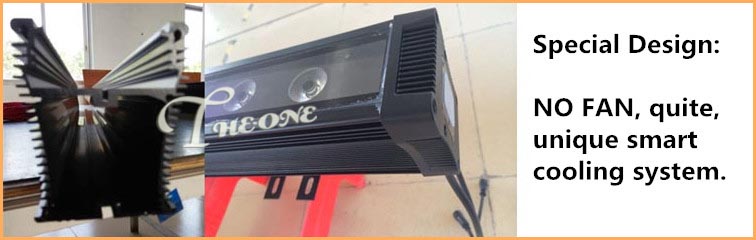

Special Design of Lighting House:

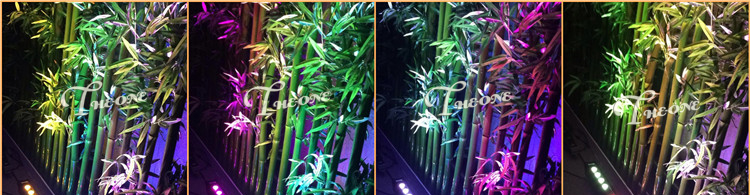

Lighting Effect:

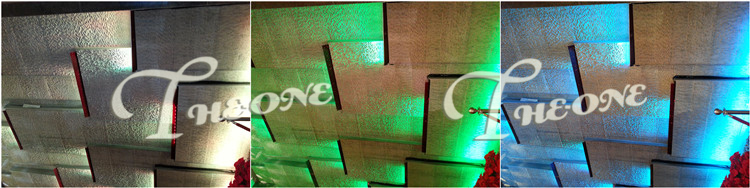

Individual Control Effect :
