| Place of Origin: | China (Mainland) |
|---|---|
| CNC or Not: | CNC |
| Condition: | New |
Quick Details
Specifications

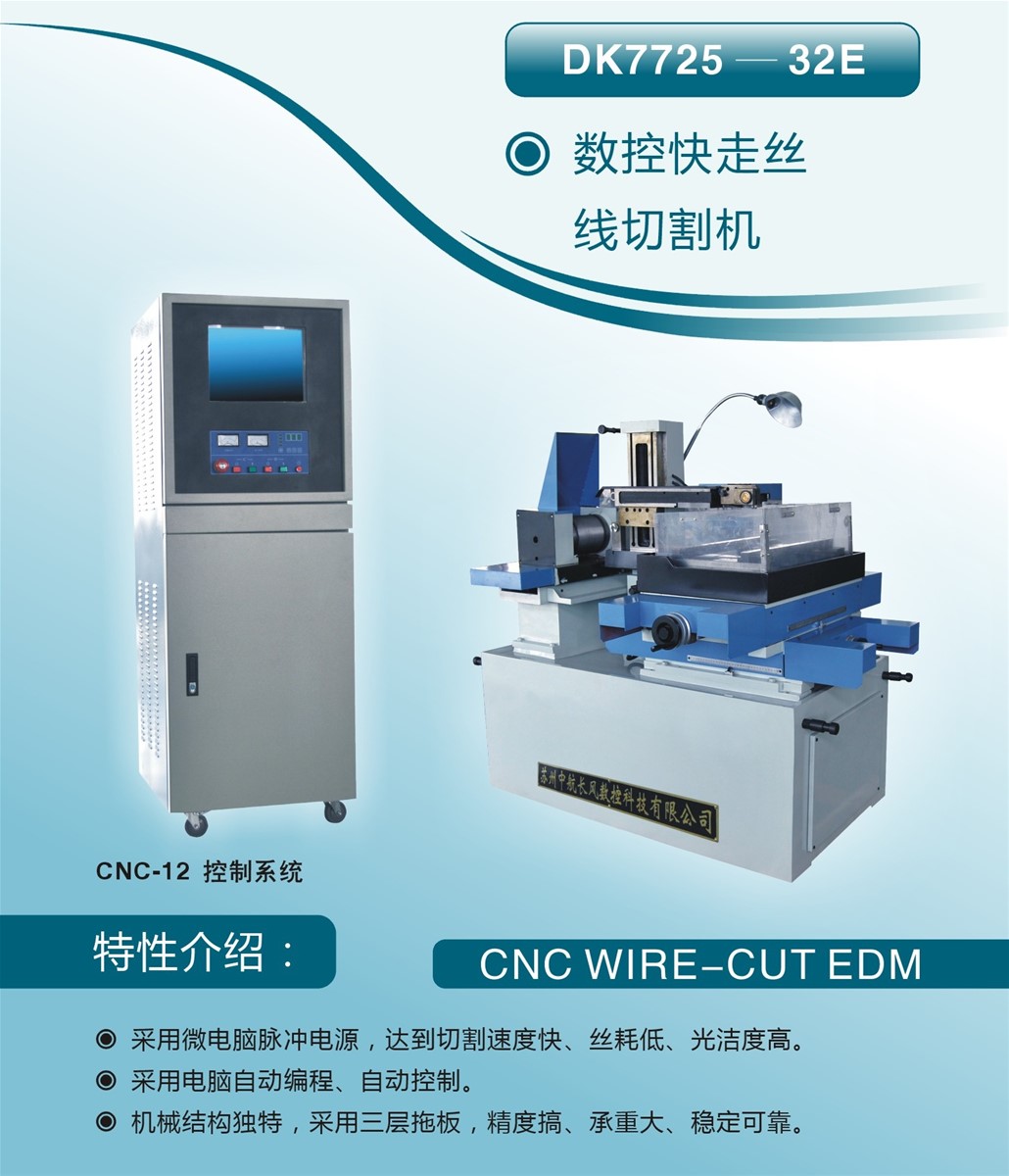

CNC Wire Cutting EDM Machine Major Feature of DK77 serial CNC EDM wire-cutting machine :
Lies in that it has no special requirement to the processed metal material properties.
in principle, it can process all the conductive materials such as super-hard and hard alloy, quenching materials, stainless steel ductile materials, various
Magnet steel fragile materials, uneasily-clamped thin wall spares etc. Main use: It can process various molds such as rubber
and plastic molds, punch die and so on. It can be used for the special materials of fragile materials, stainless steel ductile materials, super-hard materials. and the complex-shape spares such as the tapered upper , lower speciallyshaped spares, etc, also can
Be machined
in principle, it can process all the conductive materials such as super-hard and hard alloy, quenching materials, stainless steel ductile materials, various
Magnet steel fragile materials, uneasily-clamped thin wall spares etc. Main use: It can process various molds such as rubber
and plastic molds, punch die and so on. It can be used for the special materials of fragile materials, stainless steel ductile materials, super-hard materials. and the complex-shape spares such as the tapered upper , lower speciallyshaped spares, etc, also can
Be machined
Parameters |
Unit |
DK7725E |
Table Size (LxW) |
mm |
550×400 |
Table Travel (XxY) |
mm |
250×320 |
Max. Cut Height |
mm |
300 |
Max. Cut Taper |
Degree/mm |
±3°/80 |
Max. Speed |
Mm2/min |
160 |
PrecisioCut n (Octagon) |
mm |
<0.015 |
Max. Current |
A |
8 |
Roughness (Multi-Cut) |
um |
<2.5 |
Wire Diameter |
mm |
0.15-0.20 |
Wire Speed |
M/min |
4-11 |
Table Load |
kg |
300kg |
Working Solution |
NG-1Emulsifying soap/JARA-2 | |
Water Tank |
L |
40 |
Voltage |
3N-380V/50Hz | |
Rated Power |
KVA |
1.3 |
Wire Frame |
Adjustable | |
Dimension (LxWxH) |
mm |
1450×1050×1250 |
Machine Weight |
T |
1.2 |
Controller |
HF/Autocut | |
