General Description

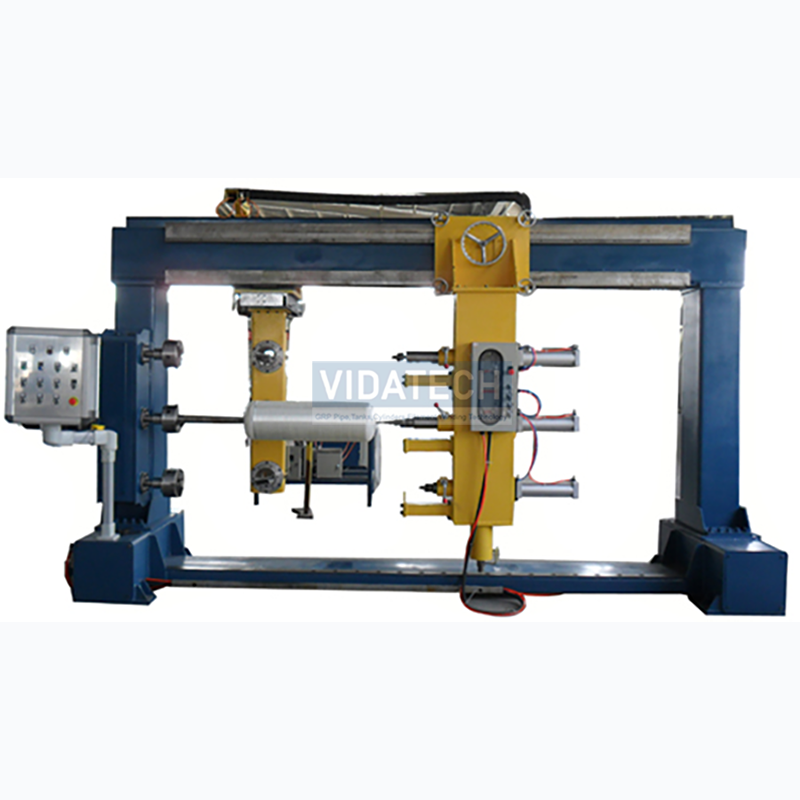

This machine is portal type filament winding machine with 1-4movement axis and 1-6 working spindles.The roving(glass fiber/carbon fiber) impregnated with resin will be on mandrel by the movement of mandrel rotation,trolley,carriage horizontal movement,cross feed and roving comb rotation under the winding pattern control softwared.
DN50mm-DN500mm 12-4 axis winding machine
Configuration of 1-4 axis winding machine:
1. Gantry type machine framework
2. Mandrel drive system
3. Carriage
4. Drum type resin bath with temperature control and roving feed back system.
5. Electronic tension controller roving creel (Servo motor)
6. Three axes serial converter for speed adjustment system
7. Computer controlled system and main control panel
