| Type: | Graphic |
|---|---|
| Brand Name: | TOPWAY |
| Interface Type: | Serial |
| Resolution: | 122x32 |
| application: | LCM |
| Model Number: | LM12232A |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

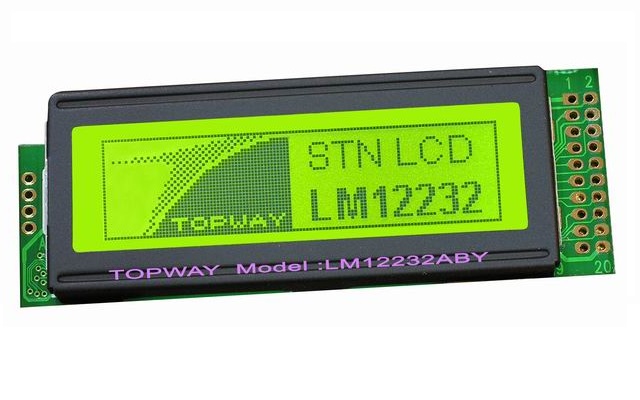

LCD Display COG Module122*32:
TOPWAY LM12232A
Display type: STN-YG with YG backlight
Module Size: 69.0*25.4*8.6mm
Controller IC: S1D15200D00
Operating temperature: -20 to +70 C
Storage temperature: -30 to +80 C
Viewing direction: 6 o clock
TOPWAY LM12232A
Display type: STN-YG with YG backlight
Module Size: 69.0*25.4*8.6mm
Controller IC: S1D15200D00
Operating temperature: -20 to +70 C
Storage temperature: -30 to +80 C
Viewing direction: 6 o clock
| Item | Description |
| Product Name | LCD Display COG Module122*32 |
| Model No. | LM12232A |
| Dot Format | 122 x 32 |
| Outline Dimension(mm) | 69.0*24.4*8.6 |
| Viewing Area(mm) | 52.0*15.0 |
| Dot Pitch( mm) | 0.37*0.38 |
| Viewing Angle | 6 O' clock |
| LCD Type | STY-YG |
| Backlight | YG backlight |
| Driver IC | S1D15200D00 |
| Power supply | 5V |
| Interface | Parallel |
| Operating Temp | -20 C~70 C |
| Storage Temp | -30 C~80 C |
