| Special Features: | with audio |
|---|---|
| Technology: | Pinhole |
| Sensor: | CMOS |
| Style: | Mini Camera |
| Type: | Analog Camera |
| Model Number: | AV-M615CPL |
| Brand Name: | MiyeaEye |
| Place of Origin: | China (Mainland) |
| Sensor: | 1/3' CMOS CCD Sensor |
| Resolution: | 600TVL |
| Lens: | silver pinhole screw(black in option) |
| Microphone: | Yes |
Quick Details
Specifications

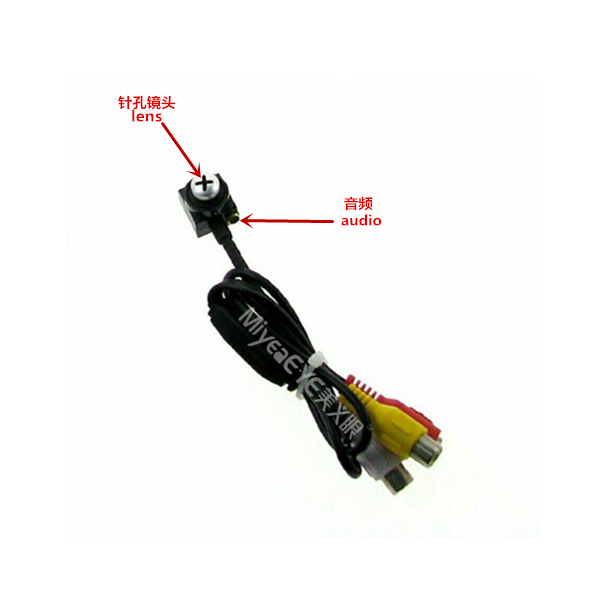

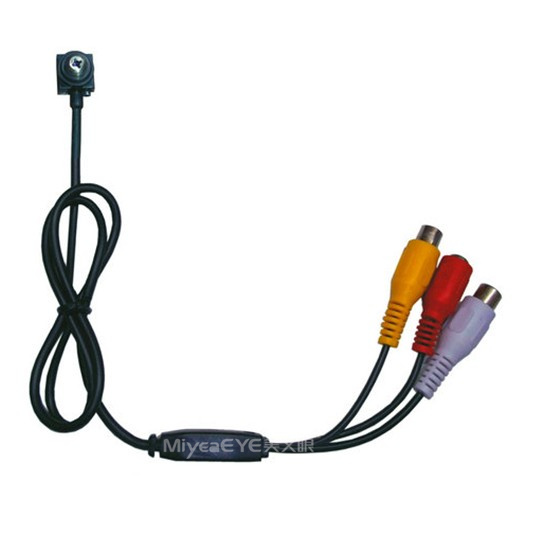

600TVL 1/3' ' color CMOS Phillips Screw Head Pinhole Camera
Miniature Spy Security Camera Feature:
1/3' ' CMOS CCD;
Miniature Spy Security Camera Feature:
1/3' ' CMOS CCD;
600 TV Lines, 0.5Lux;
Metal Casing;
Detailed Specifications Of The Parameters
|
Model
|
AV-M615CPL
|
|
Image Device
|
1/3" color CMOS sensor
|
|
Horizontal Resolution
|
600TVL
|
|
Minimum Illumination
|
0.5Lux
|
|
Effective Pixels
|
PAL: 500(H)*582(V); NTSC: 510(H)*492(V) |
|
Scanning System
|
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
|
|
S/N Ratio
|
More Than 48dB(AGC off)
|
|
Electronic Shutter
|
PAL: 1/50~1/100,000 Sec; NTSC: 1/60~1/100,000 Sec, auto
|
|
Gamma Characteristic
|
0.45
|
|
White Balance
|
Auto
|
|
Lens Option
|
Screw pinhole lens
|
|
BLC
|
Auto
|
|
AGC
|
Auto
|
|
Sync System
|
Internal Synchronization
|
|
Video output
|
1Vp-p 75 Oms , Negative
|
|
Power Consumption
|
12V± 10%DC, 50mA
|
|
Operation Temperature
|
-10℃ ~ + 50℃, RH 95% Max
|
|
Storage Temperature
|
-20℃ ~ + 60℃, RH 95% Max
|
|
Housing
|
Black
|
|
Dimension
|
15x15mm
|
|
Weight
|
30g
|
|
Supplied Accessories
|
User manual, camera with cable
|
