| Weight: | 7.5Kg |
|---|---|
| Dimensions: | 30cm*20cm*10cm |
| Rated Voltage: | 0 |
| Power Source: | Hand |
| Brand Name: | Goshine ME |
Quick Details
Specifications

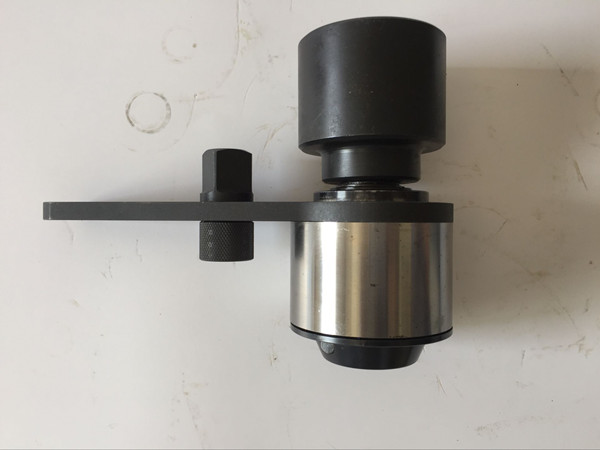

GXM series Torque Multiplier is a torque multiplying device. the gearing design allows for
A high torque output with minimal input. It is applied for a difficult operation that other big
Wrenches can not complete. the operation is simple, and it saves the manpower.
A high torque output with minimal input. It is applied for a difficult operation that other big
Wrenches can not complete. the operation is simple, and it saves the manpower.
Model |
GXM-10W |
GXM-20W |
GXM-35W |
GXM-55W |
GXM-75W |
GXM-100W |
D (mm) |
80.5 |
80.5 |
96.5 |
117 |
121 |
143 |
H(mm) |
88 |
105 |
163 |
187 |
195 |
205 |
H (mm) |
49 |
76 |
94 |
107 |
107 |
115 |
Input Square Drive |
1/2'' |
1/2'' |
1/2'' |
1/2'' |
1/2'' |
1/2'' |
Output Square Drive(B) |
1'' |
1'' |
1'' |
1 1/2'' |
1 1/2'' |
1 1/2'' |
Gear Ratio |
1:5 |
1:16 |
1:21.5 |
1:26 |
1:30.4 |
1:36 |
Approx. Weight (kg) |
2.3 |
3.3 |
5.9 |
9.7 |
13 |
16 |
Max. Torque Output (N.M) |
1000 |
2000 |
3500 |
5500 |
7500 |
10000 |
