| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 monthss |
| Certification: | CE,CIQ,QC,SGS |
| Weight: | 2100KGS |
| Power(W): | 3.0KW |
| Voltage: | AC380V/50Hz |
| Model Number: | JX-1530R |
| Brand Name: | JIAXIN |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
Quick Details
Specifications
JIAXIN JX-1325R 4 axis CNC Router,wood CNC Router
for wood working
for wood working
|
Model
|
JX-1530
|
|
X,Y axis working area
|
1500x3000mm
|
|
Z axis working area
|
350mm
|
|
Z-axis clearance
|
200mm
|
|
Repeatability
|
+/-0.025mm
|
|
Max cutting speed
|
30m/min
|
|
Max. Traverse Speed
|
56m/min
|
|
Rapid Traverse
|
45m/min
|
|
Spindle power
|
10KW
|
|
Spindle rotating speed
|
24000rpm
|
|
Surroundings for software
|
windows XP/WIN 7/WIN 8
|
|
Command
|
G code*.u00*mmg*.plt
|
|
Work mode
|

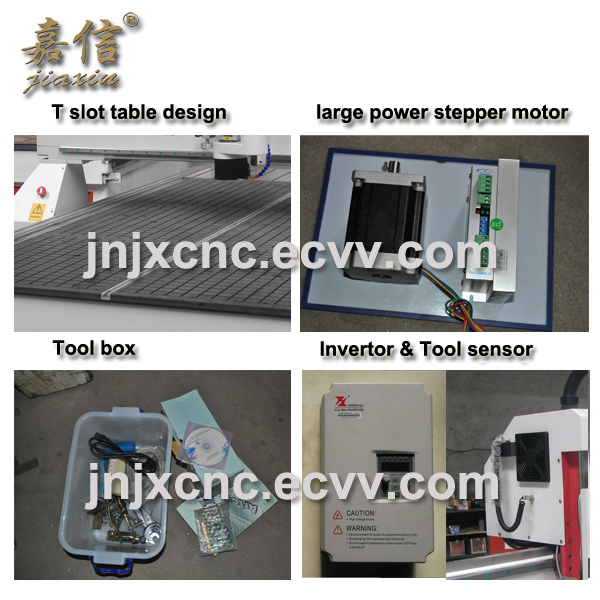

Step motor
|
|
Voltage
|
AC380V/50Hz
|
Suitable Industry
Suitable in the woodwork industry, plastics industry, insulating materials industry and non-ferrous metals industry
and so on.
and so on.
Performance Characteristics

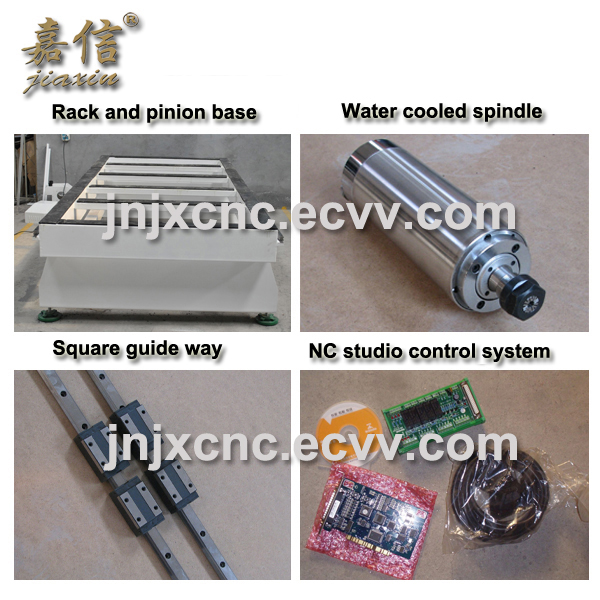

1. It adopts the high power spindle made in China. Linear square guide.
2. X.Y axis with high precision rack opinion transmission, high speed.
Z axis drive: A high-precision ball screw drive with low coefficient of sliding friction force is small, fast run smooth.
3. Table Surface: Vacuum table with 6 vacuum zones.
4. With rotary 4 axis for engraving on round square materials ,the size of the rotary according to need to arrange
it.
4. With rotary 4 axis for engraving on round square materials ,the size of the rotary according to need to arrange
it.
5. Software: compatible of all CAD/CAM ,Type 3 /Artcamsoftware.
Guarantee & aftersale service
Guarantee for one year,24-hour technical support by email or calling
User-friendly English manual and Video CD for machine using and maintaining.
Installation and debugging
1.Prepare the installation factors according to instructions, then the engineer will install and test the machine.
2. Construct according to requests in order to have installation conditions.
3.Unload the machine and strip the box.
4. Provide hoisting apparatus and multipurpose tools freely.
5.Send for technicians to install the machine with engineer from Jiaxin.
6. Finish installation and debugging within 3 days
