| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 months |
| Certification: | CE,CIQ,QC,SGS,SAI |
| Weight: | 1200KG |
| Dimension(L*W*H): | 1300*2500mm |
| Power(W): | 4.5KW |
| Voltage: | AC380V/50Hz others optional |
| Model Number: | JX-1325F |
| Brand Name: | JIAXIN |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
Quick Details
Specifications

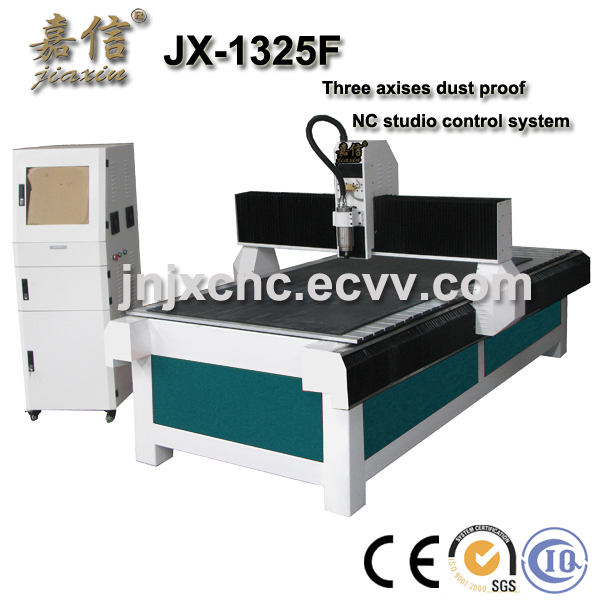

JX-1325F JIAXIN PVC Board Cutting CNC Router Machine
|
Model
|
JX-1325FB
|
|
X .Y Axis working area
|
1300X2500mm
|
|
Z-Axis working area
|
200mm
|
|
Repeatability
|
0.025(+/-mm)
|
|
Max Cutting Speed
|
20000mm/min
|
|
Rapid Traverse
|
35000mm/min
|
|
Spindle power rate
|
4.5KW
|
|
Spindle rotating speed
|
0-24000rpm
|
|
Command
|
G code*.u00*.mmg*plt
|
|
Work Mode
|
Step Motor
|
|
Power
|
AC380V/50Hz
|
Suitable Industry
Suitable for high-volume processing of non-ferrous metal sheet, Such as aluminum veneer, aluminum composite panel, copper, PVC board, acrylic, insulation materials, wood and composite panels such as sheet processing, cutting, slotting, engraving, milling, etc.
Performance Characteristics
1.Imported Linear Square Guideway, Double-line Four-row Slider, Undertake Heavy-duty, Stable operation, High precision, Long lifetime, cutting with high precision
2.Adopt DSP control system,the operation is more simple, more user-friendly design, using a unique intelligent budget law, give full play electric potential to achieve high-speed machining, curves linear synchronous, curves more perfect.
3.High-speed drive a stepper motor and driver, Y axis using a dual-motor drive, to make high-speed operation up to 25 meters above the blank line speed, with the cutting spindle can greatly enhance the carving is even more.
4.Software:compatible with type3/Artcam/Castmate / Ucancam a variety of CAD / CAM Design Software
Guarantee & after sale service
Guarantee for one year, 24-hour technical support by email or calling.
User-friendly English manual and Video CD for machine using and maintaining.
