| Dimensions: | 104*50 |
|---|---|
| Accuracy Class: | 0.2 |
| Phase: | Single Phase |
| Display Type: | Analog and Digital |
| Brand Name: | Blue Jay |
| Operating Temperature: | -40-85 |
| Model Number: | DEM-3M1C |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

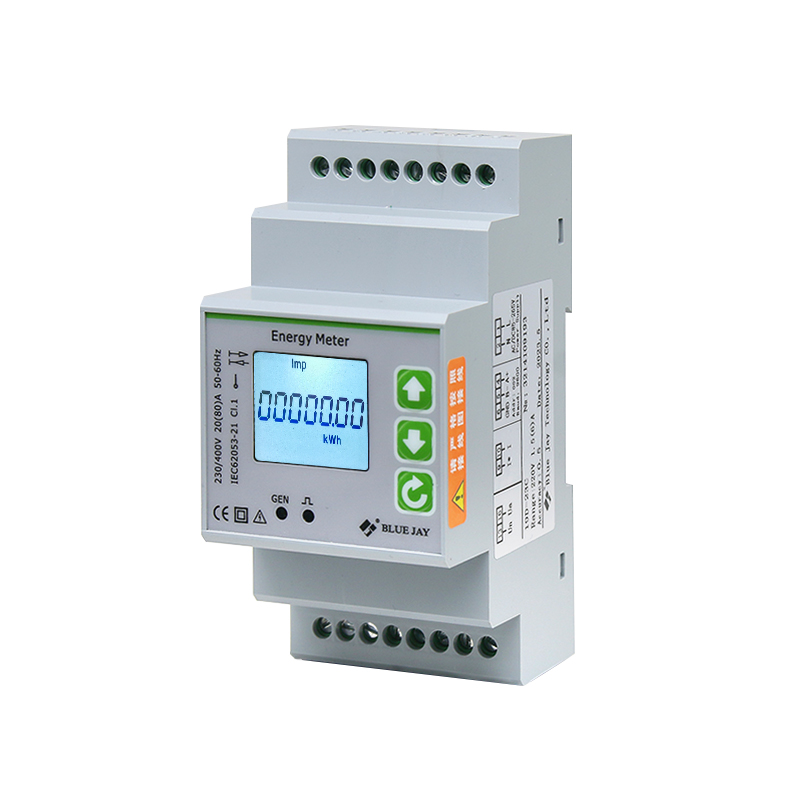

DEM-3M1C Single Phase Digital Energy Meter is a 3-module width DIN rail energy meter and uses external CT to expand the current to 999A. the DEM-3M1C CT energy meter is designed for single-phase energy measurement on a medium and low voltage system.
the Single Phase Digital Energy Meter meets the related technical requirements of electronic meters in the IEC 62053-21, IEC62053-22, and IEC 62053-23 standards. the active energy accuracy is class 0.5s. the current and voltage accuracy is 0.2%. It features high precision, small size, and simple installation.
Feature of DEM-3M1C Energy Meter
- Measuring Voltage, Current, Frequency, Total power factor, Active power, Reactive power, Active energy, reactive energy, 4-quadrant energy
- 7 digits display U, I, P, Q, PF, kWh, and other energy consumption, Power measure (999999.99kWh)
- IP40 front panel protection and IP20 casing protection
- Standard 35mm DIN rail mounting, width 3M size
- the supply voltage can range from 100 to 230V
- Pulse output kWh/kvarh
- RS485 communication Modbus RTU
- External CT 1 A or 5 A
Specification
| Voltage measurement | Rated 230V RMS value, Accuracy 0.2%, |
| Current measurement | Rated 5A, optional 1A, CT connection |
| Frequency | 50/60Hz, Accuracy ±0.01Hz |
| Display | LCD with white backlit |
| Maximum display value | 9,999,999MWh |
| Energy accuracy | Class 0.5, IEC 62053-21 |
| Digital port | RS-485 MODBUS-RTU |
| Pulse port | 1600imp/kWh |
| Working environment | -25~55°C Altitude ≤2500m, 0~95%RH, non-condensing, non-corrosive gas |
| Storage environment | -40~70°C |
| Voltage tolerance | 2KV 1min |
| Shock voltage | 6KV-1.2uS waveform |
| Insulation | Input, output, power supply to Shell >5MΩ |
