| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 months |
| Certification: | CE,CIQ,QC,SGS |
| Weight: | 1500kg |
| Dimension(L*W*H): | 1300*2500mm |
| Power(W): | 3.0KW |
| Voltage: | AC380V/50Hz |
| Model Number: | JX-1325F |
| Brand Name: | JIAXIN |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
Quick Details
Specifications

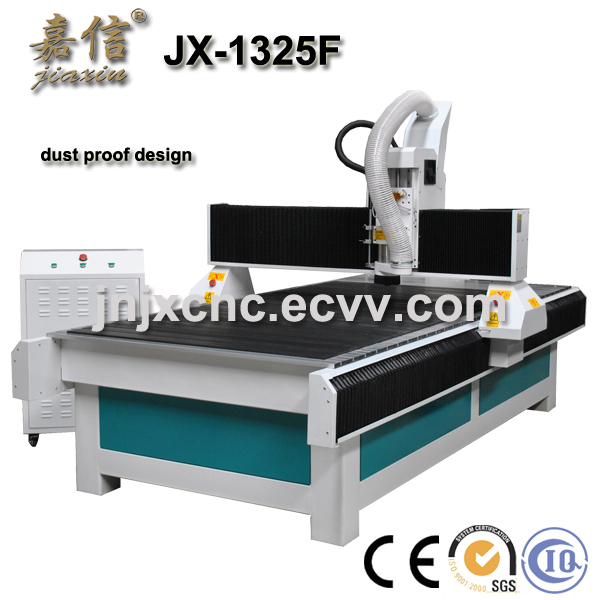

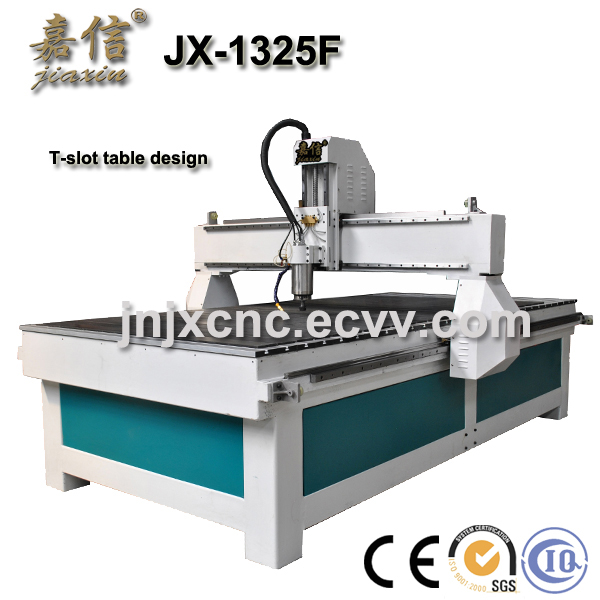

JX-1325F China cnc router machine for mdf cutting
Performance Characteristics
Package
|
Model
|
JX-1325F
|
|
X . Y Axis working area
|
1300X2500mm
|
|
Z-Axis working area
|
200mm
|
|
Repeatability
|
0.025(+/-mm)
|
|
Max Cutting Speed
|
12000mm/min
|
|
Rapid Traverse
|
20000mm/min
|
|
Spindle power rate
|
3.0KW(water-cooled)
|
|
Spindle rotating speed
|
0-24000rpm
|
|
Command
|
G code*. u00*. Mmg*plt
|
|
Work Mode
|
Step Motor
|
|
Transmission
|
Rack gear
|
|
Guide way
|
Round guide way
|
|
Control system
|
NC studio
|
|
Power
|
AC380V/50Hz
|
Suitable Industry
Suitable for high-volume processing of non-ferrous metal sheet, Such as PVC board, acrylic, insulation materials, wood and
composite panels such as sheet processing, cutting, slotting, engraving.
composite panels such as sheet processing, cutting, slotting, engraving.
Performance Characteristics
1.Imported Linear Round Guide way, Double-line Four-row Slider, Undertake Heavy-duty, Stable operation, High precision,
Long lifetime, cutting with high precision.
2.NC studio control system, the operation is more simple, more user-friendly design, using a unique intelligent budget law,
give full play electric potential to achieve high-speed machining, curves linear synchronous, curves more perfect, do not take
up computer memory and can realize the automatic start-stop cutting spindle.
3.High-speed drive a stepper motor and driver, Y axis using a dual-motor drive, to make high-speed operation up to 20 meters
above the blank line speed, with the cutting spindle can greatly enhance the carving is even more.
Long lifetime, cutting with high precision.
2.NC studio control system, the operation is more simple, more user-friendly design, using a unique intelligent budget law,
give full play electric potential to achieve high-speed machining, curves linear synchronous, curves more perfect, do not take
up computer memory and can realize the automatic start-stop cutting spindle.
3.High-speed drive a stepper motor and driver, Y axis using a dual-motor drive, to make high-speed operation up to 20 meters
above the blank line speed, with the cutting spindle can greatly enhance the carving is even more.
4. Software: compatible with Type3/Artcam/Castmate / Ucancam a variety of CAD / CAM Design Software
Guarantee & aftersales service
Guarantee for one year, 24-hour technical support by email or calling.
User-friendly English manual and Video CD for machine using and maintaining.
User-friendly English manual and Video CD for machine using and maintaining.
