| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 months |
| Certification: | CE,CIQ,QC,SGS,SAI |
| Weight: | 1500KG |
| Dimension(L*W*H): | 1300*2500mm |
| Power(W): | 5.5KW |
| Voltage: | AC380V/50Hz |
| Model Number: | JX-1325Z |
| Brand Name: | JIAXIN |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
Quick Details
Specifications
JX-1325Z JIAXIN Servo motor cnc router machine
|
Model
|
JX-1325Z
|
|
X . Y Axis working area
|
1300X2500mm
|
|
Z-Axis working area
|
200mm
|
|
Repeatability
|
0.01(+/-mm)
|
|
Max Cutting Speed
|
15000mm/min
|
|
Rapid Traverse
|
30000mm/min
|
|
Spindle power rate
|
5.5KW(air-cooled)
|
|
Spindle rotating speed
|
0-24000rpm
|
|
Command
|
G code*. u00*. Mmg*plt
|
|
Work Mode
|
Servo Motor
|
|
Power
|
AC380V/50Hz
|
Suitable Industry
Jiaxin Wood Carving Machine is suitable for high-volume processing of non-ferrous metal sheet, Such as aluminium,
copper, PVC board, acrylic, insulation materials, wood and composite panels such as sheet processing, cutting, slotting,
engraving, milling, etc.
copper, PVC board, acrylic, insulation materials, wood and composite panels such as sheet processing, cutting, slotting,
engraving, milling, etc.
Performance Characteristics

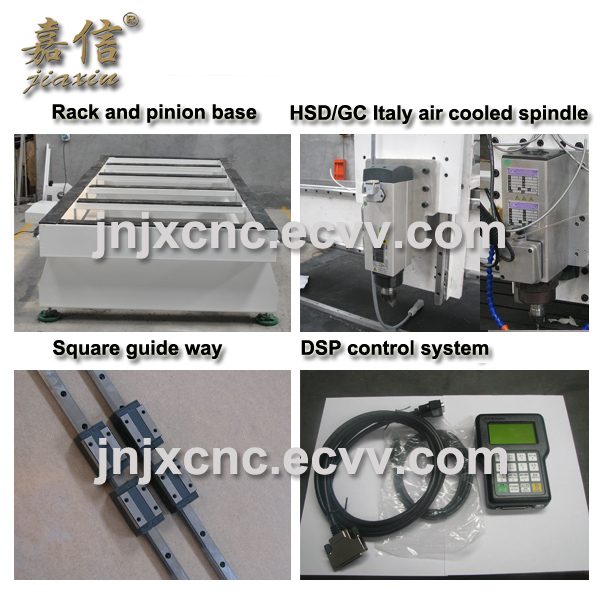

1. Imported Linear Round Guideway, Double-line Four-row Slider, Undertake Heavy-duty, Stable operation, High precision,
Long lifetime, cutting with high precision.
Long lifetime, cutting with high precision.
2. Completely easy control DSP control system, give full play electric potential to achieve high-speed machining, curves linear
synchronous, curves more perfect, do not take up computer memory and can realize the automatic start-stop cutting spindle.
synchronous, curves more perfect, do not take up computer memory and can realize the automatic start-stop cutting spindle.
3. High-speed drive a servo motor and driver, Y axis using a dual-motor drive, to make high-speed operation up to 20 meters
above the blank line speed, with the cutting spindle can greatly enhance the carving is even more.
above the blank line speed, with the cutting spindle can greatly enhance the carving is even more.
4. Software: compatible with Type3/Artcam/Castmate /Ucancam a variety of CAD / CAM Design Software
5. With the vacuum table service, it will save the workers time to fix the sheet on the table surface , and increase the
work efficiency.
work efficiency.
