Product Main

Quick Details

Brand Name: Airhorse
Lubrication Style: Lubricated
Configuration: Stationary
Type: Screw
Condition: New
Warranty: One year
Certification: ISO,CE ,ASME,UL
Weight: 1980KG
Dimension(L*W*H): 1900*1615*1730MM
Voltage: 380V
Model Number: JF-100A
Place of Origin: China (Mainland)
Mute: Yes
Power Source: AC Power
Free air delivery: 10-13.5m3/min
pressure: 7-12bar
Motor power: 75kw/100hp
Electricity: 380v/3ph/50hz(Or customized)
Size: 1540*1140*1660
Weight: 1860kg

Specifications

about our company:
We are one of the leading manufacturer in this line, and we have been in this line for over 20 years.Our products are in very high quality and the price is very competitive.
We promise to provide you the air compressor with high quality, competitive price, and good service.


---ISO 9001 and CE certified
---Global competitive price and guaranty
---High quality integrated with Germany technology
---Customer over 20countries in the world

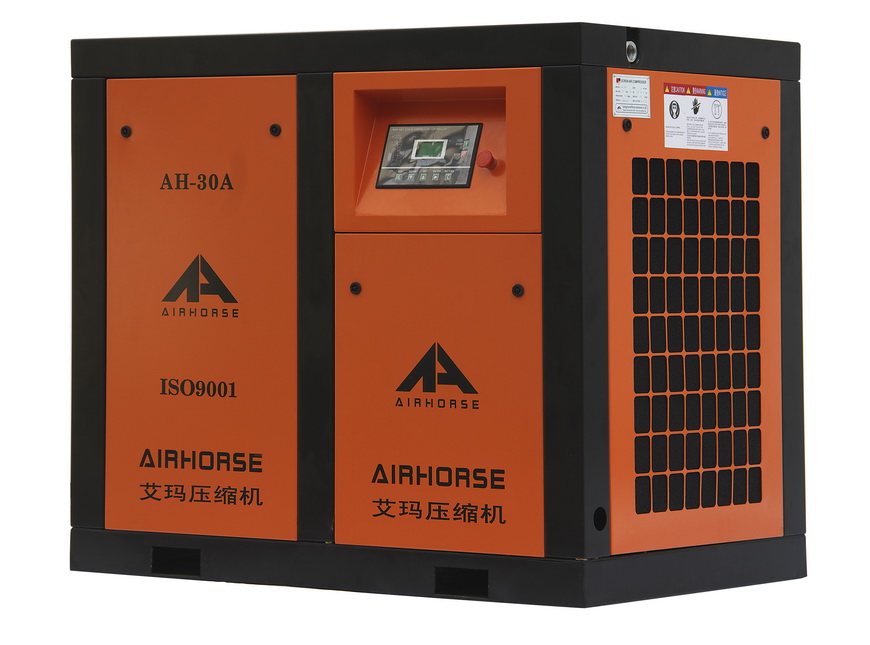

Popular Style Screw Air Compressor CE certificate 22KW250KW

Specialized in air compressor system equipment over 15years and our top quality products and satisfactory service win customers'trust.
If you would like as our agents or distributors,would you please introduce some details about you and your market.
Our corporation specialize in different type air compressor,air dryer,filters,air receivers and compressor's parts.
We can do OEM and ODM as your request color and some promotion support.

1.       Reliable quality,competitive price
2.       Good Air end,10 years manufacture experience
3.       Perfect service network
4.       Easy for installation and maitenance
5.       Low noise,Low energy consumption,Low running,Low maintenance cost.,Longer lifetime
6.       Aptitude and intelligent Control,PLC control,LCD displayer.

03:JF screw air compressor main configurations:
More than 80% of imported famous brand accessories!

Item
Parts
Brand
1
Air end
GHH/GU/Ally-Win (Germany)
2
Intake Valve
Hoerbiger (Austria)
3
Solenoid Valve
CEME (Italy)
4
Temperature sensor
Airhorse original
5
Pressure sensor
Huba original (from Switzerland)
6
Motor
Dongguan/Qingjiang Motor
7
Coupling
Germany KTR
8
Thermostat Valve
Italy VMC
9
PLC
Schneider Electric (France)
10
Minimal Pressure Valve
Hoerbiger (Austria)
11
Air filter element
Germany MANN
12
Oil filter element
Germany MANN
13
Oil separator element
Germany MANN
14
Bearing
Sweden SKF(LIFE60000hours)


Screw Air Compressor (Direct-connected)
          Model AHD-30A AHD-50A AHD-75A AHD-100A AHD-120A AHD-150A/W AHD-175A/W AHD-200W AHD-250W AHD-300W AHD-350W
Free air deliver
/Discharge pressure
 (cfm/min/Mpa)		 134/0.7
127/0.8
113/1.0
99/1.2 		 240/0.7
219/0.8
198/1.0
173/1.2		 353/0.7
322/0.8
300/1.0
269/1.2		 477/0.7
445/0.8
396/1.0
353/1.2		 569/0.7
530/0.8
488/1.0
435/1.2		 742/0.7
700/0.8
601/1.0
541/1.2		 890/0.7
848/0.8
742/1.0
647/1.2		 1014/0.7
975/0.8
869/1.0
760/1.2		 1131/0.7
1078/0.8
972/1.0
876/1.2		 1297/0.7
1219/0.8
1067/1.0
982/1.2		 1484/0.7
1431/0.8
1346/1.0
1223/1.2
No.of compression
Stage		   single stage
Ambient temperature -5--+45
Cooling model Air --Cooling Air-Cooling&Water-Cooling Water-Cooling
Discharge
Temperature  (0C)		 Ambient temperature+15
Lubricant(L) 18 30 65 90 110
Noise level(Db) 682 722 752 722
Drive method Direct
Electricity(V/ph/Hz) 380/3/50
Power(KW/HP) 22/30 37/50 55/75 75/100 90/120 110/150 132/175 150/200 185/250 220/300 250/350
Starting method Y-Starter
Dimension:
Length/width/height
(mm)		 13808501160 160010001360 210012501700 190016151730 Air-Cooling:3000 Water-Cooling:2500
Air-Cooling:1620 Water-Cooling:1620
Air-Cooling:1860 Water-Cooling:1840              		 280018001900 330019001950
Weight(kg) 680 1060 1880 1980 2100 2900 3500 3900 4200 4600 5000
Air outlet pipe
Diameter(inch/mm)		 1 1/4" 1 1/2" 2" DN65 DN80 DN100
