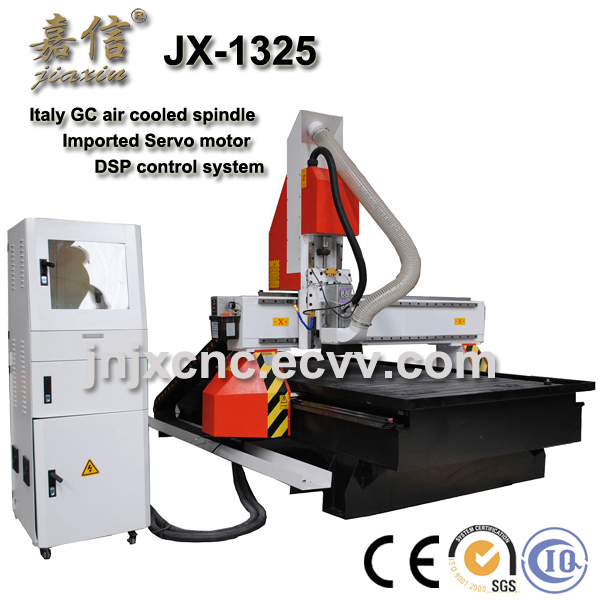

DUBAI CNC Router (1325)

Suitable Industry:

Jiaxin Wood Carving Machine is suitable for high-volume processing of non-ferrous metal sheet, Such as aluminium,
copper, PVC board, acrylic, insulation materials, wood and composite panels such as sheet processing, cutting, slotting,
engraving, milling, etc.

Performance Characteristics:

1. Imported Linear square Guide way, Double-line Four-row Slider, Undertake Heavy-duty, Stable operation, High precision,
Long lifetime, cutting with high precision.

2. Completely easy control NC studio control system, give full play electric potential to achieve high-speed machining, curves
linear synchronous, curves more perfect, do not take up computer memory and can realize the automatic start-stop cutting spindle.

3. High-speed drive servo motor and driver, Y axis using a dual-motor drive, to make high-speed operation up to 20 meters above
the blank line speed, with the cutting spindle can greatly enhance the carving is even more.

4. Software: compatible with Type3/Artcam/Castmate /Ucancam a variety of CAD / CAM Design Software

5. With the vacuum table service, it will save the workers time to fix the sheet on the table surface , and increase the work efficiency.

Model	JX-1325Z
X . Y Axis working area	1300X2500mm
Z-Axis working area	200mm
Repeatability	0.025(+/-mm)
Max Cutting Speed	15000mm/min
Rapid Traverse	30000mm/min
Spindle power rate	5.5KW(air cooled)
Spindle rotating speed	0-24000rpm
command	G code*. u00*. Mmg*plt
Work Mode	servo motor
Power	AC380V/50Hz
