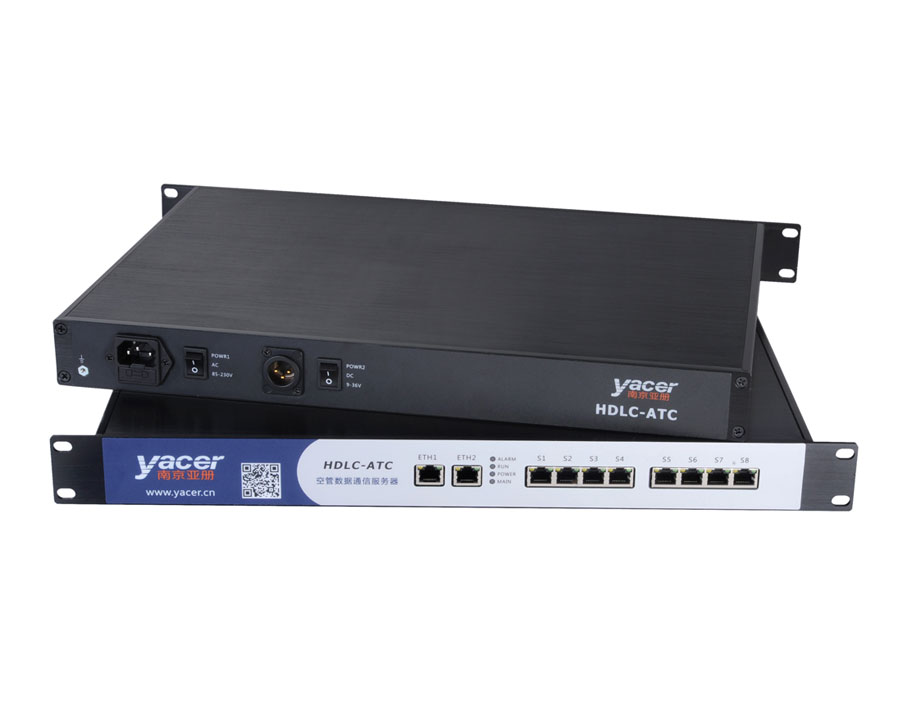

the Yacer HDLC-ATC Air Traffic data communication server, provides 2/4/8/16 synchronous/asynchronous serial ports and two 10/100MEthernet interface to convert the protocols between serial ports and Ethernet interface.
1U, 19 Inch standard rack-mountable, low power and no fan design, supporting
AC +DC power supply redundancy
Features
- Two 10/100MEthernet Interfaces, supporting Ethernet switch and dual-network
- 2/4/8/16 Synchronous serial ports and two of them supporting asynchronous serial Ports.
- 1U, 19 inch standard rack-mountable
- Supporting AC +DC power supply redundancy
- Low Power and no fan design
- Function Extension: built-in Ethernet switch and E1 interface
- Secondary Development
Applications
- Secondary Surveillance Radar (SSR), ADS-B data communication
- Air Traffic Control (ATC), Air Traffic Management (ATM)
- Air Traffic Radar data sample and playback
- Synchronous/ asynchronous serial data Transmission and convertion
- Rack type application
Technical specifications
Serial Port | |
Qty |
2 or 4 or 8 or 16 RJ-45 |
Working mode |
Synchronous HDLC, two ports also supporting asynchronous UART |
Interface type |
RS-232 Full-duplex |
Code format |
NRZ |
Baud rate |
250 Kbps |
Synchronous clock |
Normal, Master, Slave |
ESD protection |
15 KV |
Ethernet Interface | |
Qty |
2 x RJ-45 |
Function |
Supporting Ethernet switch,dual-network |
Rate |
10/100 Mbps, Auto MDI/MDI-X |
Protocol |
TCP/UDP/IP Supporting unicast/multicast/broadcast |
Programming interface |
UDP Server,UDP Client |
Optional Function | |
Ethernet |
Can choose built-in Ethernet switch |
E1 |
Can choose E1 interface |
Configuration management | |
Configuration tool |
Yacer-DMS configuration management software |
Configuration interface |
Ethernet interface |
Power Requirements | |
Power redundancy |
AC+DC redundancy,AC First |
AC voltage |
85 ~ 265 VAC |
DC voltage |
4 ~ 36 VDC |
Power consumption |
< 10 W |
Mechanic Features | |
Size |
H*W:1U*19 inch,No Fan |
Weight |
|
Working Environment | |
Operating temperature |
-10 ~ +70 |
Storage temperature |
-30 ~ +75 |
Working humidity |
30 ~ 90% RH(Non Condensing) |
Storage humidity |
10 ~ 90% RH(Non Condensing) |
Order information
Basic Model:
Model |
Serial port |
Ethernet interface |
HDLC-ATC-200 |
2 x RS-232 synchronous/asynchronous Serial ports |
2 x 10/100M |
HDLC-ATC-400 |
2 x RS-232 synchronous/asynchronous Serial ports + 2 x RS-232 synchronous serial ports |
2 x 10/100M |
HDLC-ATC-800 |
2 x RS-232 synchronous/asynchronous serial Ports + 6 x RS-232 synchronous serial ports |
2 x 10/100M |
HDLC-ATC-1200 |
2 x RS-232 synchronous/asynchronous Serial ports + 10 x RS-232 synchronous serial ports |
2 x 10/100M |
HDLC-ATC-1600 |
2 x RS-232 synchronous/asynchronous Serial ports + 14 x RS-232 synchronous serial ports |
2 x 10/100M |
Optional function:
Number |
Suffix |
Function |
1 |
-S1 |
Extend 8 port industry Ethernet switch |
2 |
-E1 |
Extend E1 interface |
3 |
-AA |
Two AC power redundancy |
Example:
HDLC-ATC-800: 8 serial ports, no optional function.
HDLC-ATC-800-S1-AA: 8 serial ports+ industry Ethernet switch+ Two AC power redundancy.
