Product Introduction
VT-EX USB2.0 Series is the latest developed HD digital camera by Contrastech, which follows the Industrial high speed USB bus standard. It is the best choice for cost performance. Ultra-small design greatly enhances the controllability and connection of installation space, and maintenance is more quick and simple.

Our company fully accepts secondary development and provides powerful secondary development function library which includes VC, VB, C# and supports Dshow. the advanced control function of the product can be done by SDK function library. Meanwhile, you will fast integrate the product in your OEM systems by following sample application provided by Contrastech.

Hangzhou Contrastech Co., Ltd series camera conforms to TWAIN requirements and supports TWAIN commercial application, such as ACDSee, Photoshop, IPP, Kodaking, Image etc., which all could use the equipment for image capture.

VT Series supports various famous picture processing and measure-control software, including Labview of USA NI company, MIL and Matlab of Canada Matrox company.

Model Explanation

Model	EX360MS EX360CS EX360MS(NIR)	EX130MS	EX300CS	EX500MS EX500CS
Resolution (H x V)	752480	12801024	20481536	25921944
Sensor Type	Global CMOS	Rolling CMOS	Rolling CMOS	Rolling CMOS
Format	1/3"	1/2"	1/2"	1/2.5"
Pixel Size(m)	6.06.0	5.25.2	3.23.2	2.22.2
Dynamic Range	>80dB-100dB HDR	68.2dB	61dB	71dB
Maximum Frame Rate	60fps	15fps	6fps	5fps
Color Category	Mono/Color/NIR	Mono	Color	Mono/Color
Output Interface	USB2.0
Exposure Mode	Global Exposure	Rolling Exposure
Sensitivity(550nm)	4.8V/lux-sec	2.1V/lux-sec	1.0V/lux-sec	1.4V/lux-sec
Lens Mount	Standard C-mount
Power Input	USB(2.5w)
Hardware Control	I/O input (external trigger)
Programmable Control	Image Resolution, GRB gain, Exposure Time, Contrast, Gamma Chart, Image Rollover, RAW
Operating System	Windows 2000/XP/Vista/7/8/10

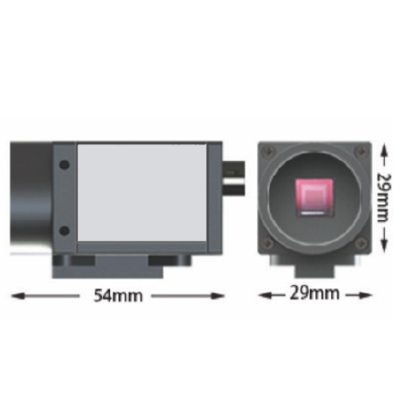

Dimension	54.2 mm 29.0 mm 29.0 mm

Model	EX120MPGS EX120CPGS	EX120CPS	EX130MPS	EX300CPS	EX500MPS EX500CPS	EX1400CPS
Resolution(hxv)	1280960	1280960	12801024	20481536	25921944	46083288
Sensor Type	Global CMOS	Rolling CMOS
Format	1/3"	1/3"	1/2"	1/2"	1/2.5"	1/2.5"
Pixel Size(m)	3.753.75	3.753.75	5.25.2	3.23.2	2.22.2	1.41.4
Dynamic Range	>115dB HDR	>115dB HDR	68.2dB	61dB	71dB	65.2dB
Maximum Frame Rate	30fps	30fps	30fps	12fps	8fps	3fps
Color Category	Mono/Color	Color	Mono	Color	Mono/Color	Color
Output Interface	USB2.0
Exposure Mode	Global Exposure	Rolling Exposure
Sensitivity(550nm)	5.48V/lux-sec	5.48V/lux-sec	2.1V/lux-sec	1.0V/lux-sec	1.4V/lux-sec	0.7V/lux-sec
Lens Mount	Standard C-mount
Power Input	USB (2.5w)
Hardware Control	I/O input (external trigger), I/O output, Opto-couplers Isolation
Programmable Control	Image Resolution, GRB gain, Exposure Time, Contrast, Gamma Chart, Image Rollover, RAW
Operating System	Windows 2000/XP/Vista/7/8/10
Dimension	54.2 mm 29.0 mm 29.0 mm

Applications

1. Semiconductor& Component Inspection

2. Manufacturing quality control

3. Food & Drink Inspection

4. Intelligent Transportation System

5. Microscope and MEdical IMaging
