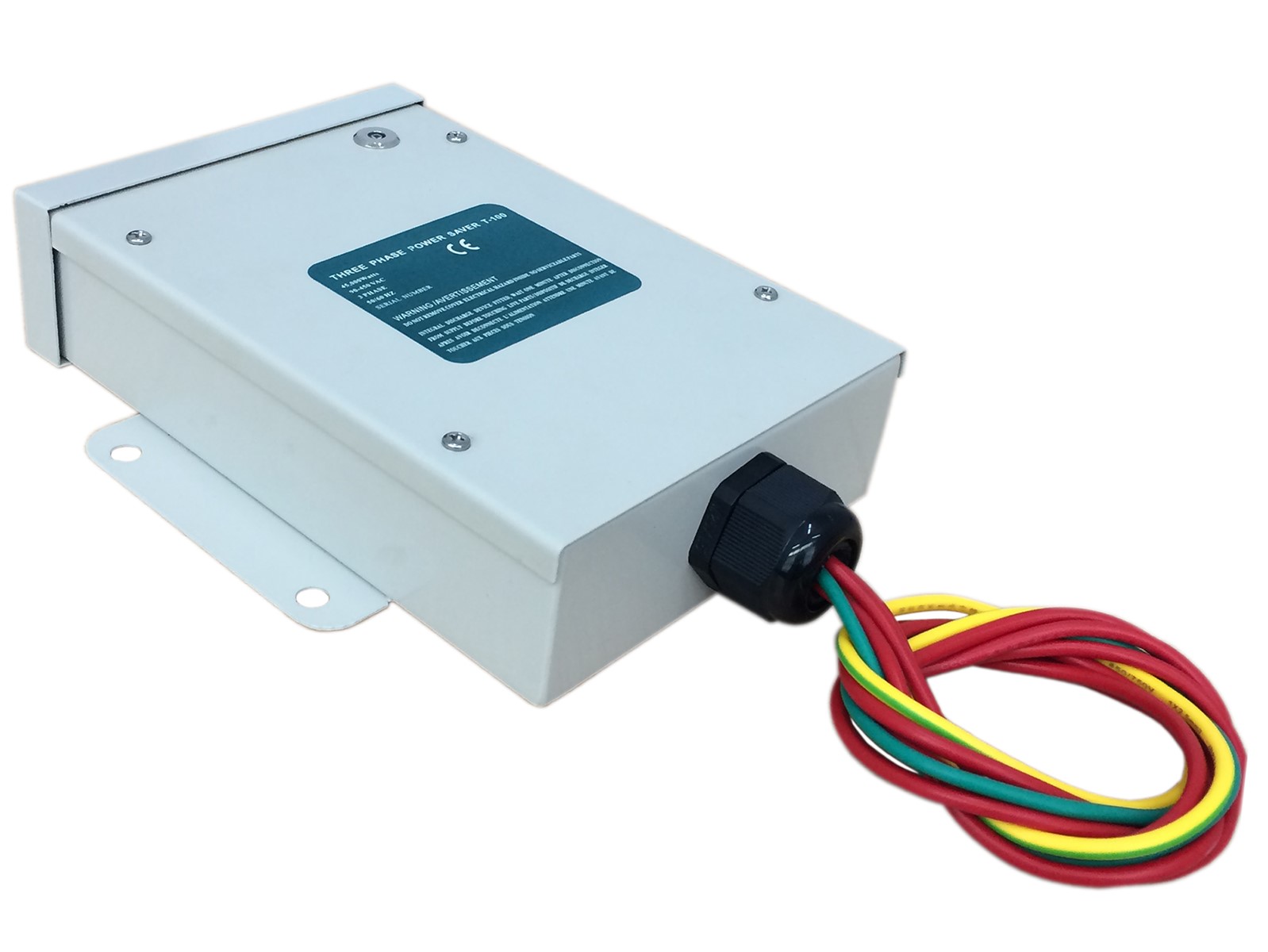

Factory Supply Three Phase Power Saver with Metal Housing T-100
Work Principle of our Power Saver
All motors require a certain amount of reactive power (non-working power) from the utility to create the Electro-Magnetic-Field (EMF) around the motor to make it work. the problem is that your local utility delivers that reactive power to your home without knowing how much you really need. Your inductive load (motors) then uses what it needs and sends the rest back to your electric panel where it is "lost" - dispersed in heat never to be seen again. The problem with this equation is that you have paid for the lost electricity, because it's traveled through your meter and been measured.
this Power Saver stores the reactive power (non-working power) that would be otherwise lost. this allows your inductive motor load to push in and pull from the Power Saver using the stored power, instead of asking for more from the utility. this process decreases your demand from the utility thereby decreasing your Kwh usage and lowering your bill each month!
Applicable Area of the Power Saver
Commercial and industrial areas with three phase inductive load, or household with three phase inductive load.
Functions and features of the Power Saver
Reduce electricity requirmed by existing inductive loads
Enhances capacity of existing electrical system
Eliminates danger of harmful power surges on applicances and sensitive electronic equipment
Reduces harmful effects caused by electrical noise in the electrical system
Electrical noise reduction
Power factor optimization
Voltage regulation
how to Use the Power Saver
the installation has to be made by a professional or a qualified technician. Do not modify, open or repair the device by yourself.
Turn off the electricity supply during installation. Follow the hardwires connection diagram.
Caution
1. Properly wired to avoid wrong contacts and cabling errors.
2. Fixed to the wall to prevent from moving.
3. Place the power saver in safe environment, far from inflammable gas
Sources, in a dry place and protected from sun rays.
Technical DAta of the Power Saver
1. Rated Voltage: 380V-450V, 50HZ / 60 HZ
2. Working Temperature: -15 degrees to 60 degrees
3. Utilizes self-healing low loss capacitors
4. 20 year design year
5. Typical protection for: Electrical storms, lighting activity and power utility spike
6.Let through voltage 150V line-to-neutral
7.Load rating 32A (this means it discharges up to 32amp at a time)
8. Six-way electrical protection
9.EMI/RFI noise reduction O-40dB
Three phase unit T-100 sizes fractional motors up to 45kw
Saving electricity means saving money, saving money means earning money!
