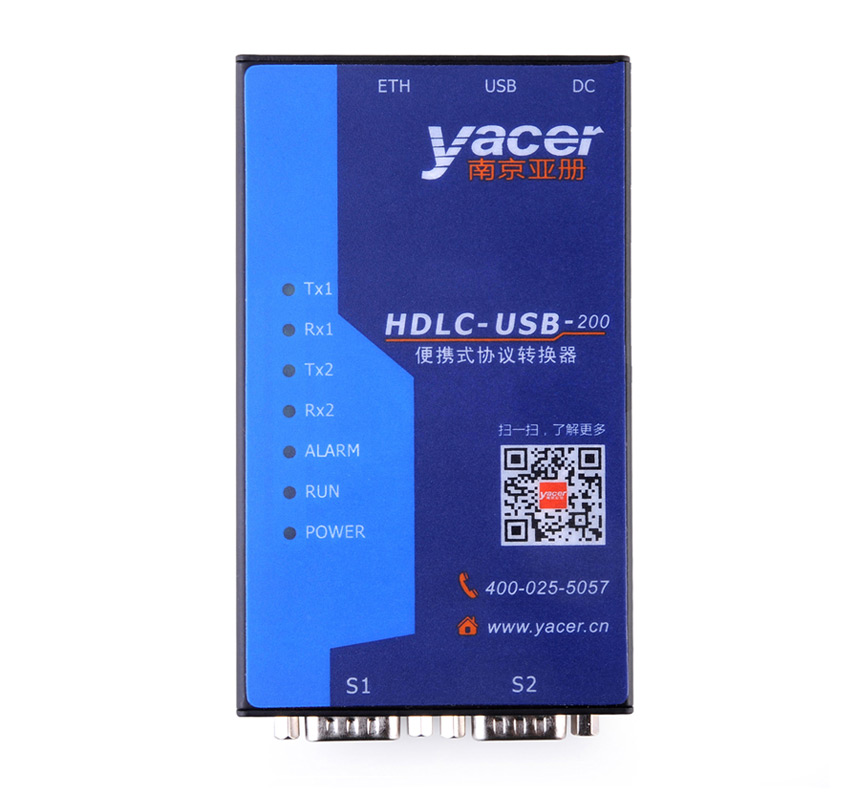

HDLC-USB Portable Protocol Converter
the HDLC-USB
Protocol converter provides two multi-protocol synchronous/asynchronous serial
Ports and one 10/100MEthernet
Interface to convert the protocols between serial ports and Ethernet interface.
Features
- One 10/100MEthernet interface
- Two multi-protocol synchronous/asynchronous serial ports
- RS-232, RS-422, RS-485
- Full-duplex, Half-duplex
- HDLC, TCMS, UART, BIT stream
- USB bus power
- Industry-grade Temperature
- Thin, Smart, portable
Applications
- Train Control and Management System (TCMS)
- Secondary Surveillance Radar (SSR), ADS-B data communication
- Air Traffic Management (ATM)
- Air Traffic Control (ATC)
- Measurement and control data collection
- Portable Application
- Embedded Application
Order information
Model |
Serial port |
Ethernet interface |
HDLC-USB-200 |
2*RS-232/422/485 Synchronous/asynchronous serial ports |
1*10/100M |
Technical Specifications
Serial port | |
Interface |
2*D-Sub 9(male) |
Working mode |
SynchronousHDLC,TCMS-HDLC, asynchronousUART, synchronous BIT stream |
Interface type |
RS-232,RS-422/485 Full-duplex, RS-485 Half-duplex |
Code format |
NRZ,NRZI |
Baud rate |
125 Kbps |
HDLCFrame length |
1470Bytes |
Synchronous clock |
Normal, Master, Slave |
ESDProtection |
15 KV |
Ethernet Interface | |
Interface |
1*RJ45 |
Speed |
10/100 Mbps,Auto MDI/MDI-X |
Protocol |
UDP Server/UDP Client, Supporting unicast/multicast/broadcast |
USBInterface | |
Interface |
1*USB type-B, only for Power supply |
Configuration Management |
|
Configuration tool |
Yacer-DMS configuration management software |
Configuration interface |
Ethernet Port |
Power Requirements | |
Input voltage |
+5V DC |
Power consumption |
<2W |
Power interface |
USB interface DC-5.5-2.5mmInterface |
Mechanical Features | |
Size |
H*W*D:21.5*73*123 (mm) |
Weight |
200g |
Working Environment | |
Operating temperature |
-40 - +85C |
Storage temperature |
-40 - +85C |
Operating Humidity |
5 - 95% RH (non condensing) |
