| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ISO9001:2008 |
| Weight: | 15kg |
| Brand Name: | Shengda |
| Condition: | New |
| Model Number: | SD LPF 35 |
| Place of Origin: | China (Mainland) |
| Structure: | Cartridge |
| Type: | |
| Replacement brand: | Hydac |
| Certificate: | ISO 9001 |
| Flow: | Up to 280 L/min |
| Material of filter element: | BN/HC; W/HC |
| Element precision: | 3, 5,10, 20, 25, 100, 200 micron |
Quick Details
Specifications

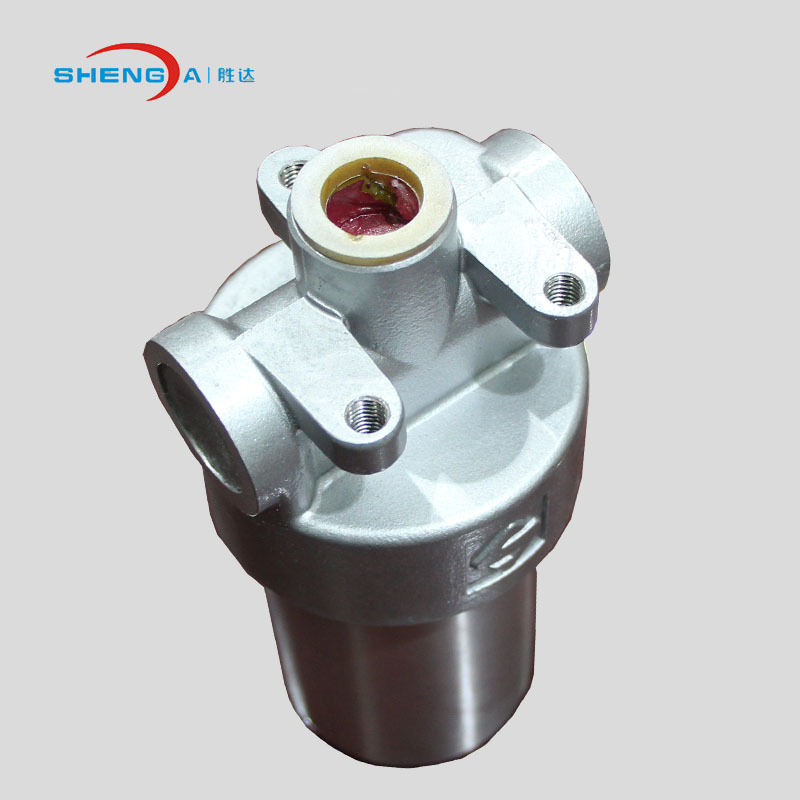

Low Pressure INline Oil Filter
A. Construction:
THe low pressure oil filter consists of a filter head and a screw-in filter bowl( LPF35 and 50) or the filter bowl is fixed to the filter head with a retaining nut( LPF 160,240,280)
B. Standard equipment:
without bypass valve
Connection for a clogging indicator
C. Filter Material
It can be made of BN4HC, AM, BN/AM, paper, stainless steel metal net and stainless steel metal fibre.
We also can provide other kind of material if you required.
D. Technical specifications:
| Nominal pressure | SD LPF35,55: 40 bar SD LPF160,240 1280: 25 or 50 bar |
| Fatigue strength | at nominal pressure 106Load cycles from 0 to norminal pressure
SD LPF35 and 55: 107Load cycles at 40 bar |
| Temperature range | -30 to +100 centigrade |
| Material of filter head | Aluminium |
| Material of filter bowl | SD LPF35,55: aluminium
SD LPF 160,240, 280: steel |
| Material of retaining nut(SD LPF 160,240,280) | Aluminium( 25 bar) Steel( 50 bar) |
| Type of clogging indicator | VM( differential pressure indicator up to 210 bar operation pressure) |
| Pressure setting of clogging indicator | 5 bar ( others on request) |
| Cracking pressure of bypass valve( optional) | on request |
| Mounting | as inline filter |
| Seals | NBR =(Perbunan) |
E. Application
It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.
F. Photos
