| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ISO9001:2008 |
| Weight: | 10kg |
| Brand Name: | Shengda |
| Condition: | New |
| Model Number: | SD DFZ |
| Place of Origin: | China (Mainland) |
| working pressure: | 315 bar |
| replacement brand: | hydac |
| certificate: | ISO 9001 |
| seals: | NBR |
| material of filter: | steel |
| material of element: | BH/HC; V |
| type of clogging indicator: | visual/ electric/ visual and electric |
Quick Details
Specifications

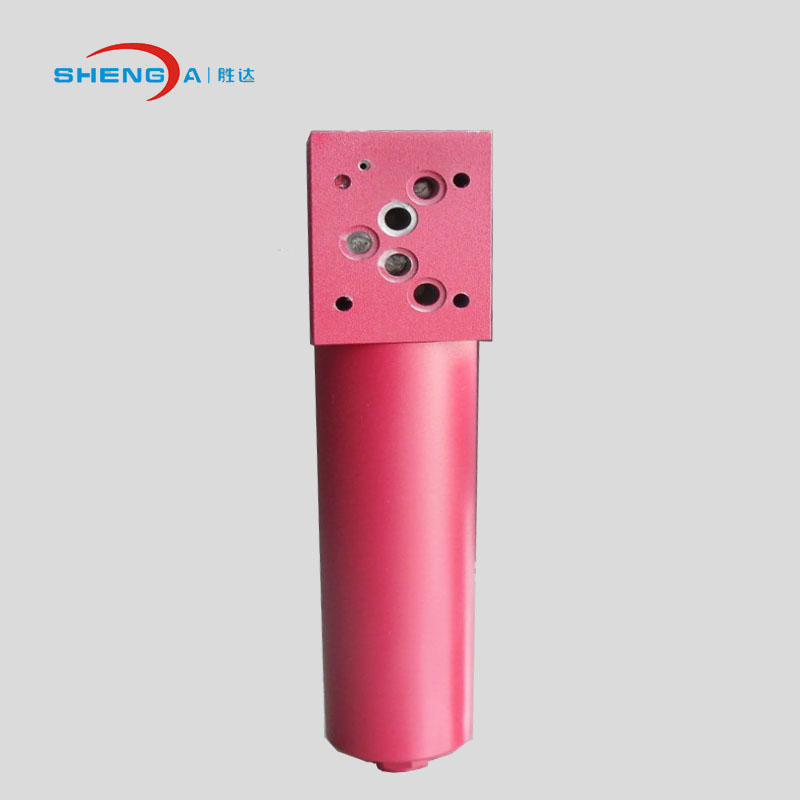

High PressuRe Inline Oil Filter Housing Steel
FILTER HOUSING
Construction
the filter housings are designedin accordance with internationalRegulations.
They consist of a filterHead with a screw-in filter bowl.
Standard equipment:
Service access on the right;
without clogging indicator
FILTER SPECIFICATIONS
| Nominal pressure | 315 bar |
| Fatigue strength | at nominal pressure 106 load cyclesfrom 0 to nominal pressure |
| Temperature range | -30 up to +100 centigrade |
| Material of filter head | Steel |
| Material of filter bowl | Steel |
| Type of clogging indicator |
VD (differential pressure indication up |
| Setting pressure of clogging indicator |
8 bar (others on request)
|
| Mounting |
as pressure filter for sandwich stacking
|
Application
It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids
