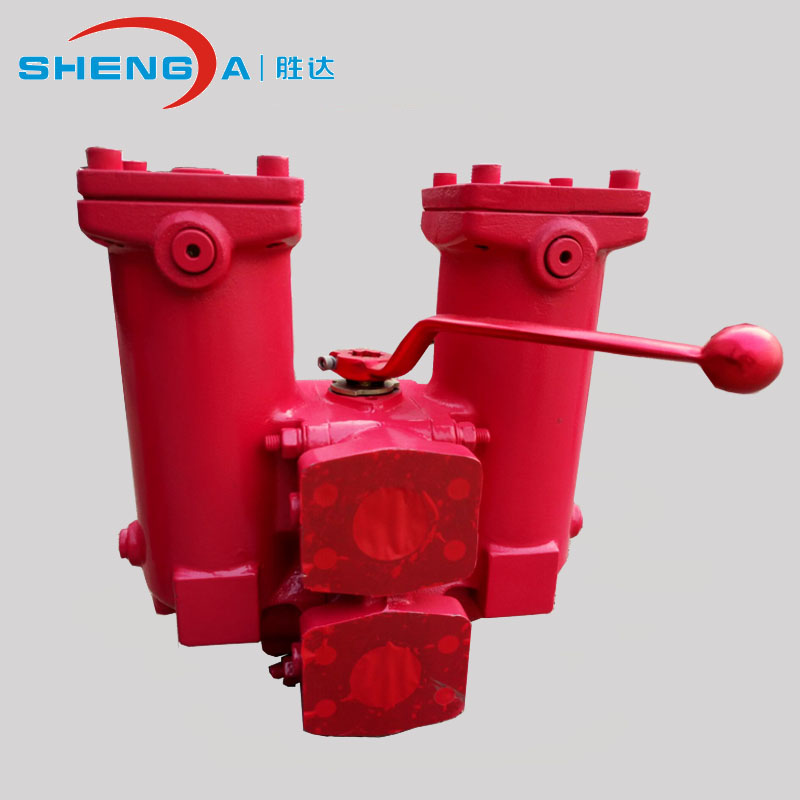

• Filter Housing Construction
• the filter housings are designed in accordance with international regulations.
• the two sections of the filter housing, each of which has a bolt-on cover plate, are connected by means of ball change-over valve.



• Standard equipment:
• Connections for venting and draining
• Connection for a clogging indicator
• for size DN 80 and above, the filters are fitted with a pressure equalisation line and a ball shut-off valve
• with bypass valve



• Filter Elements
• Filter elements are validated and their quality is constantly monitored according to ISO9001:2008 standards.

Filter Specification

Nominal pressure	16 bar (SD RFLD 2701) 25 bar( SD RFLD 331-1321,853) 40 bar (SD RFLD 111-241, 503, 662-1322) 64 bar (SD RFLD 332-502)
Temperature range	-10~+100 centigrade
Material of filter housing and cover plate Material code( final digit of filter size)	EN-GJS-400-15: =1 EN-GJS-400-18LT: = only RFLD 2701 GP 240 GH+N: = 2 Stainless steel 1.4581: =3
Type of clogging indicator	VM(differential pressure measurement up to 210 bar operating pressure)
Pressure setting of the clogging indicator	2 bar ( others on request)
Bypass cracking pressure	3 bar ( others on request)
Seals	NBR ( =Perbunan)
Mounting	as inline filter



Type of clogging indicator

A. Plastic blanking plug in clogging indicator port

B. Steel blanking plug in clogging indicator port

C. Visual clogging indicator

D. Electrical clogging indicator

E. Visual and electrical clogging indicator
