| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | CE,ISO |
| Weight: | 1300kgs |
| Dimension(L*W*H): | 3220*2120*1870mm |
| Voltage: | 380V |
| Model Number: | K60MT |
| Brand Name: | Quick |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| Structure: | Cast Steel |

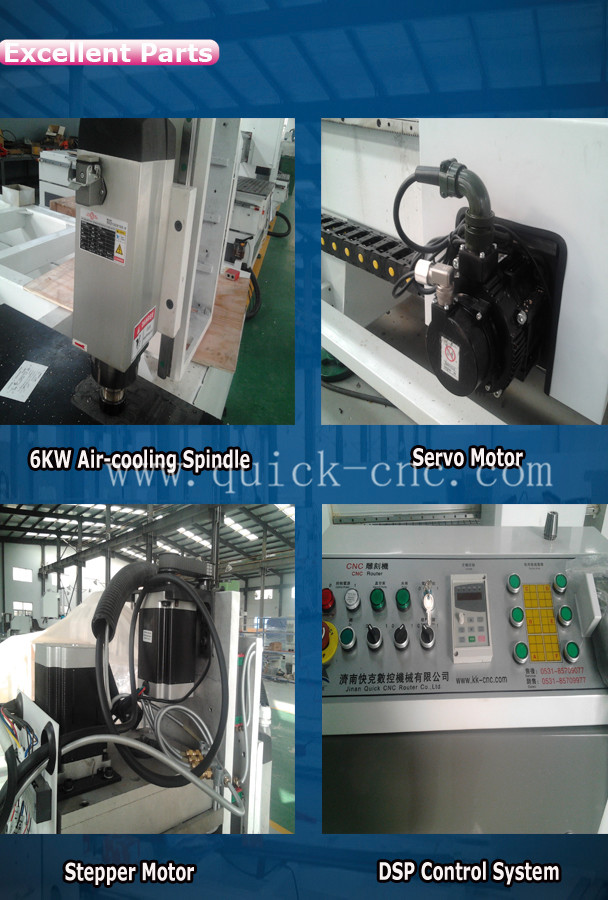

| Spindle: | 6.0kw air-cooling |
| Control: | DSP0501 |
| Servo Motor: | Yaskawa |

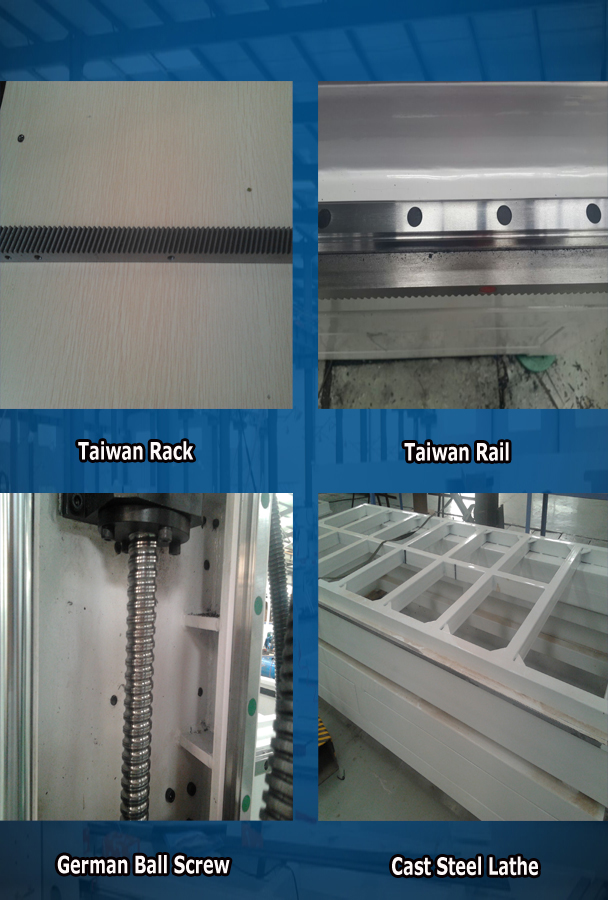

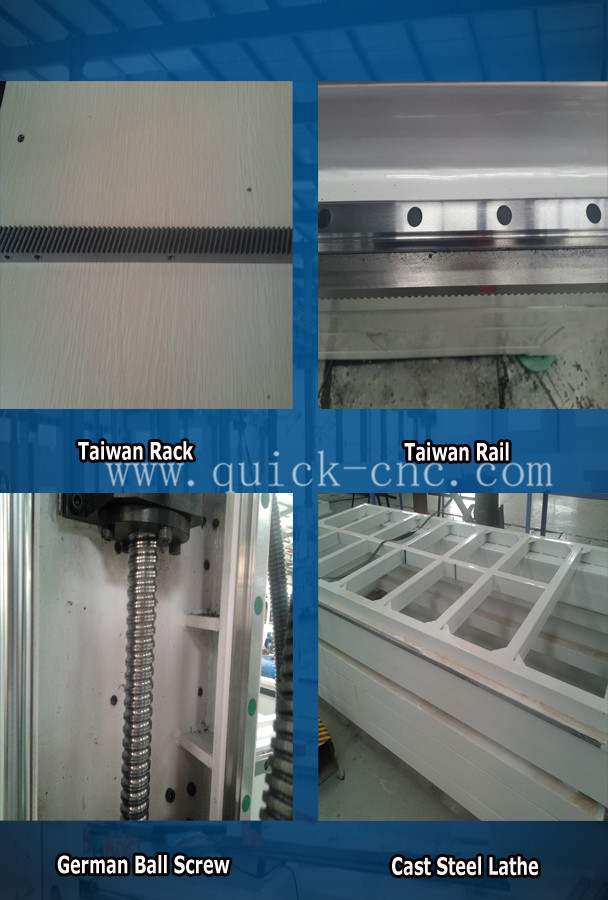

| Rack: | PMI |
| Rail: | PMI |
| Ball Screw: | Germany |
Quick Details
Specifications
2014 New CNC Router (K60MT)
Technical Parameter:
Technical Parameter:
|
CNC Machine Model
|
K60MT
|
|
X-Y-Z axis working area
|
1,300 x 2,550 x 200mm
|
|
Machine size
|
2,150 x 3,200mm
|
|
Resolutions
|
0.0025mm
|
|
X-Y movement
|
Rack and pinion, gear drive/Taiwan
|
|
Z movement
|
Ball screw drive/Germany
|
|
Guide
|
Linear ￠30 square/Taiwan
|
|
Max. speed
|
35,000mm/min
|
|
Max. cutting speed
|
25,000mm/min
|
|
Spindle power
|
6kw(wind cooling) /Italy
|
|
Spindle speed
|
18,000rpm
|
|
Inverter power
|
11kw
|
|
Drive motors
|
stepper
|
|
Working voltage
|
AC380V/50-60Hz, 3-phase
|
|
Command code
|
G code
|
|
Computer interface
|
USB 2.0
|
|
Collet
|
ER32-12.7mm,6mm,3.175mm
|
|
Software
|
Type3 Software/France
|
|
Controls
|
DSP0501 (Digital Signal Processor)
|
|
Packing dimensions
|
2260 x 3350 x 2180mm,2200kgs
|
|

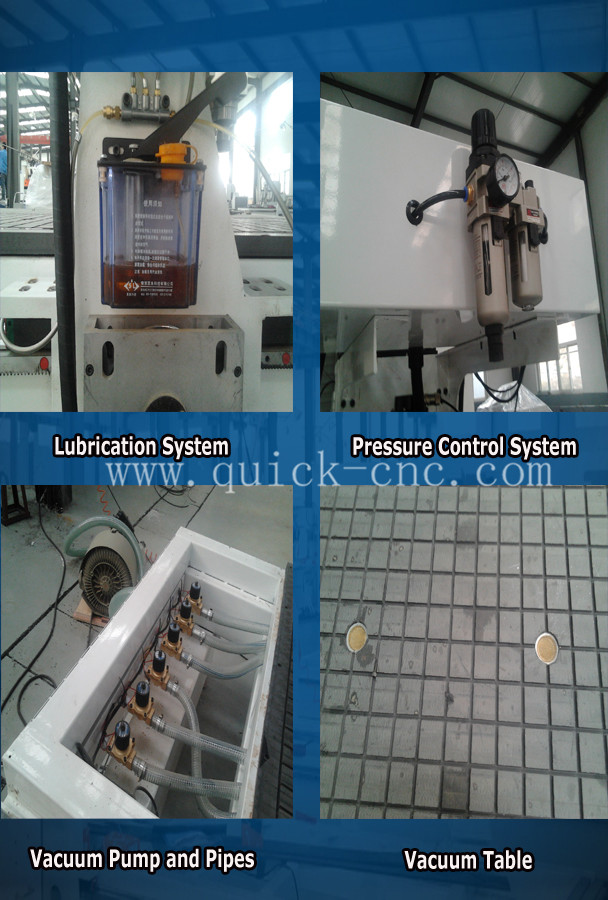

Equipment available
|
a.Vacuum hold down
b.Auto cut adjusting device
c.Oil lubrication system
|
