| Place of Origin: | China (Mainland) |
|---|---|
| Section Shape: | Round |
| Outer Diameter: | 1-1000 mm |
| Thickness: | 1-100 mm |
Quick Details
Specifications
schedule 40 carbon seamless steel pipe
Seamles
s steel pipe ASTM A106 Gr.B
1.Material: ASTM A106 Gr.B,20#
Dimension:
Outer diameter:1/8"-46"
Thickness:0.068"-2.343"
Length:5800mm,6000mm,or according to your requirements
3.Mechanical properties
|
standard |
grade |
Tensile strength(MPA) |
yield strength(MPA) |
|
ASTM A106 |
A |
≥330 |
≥205 |
|
B |
≥415 |
≥240 |
|
|
C |
≥485 |
≥275 |
Chemical ingredients
|
standard |
grade |
Chemical ingredients |
|
||||||||
|
C |
Si |
Mn |
P |
S |
Cr |
Mo |
Cu |
Ni |
V |
||
|
ASTM A106 |
A |
≤0.25 |
≥0.10 |
0.27~0.93 |
≤0.035 |
≤0.035 |
≤0.40 |
≤0.15 |
≤0.40 |
≤0.40 |
≤0.08 |
|
B |
≤0.30 |
≥0.10 |
0.29~1.06 |
≤0.035 |
≤0.035 |
≤0.40 |
≤0.15 |
≤0.40 |
≤0.40 |
≤0.08 |
|
|
C |
≤0.35 |
≥0.10 |
0.29~1.06 |
≤0.35 |
≤0.35 |
≤0.40 |
≤0.15 |
≤0.40 |
≤0.40 |
≤0.08 |
|
4.Surface finish:black annealed/bright annealed/pickling/manual polish/mechanical polish.
5.End:Plain end,beveled end(more than 2inch),with cap.
6.Usage:Petroleum,chemical,gas,metallurgy,shipbuilding,construction,automobile etc

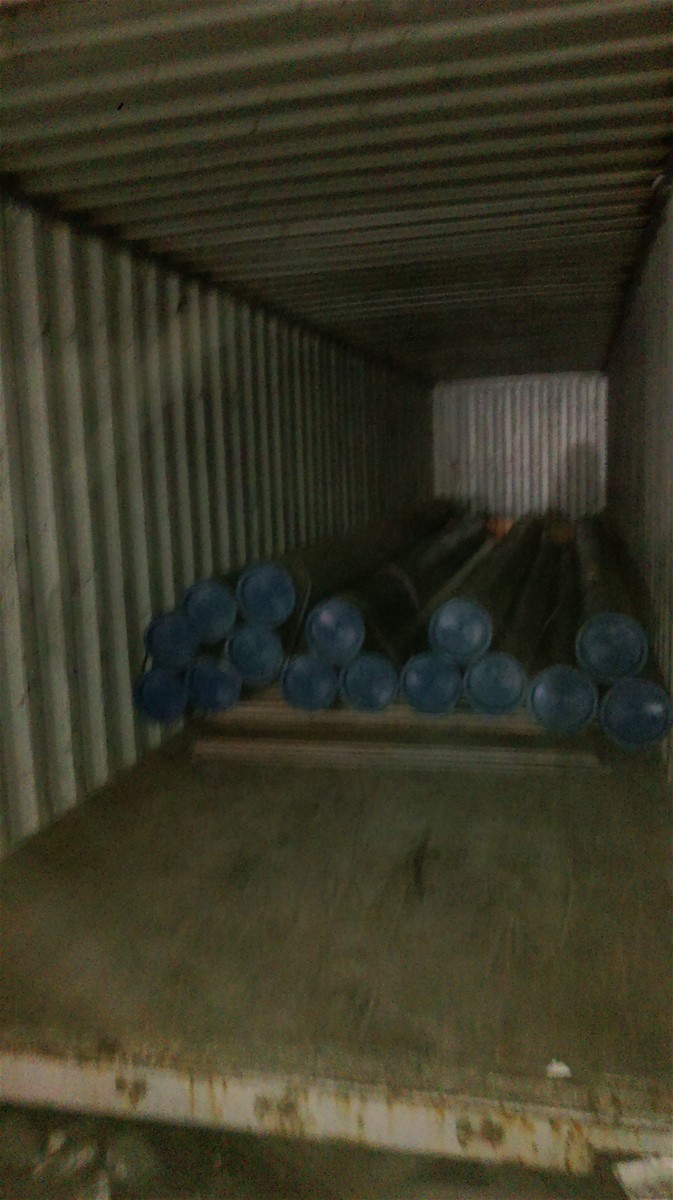

7.Package Details:
1).Packing:in bundles warped with steel strips/ use bulk vessel or container or as per customers requirement.
2).Length less than 6m can use 20#container,length from 6m to 12m can use 40#container,if big quantity and length more than 12m,it's better to use bulk.
8. Here are some sizes for your reference:
|
Pipe size |
SCHED NO. |
O.D. IN. |
THICKNESS IN. |
|
1/8 |
40 |
0.405 |
0.068 |
|
1/4 |
40 |
0.540 |
0.088 |
|
3/8 |
40 |
0.675 |
0.091 |
|
1/2 |
40 |
0.840 |
0.109 |
|
3/4 |
40 |
1.050 |
0.113 |
|
1 |
40 |
1.315 |
0.133 |
|
11/4 |
40 |
1.660 |
0.140 |
|
11/2 |
40 |
1.900 |
0.145 |
|
2 |
40 |
2.375 |
0.154 |
|
21/2 |
40 |
2.875 |
0.203 |
|
3 |
40 |
3.500 |
0.216 |
|
31/2 |
40 |
4.000 |
0.226 |
|
4 |
40 |
4.500 |
0.237 |
|
5 |
40 |
5.563 |
0.258 |
|
6 |
40 |
6.625 |
0.280 |
|
8 |
40 |
8.625 |
0.322 |
|
10 |
40 |
10.750 |
0.365 |
|
12 |
40 |
12.750 |
0.406 |
|
14 |
40 |
14 |
0.438 |
|
16 |
40 |
16 |
0.500 |
|
18 |
40 |
18 |
0.562 |
|
20 |
10 |
20 |
0.250 |
|
24 |
10 |
24 |
0.250 |
