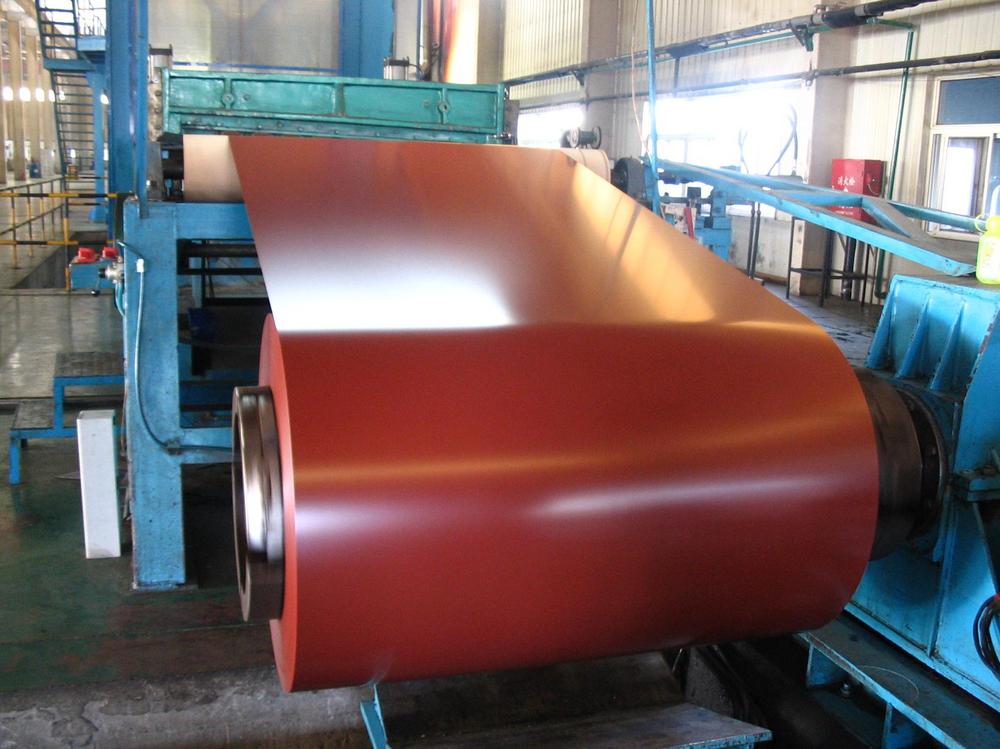

Prepainted steel coil PPGI
1.Operate Standard:AISI,DIN,GB,JIS

2.Grade:PPGI,CCGI,SPCC

3.Thickness:0.16mm-0.80mm

4.Width:1000-1250mm(common:1000mm)

5.Coil ID:508mm/610mm

Color coated steel coil(sheet), i.e. PPGI, also called pre painted steel coils(sheets), are made of galvanized steel coils(sheets) with polymer coatings as surface.

Product details

1.Operate Standard:AISI,DIN,GB,JIS

2.Grade:PPGI,CCGI,SPCC

3.Thickness:0.16mm-0.80mm

4.Width:1000-1250mm(common:1000mm)

5.Coil ID:508mm/610mm

6.Color:all RAL (common:sea blue, white grey and bright red)

7.Paint material:Normal polyester(PE,Epoxy)

8.Thickness of top coating:20-25um,Thickness of back coating:7-10um

9.Coil Weight:3-10MT

Payment & Shipping Terms

1.Minimum Order Quantity: 10 Metric Ton/Metric Tons

2.Packaging Details:eye bands and 4 circumferential bands in steel, galvanized metal fluted rings on inner and outer edges, galvanized

3.Delivery Time: within one month after sign the contact

4.Payment Terms: L/C,T/T

5.Supply Ability: 10000 Metric Ton/Metric Tons per month



Production Process

Pretreatment(Degreasing)—Drying—Chromating—Paint Basic Oil—Cooling—Drying—Color Coating—Cooling—Film-covering—Rolling up



Usage

Nowadays, it has become the most perfect building material in construction (sandwich panel, roofing tile), transportation, manufacture, light industry, office furniture, household electric appliances, food package, and other areas all over the world.
